Aerpro CHMZ14C Steering Wheel Control Interface Suit Mazda BT50

Designed to Connect Directly to the Existing Wiring in the Vehicle With Ease!

Steering Wheel Control Interface (SWC)

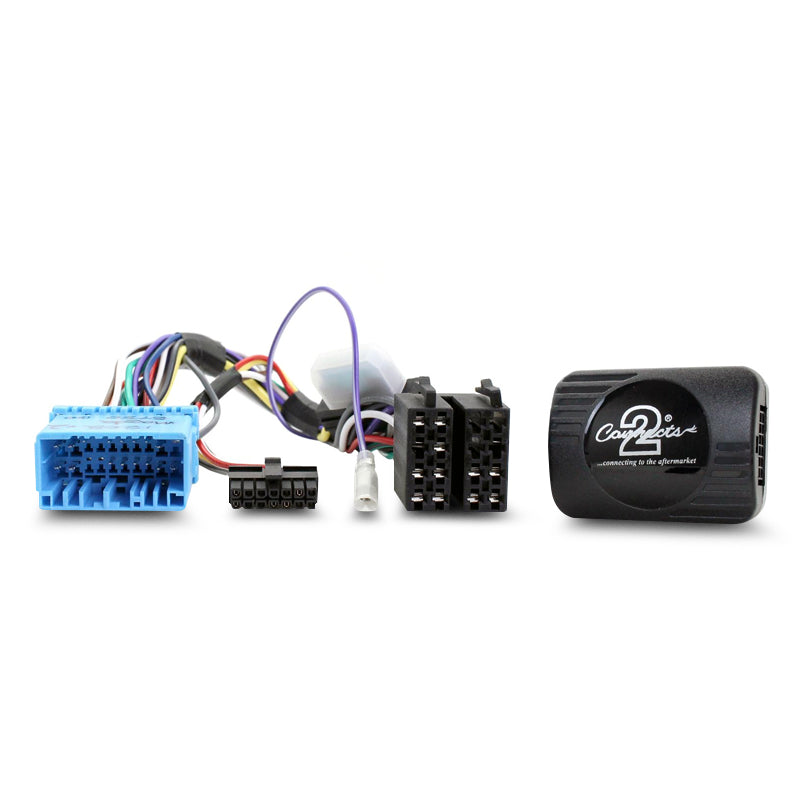

The Aerpro CHMZ14C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls. Engineered to suit Mazda BT-50 GT XR (2015-2017) models, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface also provides a reverse trigger output.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
• The aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.

Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls.
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road.
• Provides an output feed for the reverse trigger.
• Fitted with a vehicle-specific plug, no cutting of wires is required.
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately)
• Requires SWC patch lead to provide compatibility with the aftermarket headunit (Sold Separately)

Specifications:

• Interface Type: Analogue
• Patch Lead Type: C
• Phone Button Compatibility: No
• Voice Assistant Button Support: No
• Outputs:
  Reverse Trigger: Yes (Purple/White)
  Park Brake: No
  Speed Pulse: No
  Illumination: No
  Amp Remote: No
  Telephone Mute: NO
• Other Retention:
  OEM Amplified System: No

Vehicle Compatibility:

• Mazda BT-50 GT, XTR (2015 - 2017)
• Mazda BT-50 (2018 - 2019)
