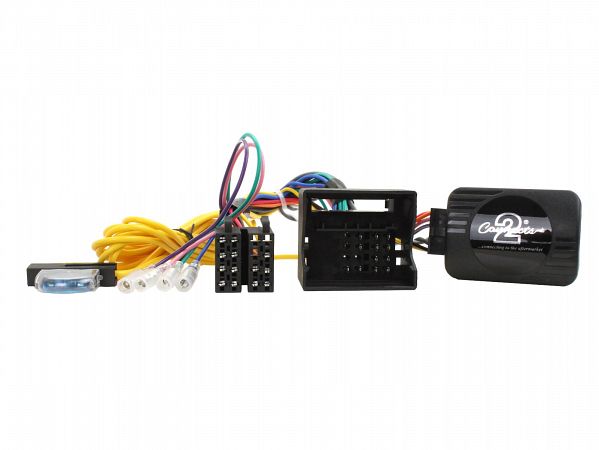

Aerpro CHMC10C Steering Wheel Control Interface Suit Mercedes C Class 2012 to 2014

Designed to Connect Directly to the Existing Wiring in the Vehicle with Ease!

Steering Wheel Control Interface (SWC)
The Aerpro CHMC10C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket head unit whilst maintaining the use of your factory steering wheel controls. Engineered to suit Mercedes C-Class W204 (2012 to 2014) vehicles with QUADLOCK connector, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket head unit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket head unit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, and Amp Remote. It also includes a yellow constant power cable that needs to be wired directly to a permanent 12V power supply.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
• The aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Suitable for vehicles with QUADLOCK connectors.
• Yellow constant power cable needs to be wired directly to a permanent 12V power supply.

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining the use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth head units
• Voice Assistant Button support is available with the software update (Please contact your Authorised Aerpro Dealer for an update)
• Suitable for vehicles with QUADLOCK connector
• CAN bus integration compatible, no additional modules required
• Provides output feeds for the reverse trigger, park brake, speed pulse, and amp remote
• Includes yellow power cable that needs to be wired directly to a permanent 12V power supply
• Fitted with a vehicle-specific plug, no cutting of wires is required
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately)
• Requires SWC patch lead to provide compatibility with the aftermarket head unit (Sold Separately)

Specifications:

• Interface Type: CANBUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes (When Enabled From Factory)
• Voice Assistant Button Support: Yes
  • For Voice Assistant support the interface requires firmware version xx.3. To update the firmware please contact your Authorised Aerpro Dealer
  • If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead
  • Aftermarket head unit and phone must also support the Voice Assistant feature for this feature to work
• Outputs:
  • Reverse Trigger: Yes (Purple/White)
  • Park Brake: Yes (Green)
  • Speed Pulse: Yes (Pink)
  • Illumination: No
  • Amp Remote: Yes (Blue)
  • Telephone Mute: No
• Other Retention: N/A
• Vehicle Compatibility: Mercedes C-Class (2012 to 2014 W204)
• Weight: 0.17kg

FAQ

What is the Aerpro CHMC10C?

A steering wheel control interface that lets you keep your factory steering wheel controls when you fit an aftermarket head unit.

What else do I need?

It needs a steering wheel control patch lead to suit your head unit. An Aerpro APP9 head unit harness adaptor with SWC patch lead makes the install easier.

Does the phone button work?

Yes, when it is connected to a compatible aftermarket head unit.

Will it fit my vehicle?

Built for the vehicles named in the title and description. Send the F.A.E. team your make, model and year and we will confirm before you order.
