Aerpro CHMC00C Steering Wheel Control Harness Suit Mercedes Vehicles

"Get Connected" With Our Range Of Cables, Leads & Adaptors

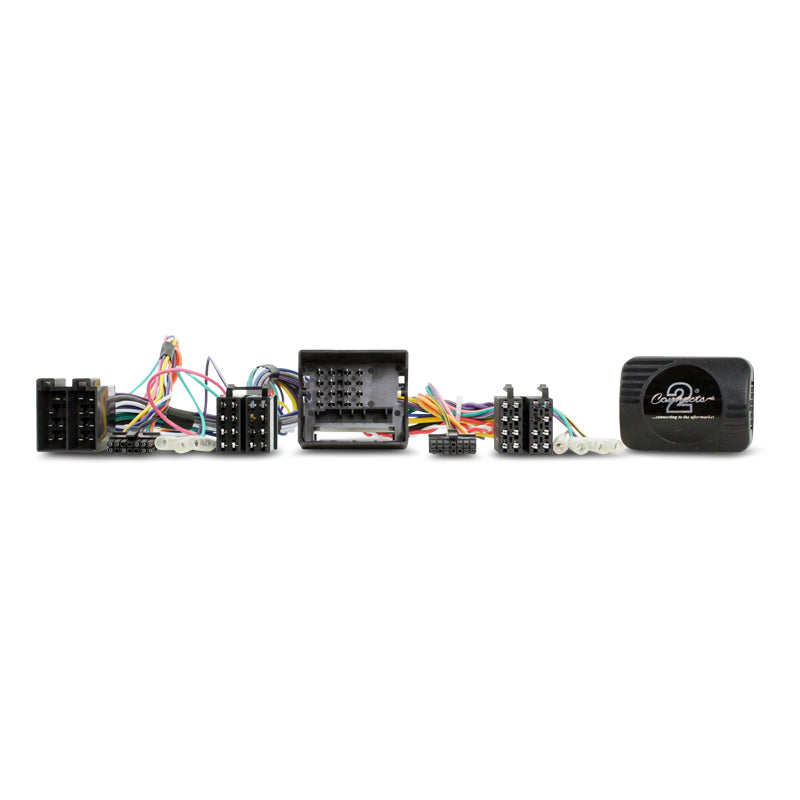

Aerpro CHMC00C steering wheel control (SWC) interface allows you to retain steering wheel controls in your Mercedes when upgrading to an aftermarket headunit. The steering wheel control interface includes two harnesses that are fitted with vehicle specific plugs (one ISO and one Quadlock), designed to connect directly into the existing wiring in the vehicle with ease.

To make the installation process even easier, simply add an Aerpro APP9 aftermarket headunit harness adapter with SWC patch lead which will connect from the aftermarket headunit directly into the steering wheel control interface.

Note: This interface includes 2 vehicle harnesses, one with an ISO connector and one with a Quadlock Connector. It can be used in applications where CHMC1C or CHMC2C are listed.

Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
• Voice Assistant Button support available with software update (please contact your Authorised Aerpro Dealer for update)
• Provides output feeds for illumination, park brake, reverse gear and speed pulse
• CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
• Includes ISO and Quadlock connectors, no cutting of wires required
• Suitable alternative where CHMC1C or CHMC2C applications are listed
• To simplify installation, this interface is compatible with Aerpro APP9 aftermarket headunit harness adapter with SWC patch lead
• Requires SWC patch lead (available separately) to provide compatibility with the aftermarket headunit

Specifications:

• Phone Button Compatibility: Yes
• Voice Assistant Button Support: Yes*
  • For Voice Assistant Support the Interface Requires Firmware Version Xx.3. to Update the Firmware Please Contact Your Authorised Aerpro Dealer
  • If Your Steering Wheel Control Does Not Have a Voice Assistant Button, the Answer Button Will Function as Voice Support Instead
  • Aftermarket Headunit Must Also Support Voice Assistant Feature for This Feature to Work
• Patch Lead Type: C
• Outputs:
  • Reverse Trigger (purple/violet)
  • Handbrake (light Green)
  • Vss (pink)
  • Illumination (orange)
• Other Retention: N/a
