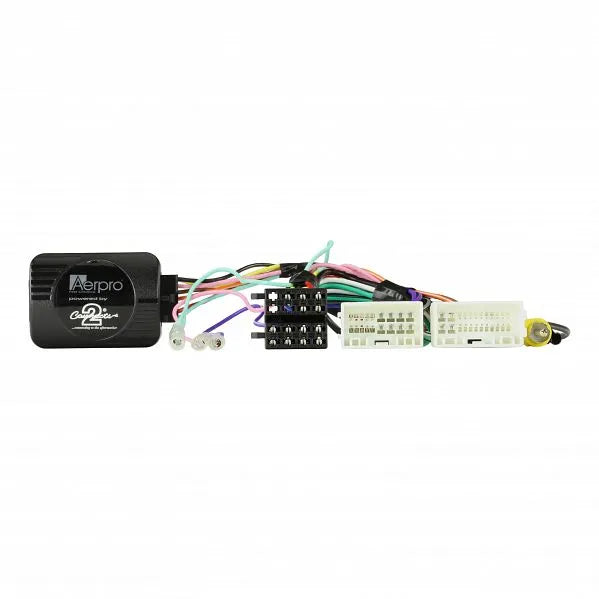

Aerpro CHHY8V Steering Wheel Control Interface Suit Hyundai Various Models (Camera Retention)

Connect Directly to the Existing Wiring in the Vehicle With Ease!

Steering Wheel Control Interface (Camera Retention)
The Aerpro CHHY8V Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Hyundai vehicles, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket head unit is simplified even further when paired with the optional Aerpro APP9 Head Unit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket head unit and the Aerpro Steering Wheel Control Interface. This interface retains the factory reverse camera when connected to compatible aftermarket head units. It also provides outputs for park brake & speed pulse.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Suits non-amplified vehicles without navigation.
• Retains factory reverse camera if originally fitted to the vehicle, aftermarket head unit requires RCA reverse camera input.

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining the use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth head units
• Retains factory reverse camera if originally fitted to the vehicle, aftermarket head unit requires RCA reverse camera input
• Provides output feeds for park brake and speed pulse
• Fitted with a vehicle-specific plug, no cutting of wires is required
• Recommended to be installed with an Aerpro APP9 Head unit Secondary ISO Harness & SWC Patch Lead (sold separately)
• Requires SWC patch lead to provide compatibility with the aftermarket head unit (sold separately)

Specifications:

• Interface Type: Analogue
• Patch Lead Type: C
• Phone Button Compatibility: Yes
• Voice Assistant Button Support: No
• Outputs:
  Reverse Trigger: Yes (Purple/White)
  Park Brake: Yes (Green)
  Speed Pulse: Yes (Pink)
• Illumination: No
• Amp Remote: No
• OEM Reverse Camera: Yes
• Weight: 0.05kg

Vehicle Compatibility:

• Hyundai Elantra MD3 (2013 - 2015)
• Hyundai i30 GD (2012 - 2017)
• Hyundai iLoad - Starex (2015 - 2017)
• Hyundai iMax (2016 - 2017)
• Hyundai iX35 Series 2 (2013 - 2015)
• Hyundai Santa Fe DM (2013 - 2018)
• Hyundai Tucson (2015 - 2018)
