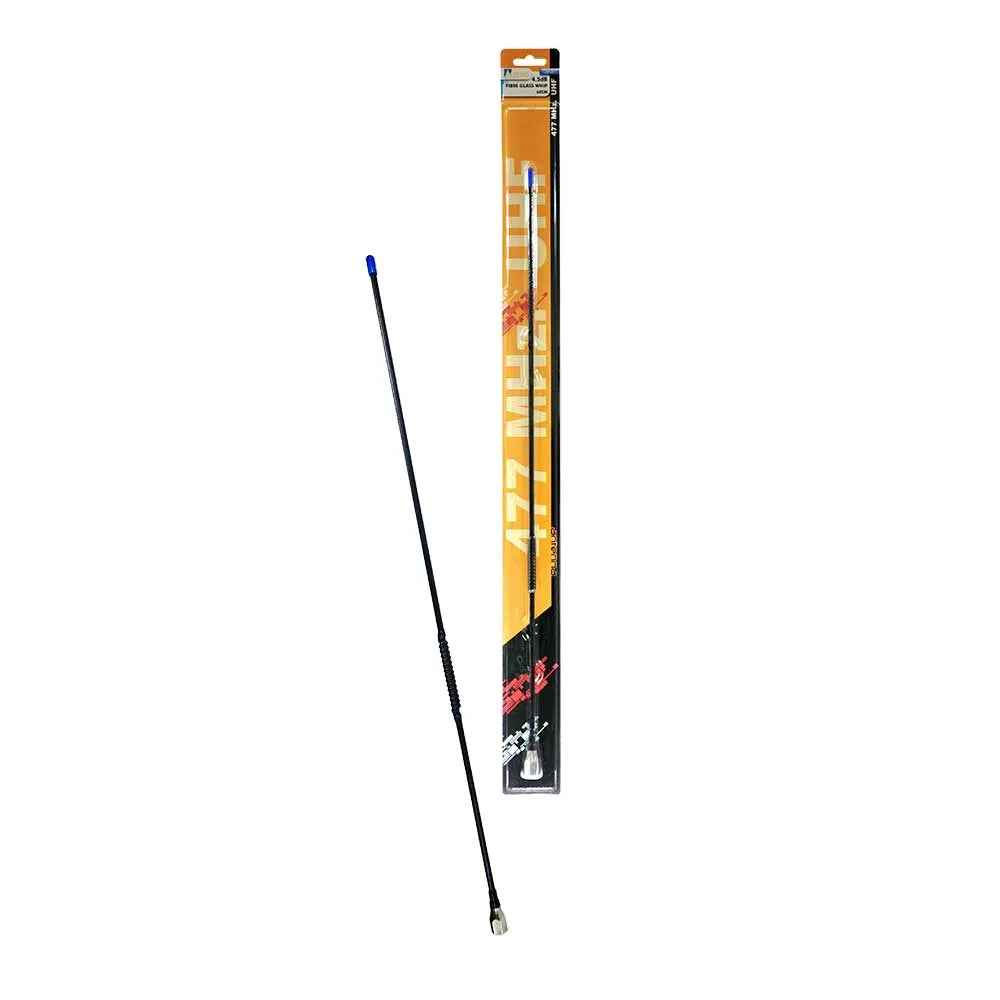

Aerpro CBA3F1 4.5dBi 477MHz 650mm Fibreglass UHF Antenna Whip

Good All-Purpose Town & Country Antenna Whip!

650mm Fibreglass UHF Antenna Whip
The Aerpro CBA3F1 4.5dBi 477MHz 650mm Fibreglass UHF Antenna Whip is compatible with Aerpro Elevated Feed UHF Antennas and other major brands of antennas and mounting bases with 5/16" thread. With 4.5dBi gain, this medium gain antenna is a great all round performing antenna.

The elliptical radiation pattern is more rounded compared to a high gain antenna and radiates further compared to a low gain antenna, making it ideal for medium range communication in various environments such as suburban landscapes, towns and low density woodlands.

The 650mm antenna whip features a fibreglass mast which is weather sealed and fitted with a 5/16" thread for easy removal. This antenna whip is ground dependent, so it is recommended to be mounted on an elevated feed base or ground plane for maximum performance.

Features:

• Compatible with Aerpro Elevated Feed UHF Antennas and other major brands with 5/16" mounting thread
• 4.5dBi Gain, has an elliptical radiation pattern suitable for medium range communication
• Suitable for use in areas with minimal obstructions such as suburban areas, towns and low density woodlands
• Black fibreglass mast with blue tip and polished metal threaded base
• 650mm length fibreglass mast which is weather sealed
• Ground dependent design, recommended to be mounted on an elevated feed base or ground plane for maximum performance
• 5/16" thread base for easy installation

Specifications:

• Frequency: 477MHz
• Gain: 4.5dBi
• Main Colour: Black
• Ground Independent: No
• Total Length: 650mm
• Mast Length: 600mm
• Mast Width: 6.5mm
• Mast Type: Fiberglass Whip
• Mast Mounting Thread Size: 5/16"
• Packaging Type: Heatsealed Blister
• Weight:: 0.40kg
