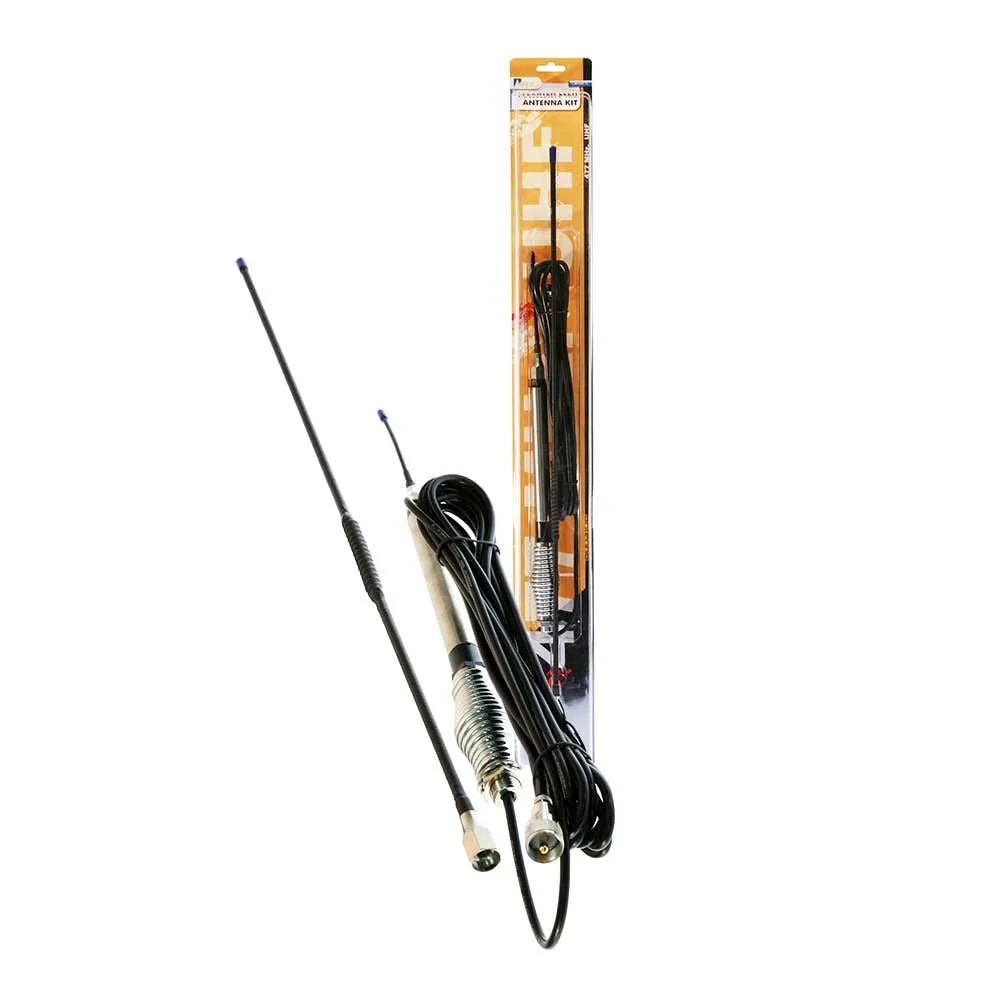

Aerpro CBA36F1L 3dBi/6dBi 477MHz Silver Elevated Feed UHF Antenna Kit

Best Suited For Short-Range Communication in Highly Built-Up Areas!

3dBi/6dBi 477MHz Silver Elevated Feed UHF Antenna Kit
The Aerpro CBA36F1L 3dBi / 6dBi 477MHz Silver Elevated Feed UHF Antenna Kit is compatible with all brands of 477MHz UHF CB Radios in Australia and New Zealand. The kit includes two antenna masts which are interchangeable, giving you the best of both worlds when it comes to UHF communication. The 3dBi mast option provides a total antenna length of 445mm, which is best suited for short-range communication in highly built-up areas including cities, dense woodlands, and mountain regions, as it produces a wider UHF signal which is less likely to be impacted by these obstructions compared to higher gain antennas.

The 6dBi mast option provides a total antenna length of 945mm, which is best suited for medium-range communication in various environments such as suburban landscapes, towns, and low-density woodlands, as the elliptical radiation pattern is more rounded compared to a high gain antenna and radiates further compared to a low gain antenna. The whips mount to a silver elevated feed base which is fitted with a medium-duty stainless steel spring. It is perfect for installing on all vehicles, including those that are prone to vibration such as trucks, agricultural machinery, and off-road 4WDs.

The antenna is ground-independent which means it can be mounted virtually anywhere on the vehicle while maintaining a stable radiation pattern. The elevated feed design helps raise the radiation pattern above the vehicle roof and other obstructions to ensure high performance when mounted on a vehicle roof gutter, guard, or bullbar.

It is fitted with a 4.9 metre RG58 coaxial cable which is pre-terminated with an FME connector making it easy to install through the firewall grommet in vehicles. An FME to UHF PL259 screw-on adaptor is also included as well as a mounting spanner for hassle-free installation. Built sturdy for the Australian outback, the CBA36F1L is the perfect all-rounder antenna kit whether you need to communicate at a building site, on the open road, or throughout the Australian outback.

Features:

• Suitable for use with all 477 MHz UHF CB Radios in Australia and New Zealand.
• Includes 3dBi and 6dBi masts in the kit which are easily interchangeable.
• 3dBi Gain has a broad radiation pattern suitable for short-range communication.
• 6dBi Gain has an elliptical radiation pattern suitable for medium-range communication.
• Great all-rounder antenna kit suitable for use in city and country areas.
• Recommended for use on all vehicles, including those that are prone to vibration such as trucks, agricultural machinery, and off-road 4WD's.
• 445mm (3dBi) / 945mm (6dBi) total length including spring base.
• 150mm 3dBi flexible whip & 650mm 6dBi solid fibreglass black whip masts both with threaded bases.
• Silver elevated feed base which is fitted with a medium-duty stainless steel spring.
• Stainless steel spring reduces vibrations caused by the vehicle and driving conditions.
• Elevated feed and ground-independent design means it can be mounted virtually anywhere on the vehicle.
• 4.9 metre RG58 coaxial cable, insulated to reduce signal interference.
• FME Female connector, fitted to cable for ease of installation through the firewall grommet in the vehicle.
• FME Male to PL259 Male adaptor included, for solder-free installation.
• Installation spanner included, no additional tools required.

Specifications:

• Frequency: 477MHz
• Gain: 3dBi / 6dBi
• Main Colour: Silver
• Ground Independent: Yes
• Elevated Feed: Yes
• Total Length:
  3dBi Whip: 445mm
  6dBi Whip: 945mm
• Mast Length:
  3dBi Whip: 150mm
  6dBi Whip: 650mm
• Mast Width:
  3dBi Whip: 4mm
  6dBi Whip: 6.5mm
• Mast Type:
  3dBi Whip: Soft Fibreglass Whip
  6dBi Whip: Solid Fiberglass Whip
• Spring Type: Medium Duty Stainless Steel
• Antenna Mounting Thread Size: 16mm
• Mast Mounting Thread Size: 5/16"
• Cable Type: RG58 Terminated With Female FME
• Cable Length: 4.9M (Approx.)
• Packaging Type: Heatsealed Blister
• Weight: 1.00kg

Included Accessories:

• FME to PL259 Adaptor
• Mounting Nut
• Installation Spanner
