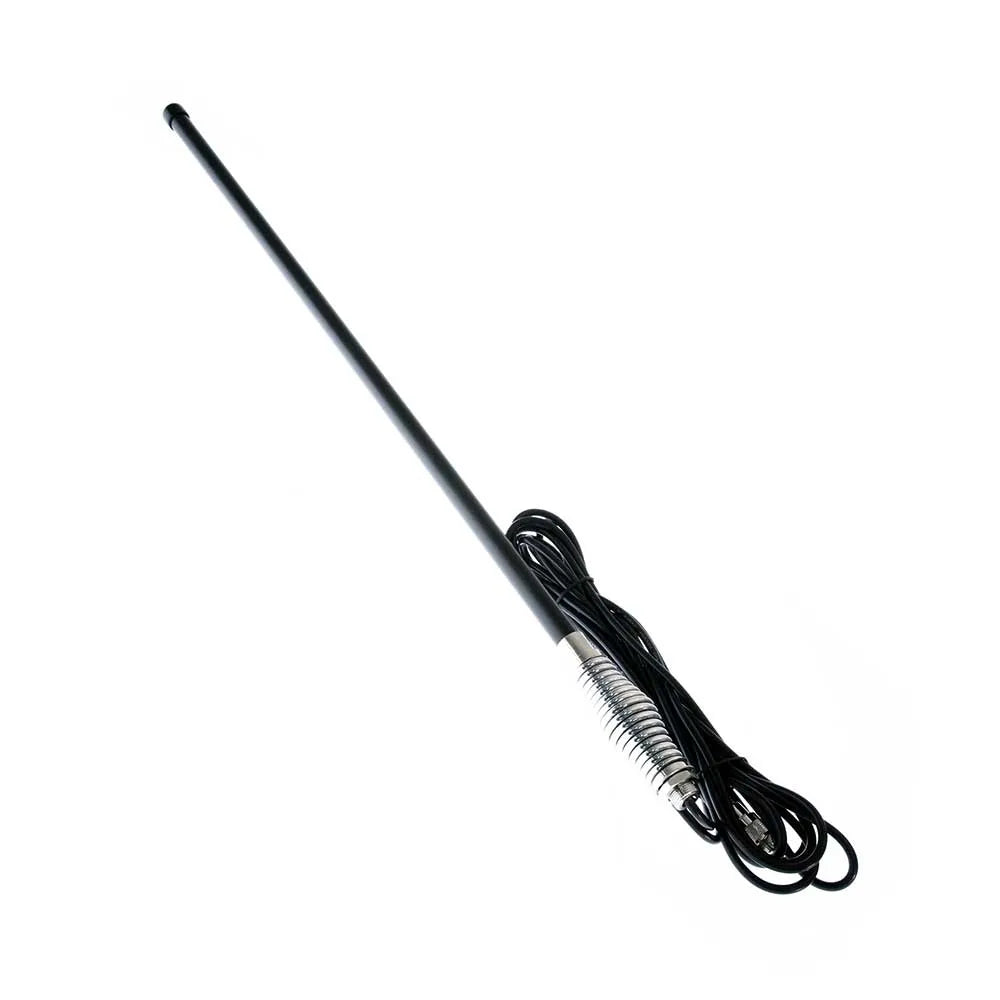

Aerpro CBA2T1 4.5dBi 477MHz Black Radome UHF Antenna

Great All-Around Performing Antenna!

4.5dBi 477MHz Black Radome UHF Antenna
The Aerpro CBA2T1 4.5dBi 477MHz Black Radome UHF Antenna is compatible with all brands of 477MHz UHF CB Radios in Australia and New Zealand. With 4.5dBi gain, this medium gain antenna is a great all-around performing antenna. The elliptical radiation pattern is more rounded compared to a high-gain antenna and radiates further compared to a low-gain antenna, making it ideal for medium-range communication in various environments such as suburban landscapes, towns, and low-density woodlands.

The 730mm length antenna is encased in a high-quality fibreglass tube and secured to a medium-duty stainless steel spring. Due to its heavy-duty design and weight, the CBA2T1 is recommended to be installed on the bullbar of the vehicle, making it suitable for trucks and 4WDs. The antenna is ground independent so it will maintain a stable radiation pattern. The elevated feed design helps raise the radiation pattern above the vehicle roof and other obstructions to ensure high performance when mounted on a bullbar.

It is fitted with 5 metre RG58 coaxial cable which is pre-terminated with an FME connector making it easy to install through the firewall grommet in vehicles. An FME to UHF PL259 screw-on adaptor is also included as well as a mounting spanner for hassle-free installation. Built sturdy for the Australian outback, the CBA2T1 is a good all-purpose town and country antenna.

Features:

• Suitable for use with all 477 MHz UHF CB Radios in Australia and New Zealand.
• 4.5dBi Gain has an elliptical radiation pattern suitable for medium-range communication.
• Suitable for use in areas with minimal obstructions such as suburban areas, towns, and low-density woodlands.
• Recommended for bullbar installation, making it suitable for trucks and 4WD's.
• 730mm length high-quality black fibreglass tube protects the antenna from external elements.
• Medium-duty stainless steel spring reduces vibrations caused by the vehicle and driving conditions.
• Elevated feed and ground-independent design for maintaining a stable radiation pattern.
• 5 metre RG58 coaxial cable, insulated to reduce signal interference.
• FME Female connector, fitted to cable for ease of installing through the firewall grommet in vehicle.
• FME Male to PL259 Male adaptor included, for solder-free installation.
• Installation spanner included, no additional tools required.

Specifications:

• Frequency: 477MHz
• Gain: 4.5dBi
• Main Colour: Black
• Ground Independent: Yes
• Elevated Feed: Yes
• Total Length: 730mm
• Mast Length: 540mm
• Mast Width: 16mm
• Mast Type: Fibreglass Radome
• Spring Type: Medium Duty Stainless Steel
• Antenna Mounting Thread Size: 16mm
• Mast Mounting Thread Size: N/A
• Cable Type: RG58 Terminated With Female FME
• Cable Length: 5 Metre (Approx.)
• Packaging Type: Heatsealed Blister
• Weight: 0.93kg

Included Accessories:

• FME to PL259 Adaptor
• Mounting Nut
• Installation Spanner
