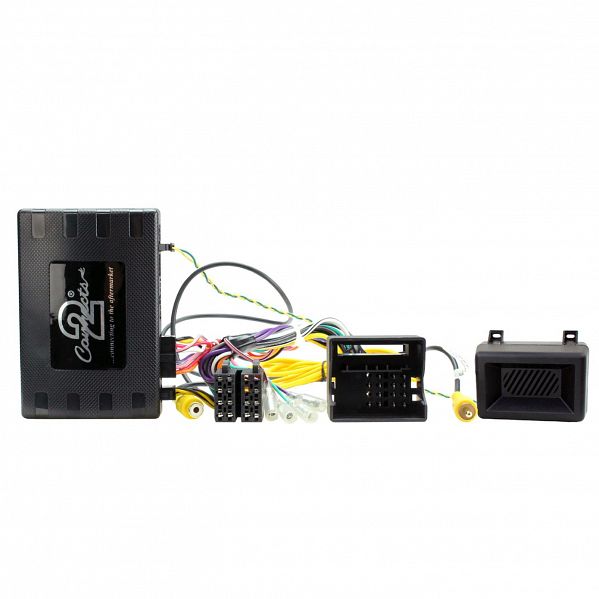

Aerpro CABM02 Infodapter Interface Suit Mini F56 2014 onwards (With Factory Navigation System)

Plug-N'-Play, No Cutting of Wires Required!

Infodapter Interface
The Aerpro CABM02 Infodapter Interface to suit Mini F56 (2014 on) with factory navigation system aids the installation of an aftermarket head unit into the vehicle. The interface retains steering wheel controls as well as other important features including access to the vehicle menu & settings, factory parking sensor functionality, tire pressure functionality, and oil check functionality. The interface also features a reverse camera input enabling an aftermarket reverse camera to be used with the aftermarket head unit.

Important Information:

• Infodapters can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• This product is for vehicles fitted with factory navigation systems only.
• Does not retain time/date functionality.
• The aftermarket head unit requires a rear camera input and display.
• To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is also required (If available, sold separately).
• Please be aware when installing a High Definition Camera the camera resolution will be reduced using this product.
• Updates to the vehicle's software through the dealership service department may have an impact on the functionality of this product.
• Infodapter menu settings are controlled and altered via the vehicle's original steering wheel controls.
• The included Harness has an ISO connection. Recommended to be installed with an Aerpro APP8 or APP9 Harness (Sold Separately).
• Please check the connections in the vehicle match the harness you are purchasing.

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Improves driver safety as it allows you to keep your hands on the steering wheel and eyes on the road
• Allows vehicle information to be displayed on an aftermarket AV head unit, including TMPS (Tire Pressure Monitor System) reset
• Provides input for aftermarket reversing camera
• Retains parking sensor audio and generates parking sensor graphics
• Provides outputs for the parking brake, reverse gear, speed pulse, and mute
• Infodapter menu settings are controlled and altered via the vehicle's original steering wheel controls
• To retain a factory-fitted camera an additional vehicle-specific camera retention harness is required (Sold Separately)

Specifications:

• Interface For:
  Steering Wheel Controls
  Access to Vehicle Settings
• Phone Button Compatibility: Yes
• Outputs:
  Reverse (Purple/White): Yes
  Handbrake (Light Green): Yes
  Vss Speed Pulse (Pink): Yes
  Telephone Mute (Pink/Black): Yes
• Vehicle Compatibility: Mini Cooper (2014, F55, F56)
• Weight: 0.39kg

FAQ

What is the Aerpro CABM02?

A plug and play infodapter interface for Mini with factory navigation. It keeps the steering wheel controls, vehicle menu and settings, parking sensors, tyre pressure and oil check, and adds a reverse camera input.

Is there anything it does not keep?

It does not retain the time and date function, and it only suits cars with factory navigation.

Will it fit my car?

Built for the vehicles named in the title and description. Send the F.A.E. team your make, model and year and we will confirm before you order.
