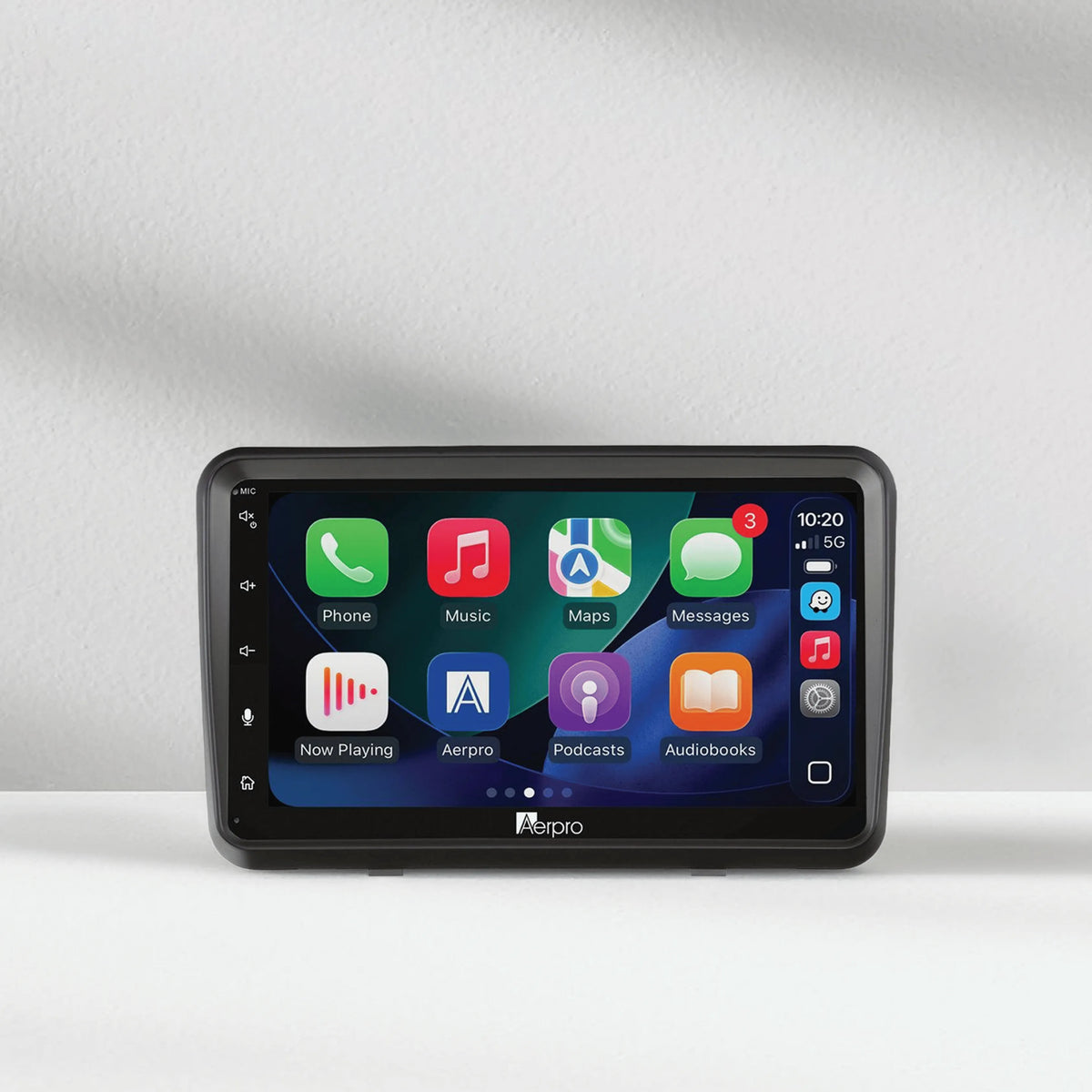

Aerpro AX9240K 6.8" Multimedia Receiver Kit Ford Falcon AU Series II and III 2000-2002

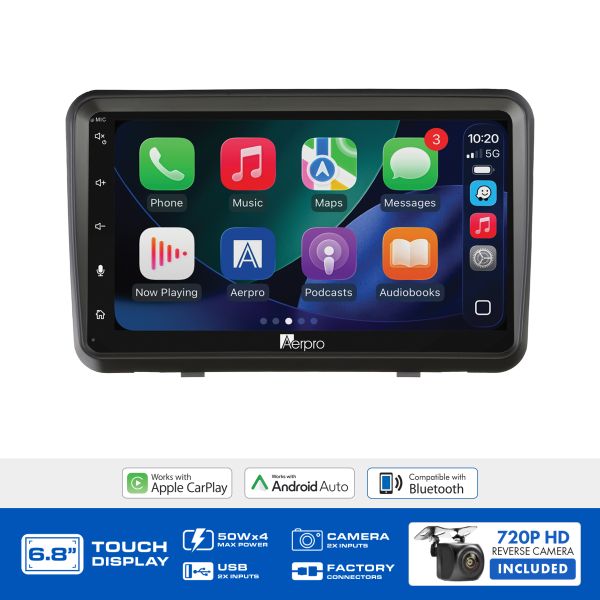

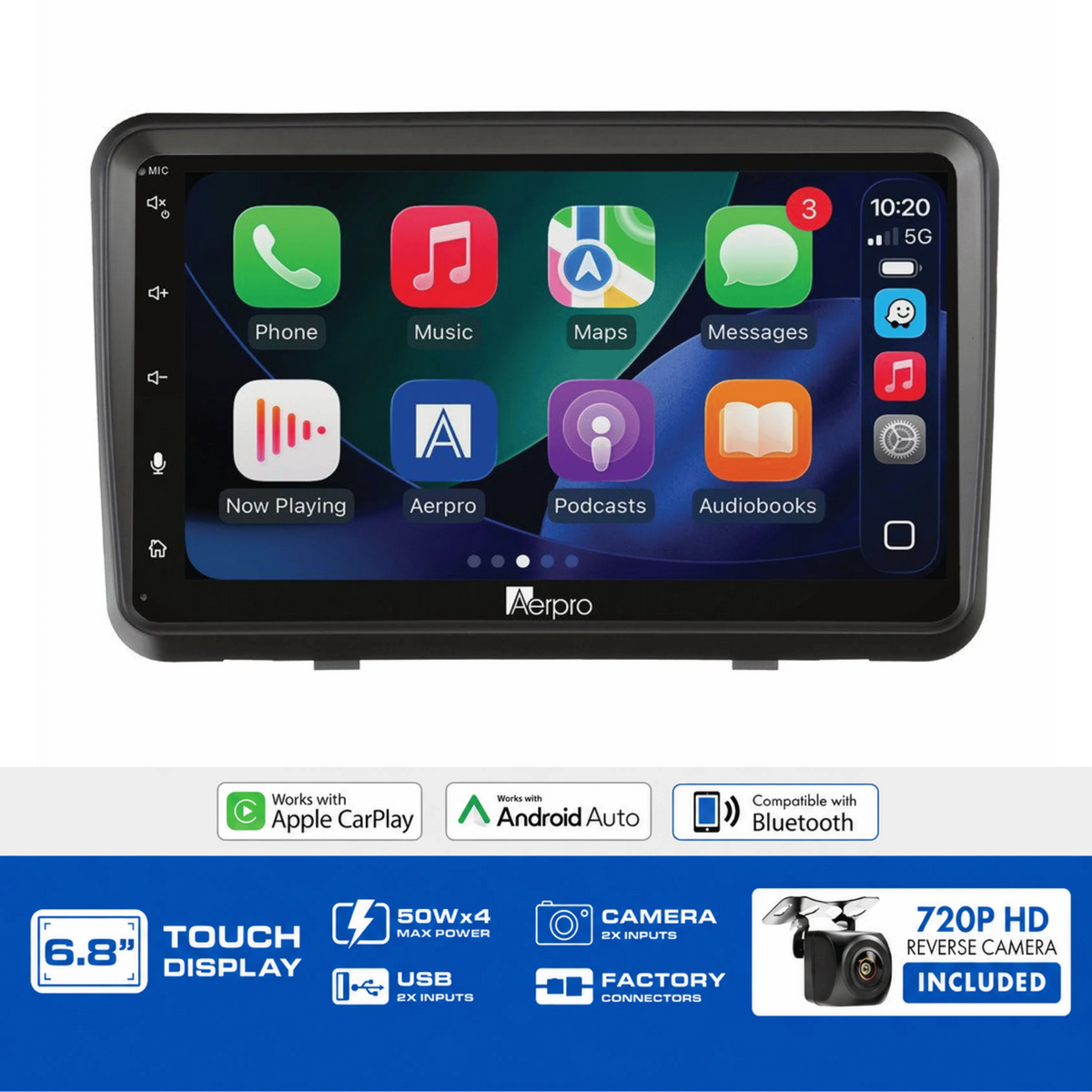

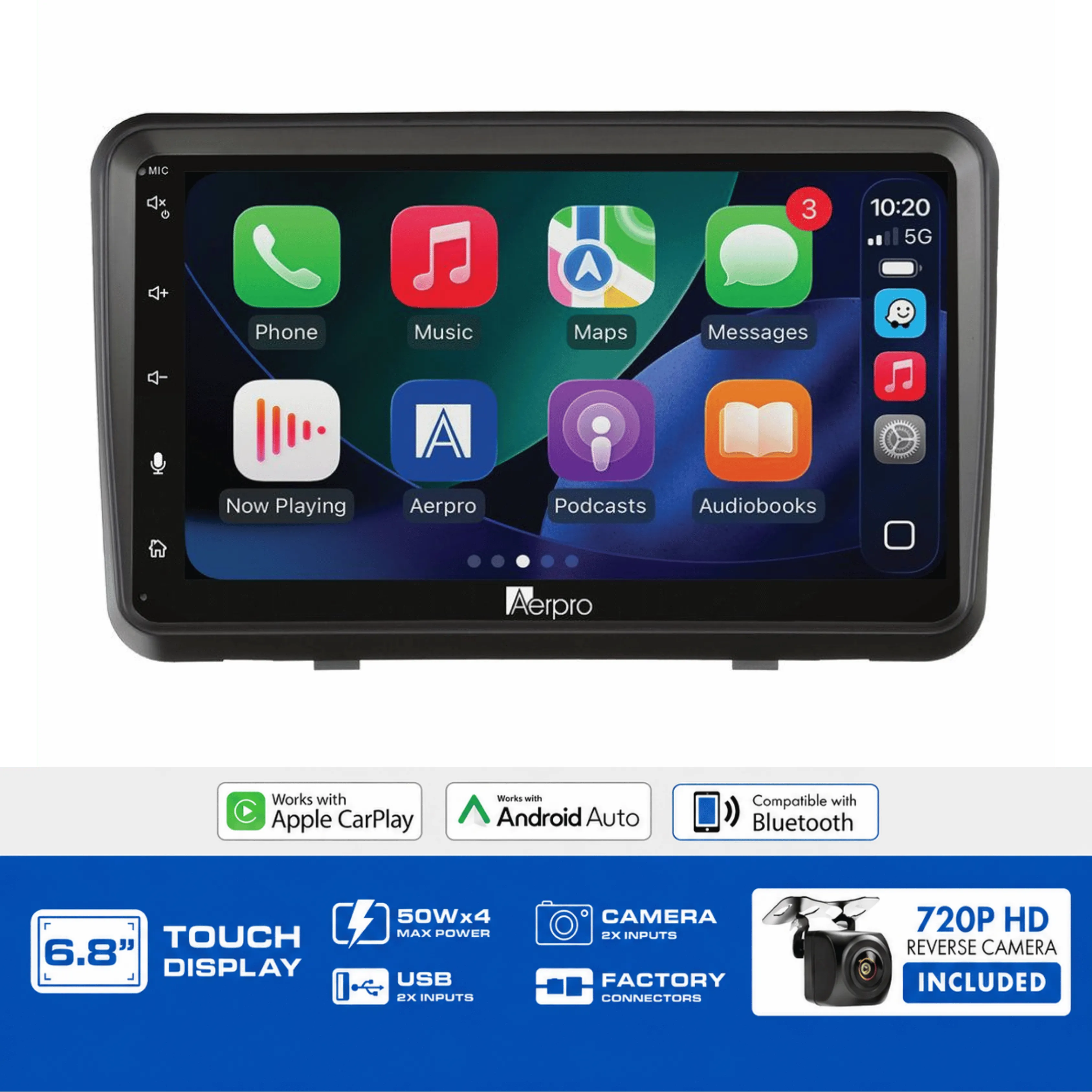

A complete 6.8" head unit upgrade kit for the Ford Falcon AU Series II and III (2000-2002), the AX9240K includes a 6.8" wireless CarPlay and Android Auto multimedia receiver, vehicle-specific installation kit with black fascia, SWC interface, OEM radio removal keys and universal patch lead, and a 720P AHD 150-degree surface mount camera with 6-metre cable, retaining steering wheel controls.

Product Overview

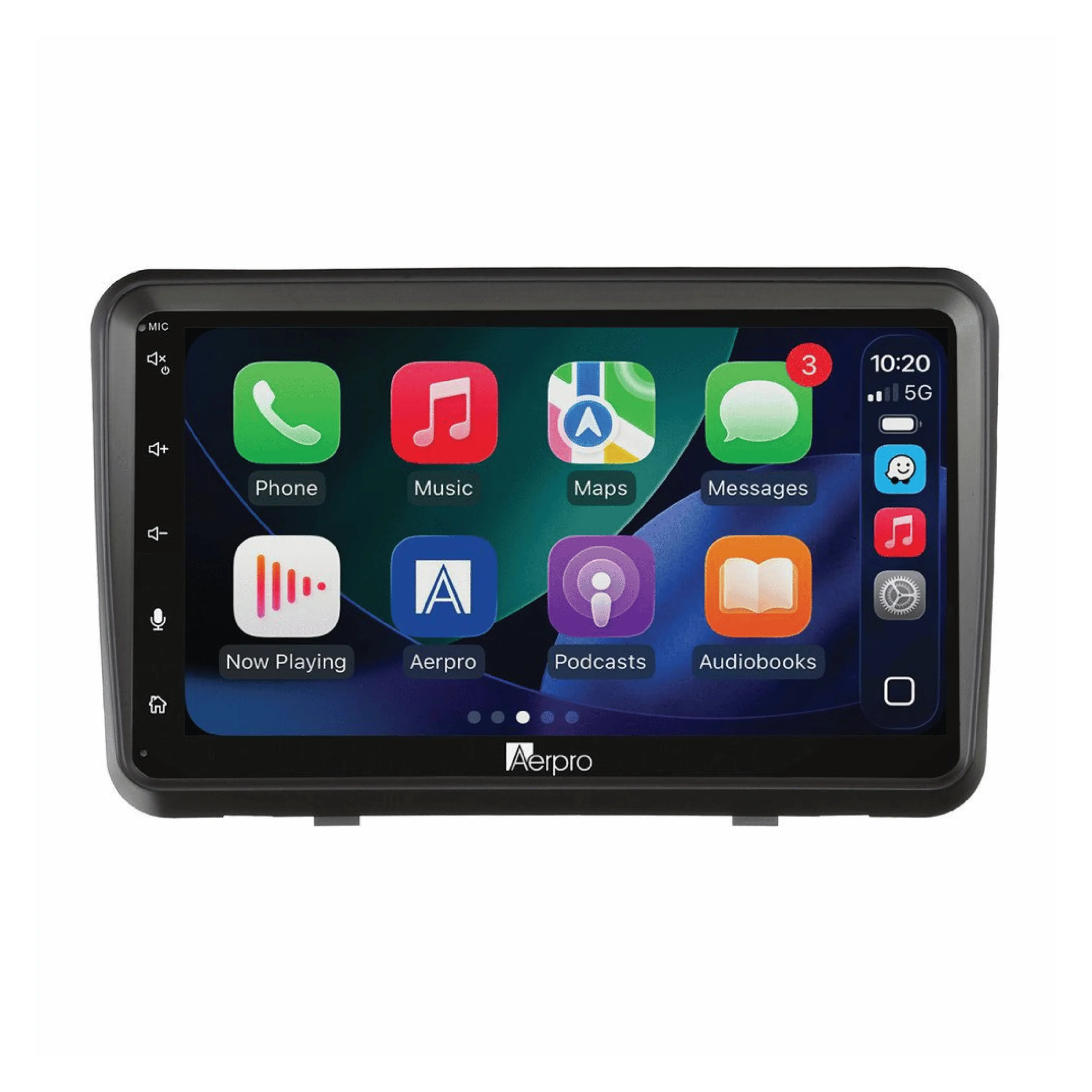

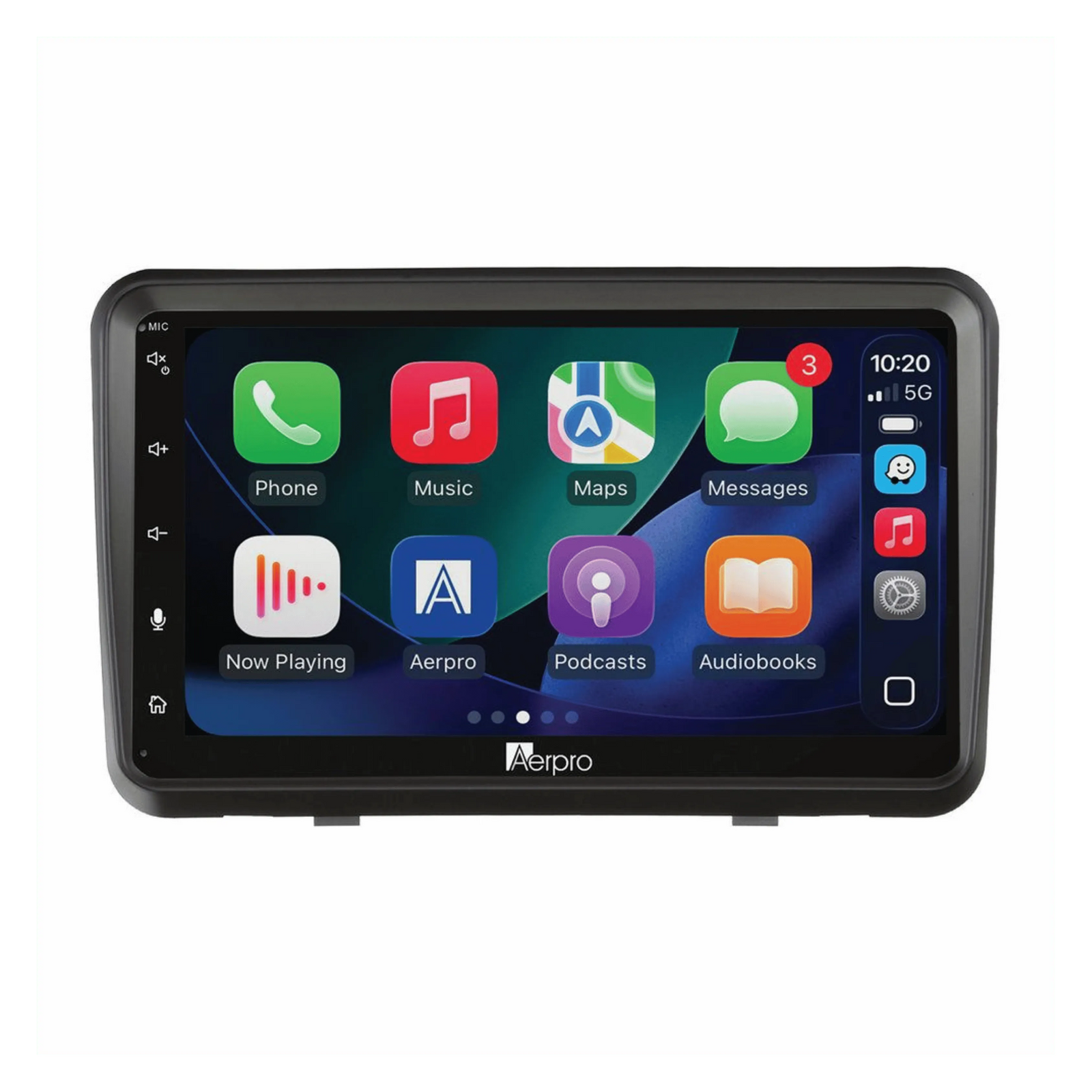

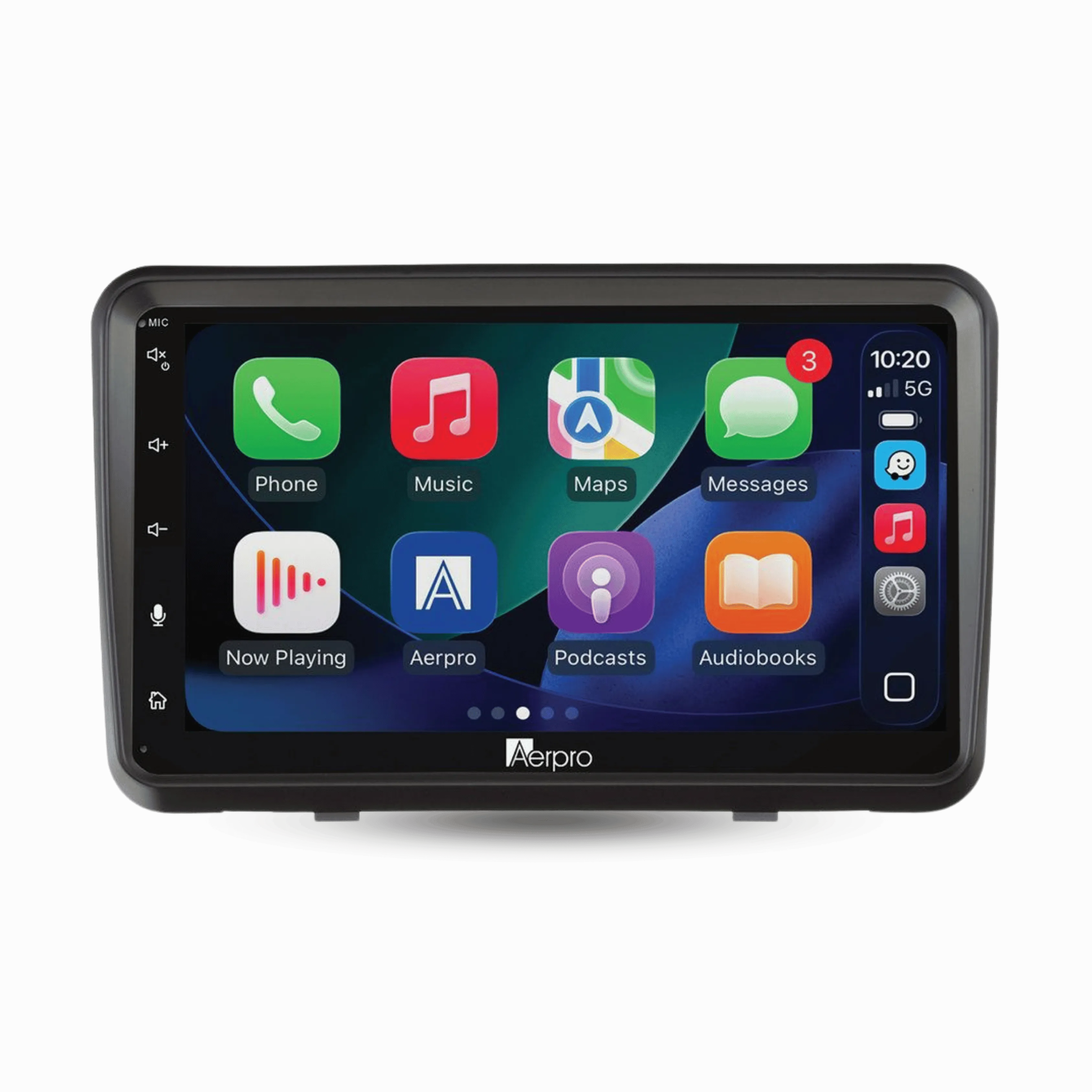

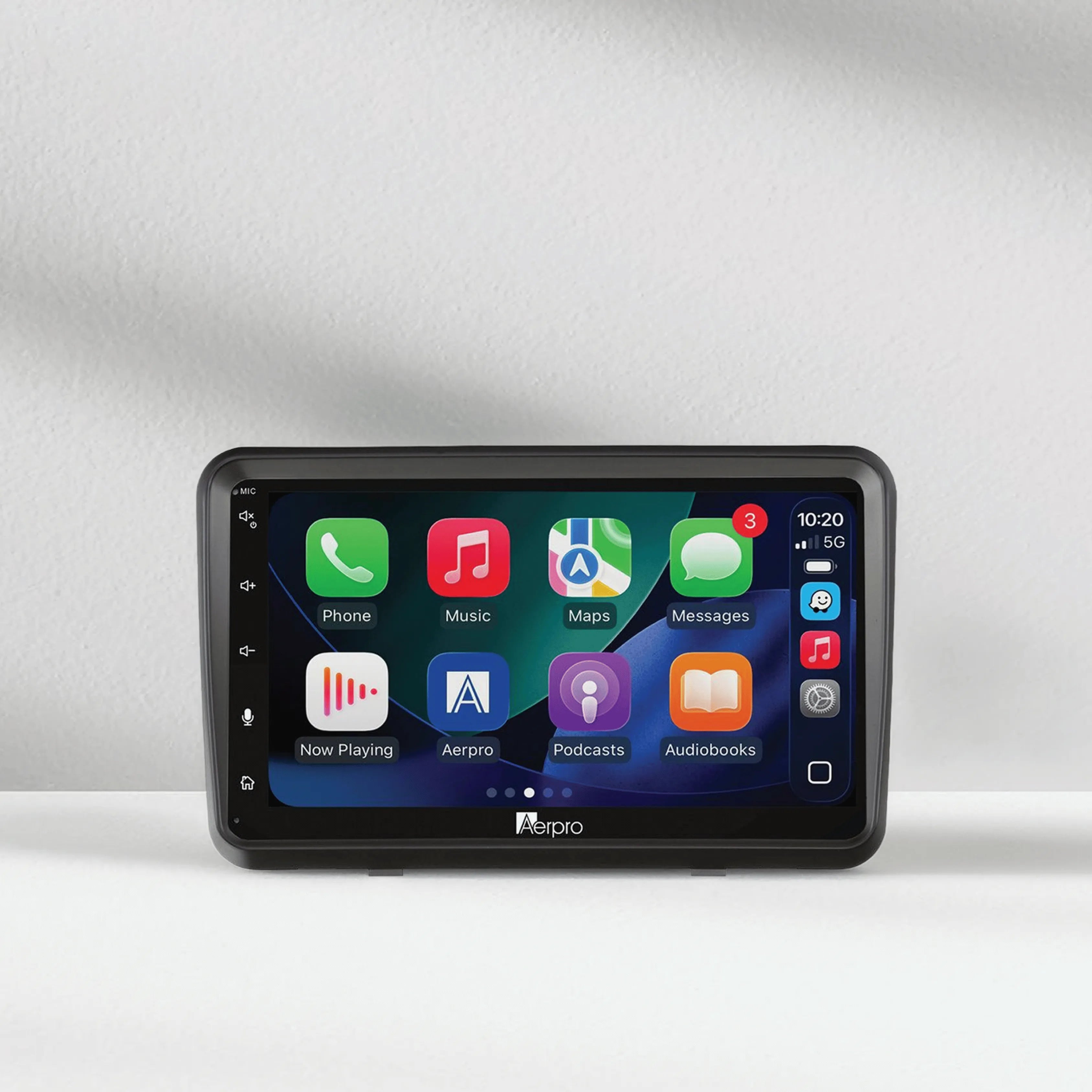

The Aerpro AX9240K is a 6.8" multimedia receiver upgrade kit designed specifically for the Ford Falcon AU Series II and III from 2000-2002. The kit is built around an Aerpro 6.8" Double DIN multimedia receiver featuring a 1024x600 capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HFP 1.6 HD Voice, A2DP, AVRCP, and PBAP, AM/FM tuner with RDS, dual rear USB inputs, 50W x 4 maximum power output, 13-band graphic EQ with time alignment, and 4V 6-channel RCA pre-outs covering front, rear, and subwoofer outputs.

The vehicle-specific installation kit includes a black fascia kit, steering wheel control interface, OEM radio removal keys, and a universal SWC patch lead. The included 720P AHD surface mount camera features a Sony 225 1/3 CMOS image sensor, 150-degree lens angle, IP67 rating, optional parking guidelines, and 6 metres of video cable with an inline reverse trigger. The camera can be mounted as a front, rear, or reverse camera. The head unit provides two 720P AHD-compatible camera inputs, supporting the included camera alongside an additional front or towing camera. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.

Features & Benefits

Complete Head Unit Upgrade Kit for Ford Falcon AU II and III 2000-2002: The AX9240K includes all components required to complete a 6.8" Double DIN head unit installation in the Ford Falcon AU Series II and III (2000-2002) in a single purchase, including fascia kit, SWC interface, OEM removal keys, patch lead, and AHD camera.

6.8" Capacitive Touchscreen Display at 1024x600: A 6.8" capacitive touchscreen at 1024x600 resolution provides smooth and responsive touch control for navigation of maps, media, and menus across CarPlay, Android Auto, and the native head unit interface.

Wireless and Wired Apple CarPlay and Android Auto: Both wireless and wired Apple CarPlay and Android Auto are supported, providing full smartphone integration without requiring a cable connection for compatible devices.

Steering Wheel Control Retention: The included vehicle-specific SWC interface and universal patch lead retain the factory steering wheel audio controls with the aftermarket head unit where applicable.

720P AHD Surface Mount Camera with 150-Degree Angle: The included 720P AHD camera uses a Sony 225 1/3 CMOS image sensor and provides a 150-degree field of view with optional parking guidelines and IP67 weather resistance. It is mountable as a front, rear, or reverse camera and connects via a 6-metre video cable with inline reverse trigger.

Dual AHD 720P Camera Inputs: The head unit provides two 720P AHD-compatible camera inputs, supporting the included camera alongside an additional front, rear, or towing camera for comprehensive vehicle visibility.

Black Fascia Kit for Ford Falcon AU II and III: The included black fascia kit is designed specifically for the Ford Falcon AU Series II and III (2000-2002) dashboard profile, providing a factory-fit appearance around the 6.8" Double DIN head unit.

OEM Radio Removal Keys Included: OEM radio removal keys are included for removal of the factory Ford Falcon AU radio without damage to the head unit or surrounding trim.

Bluetooth V5 with HD Voice and External Microphone: Built-in Bluetooth V5 with HFP 1.6 HD Voice, A2DP, AVRCP, and PBAP supports wireless audio streaming, hands-free calling, and phone book access. An external microphone is included alongside the built-in microphone.

50W x 4 Maximum Power with 13-Band Graphic EQ and Time Alignment: The head unit delivers 50W x 4 maximum output at 4 ohms with a 13-band graphic EQ at 32Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 10kHz, 12kHz, 14kHz, and 16kHz, eight preset EQ profiles plus two custom profiles, loudness, subwoofer low-pass filter, and time alignment.

4V 6-Channel RCA Pre-Outs with Subwoofer Output: Front, rear, and subwoofer 4V RCA pre-outs with adjustable subwoofer level control support external amplifier integration.

Dual Rear USB Inputs with Media Playback: Two rear USB inputs support MP3, MP4, MKV, FLAC, and Xvid media playback. USB 1 supports CarPlay, Android Auto, and media; USB 2 supports media playback. Both provide 5V/1.5A charging. Maximum USB capacity is FAT32 32GB.

6-Colour Button Illumination: Button backlighting is selectable across six colours including red, yellow, green, blue, purple, and white for customisation to match the vehicle interior.

AM/FM Tuner with RDS: An AM/FM tuner with RDS provides 18 FM presets and 12 AM presets across standard Australian frequency ranges.

Technical Specs

What's in the Box

Head Unit:

• 6.8" Multimedia Double DIN Head Unit
• Double DIN Metal Frame and Mounting Hardware
• Head Unit Plastic Trim
• Wiring Harness with ISO Connection
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

Vehicle Specific Installation Kit:

• Black Fascia Kit
• Steering Wheel Control Interface
• OEM Radio Removal Keys
• Universal Patch Lead

AHD Camera:

• 720P AHD Surface Mount Camera
• 6m Video Cable (RCA) with Inline Reverse Trigger

Compatible With

The AX9240K is designed specifically for the Ford Falcon AU Series II and III from 2000-2002. The head unit provides two 720P AHD-compatible camera inputs, supporting the included surface mount camera alongside an additional front or towing camera. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.

Frequently Asked Questions

Does the AX9240K include OEM radio removal keys for the Ford Falcon AU?

Yes. The vehicle-specific installation kit included in the AX9240K contains OEM radio removal keys specifically for removing the factory Ford Falcon AU radio without damaging the head unit or surrounding dashboard trim.

Does the AX9240K retain the Ford Falcon AU steering wheel controls?

Yes. The included vehicle-specific SWC interface and universal patch lead retain the factory steering wheel audio controls with the aftermarket head unit where applicable.

Can the included AHD camera be used as a front camera instead of a reverse camera?

Yes. The included 720P AHD surface mount camera is mountable as a front, rear, or reverse camera. The 6-metre cable with inline reverse trigger supports reverse camera installation; front camera installation uses the same cable without the reverse trigger active.

Does the AX9240K support wireless CarPlay and Android Auto?

Yes. The AM10X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.

Can a second camera be connected to the AX9240K?

Yes. The head unit provides two 720P AHD-compatible camera inputs, supporting the included camera alongside a second front, rear, or towing camera connected to the second camera input.
