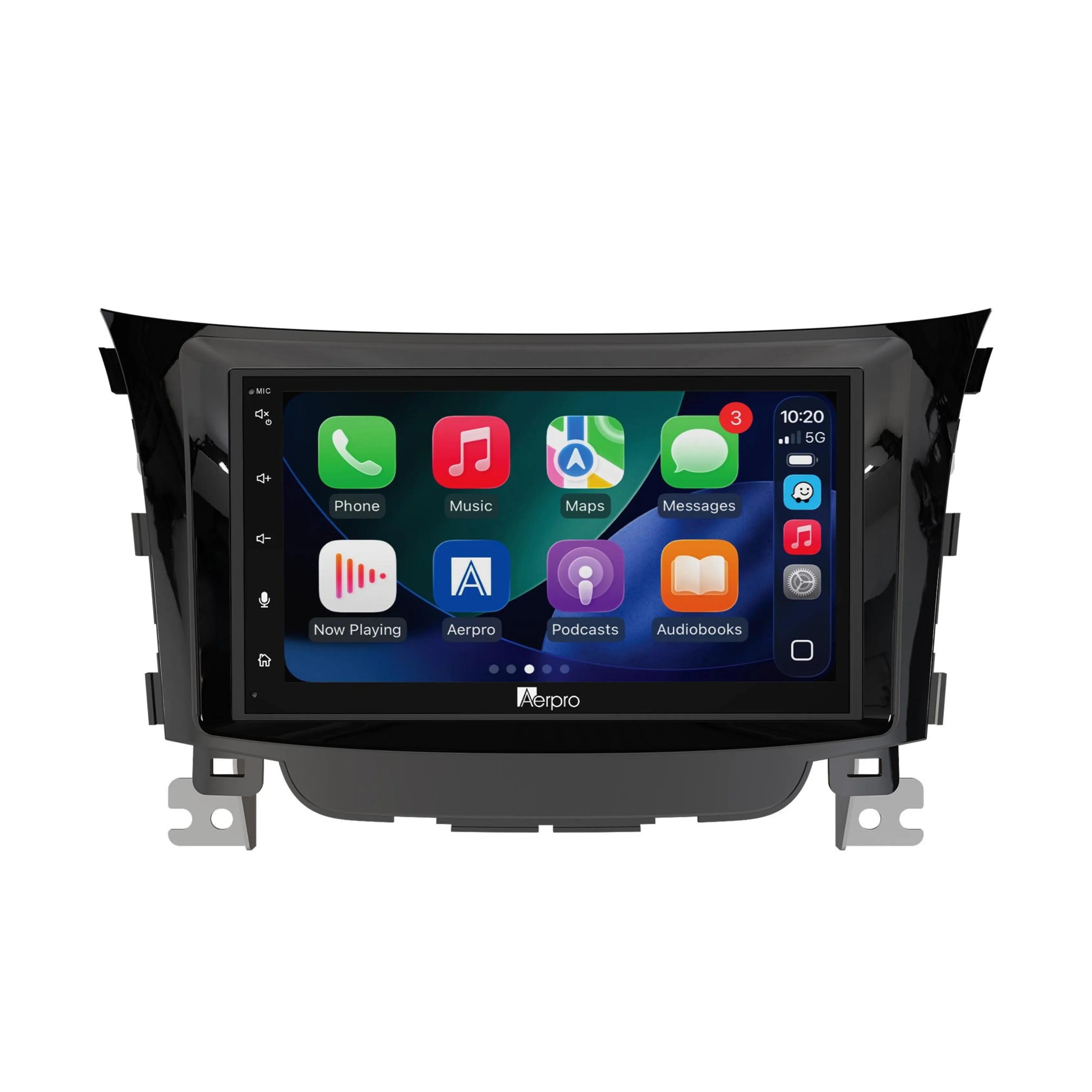

Head unit in the piano black i30 fascia
Head unit in the piano black i30 fascia
Feature panel listing the 6.8 inch screen and camera
Feature panel listing the 6.8 inch screen and camera

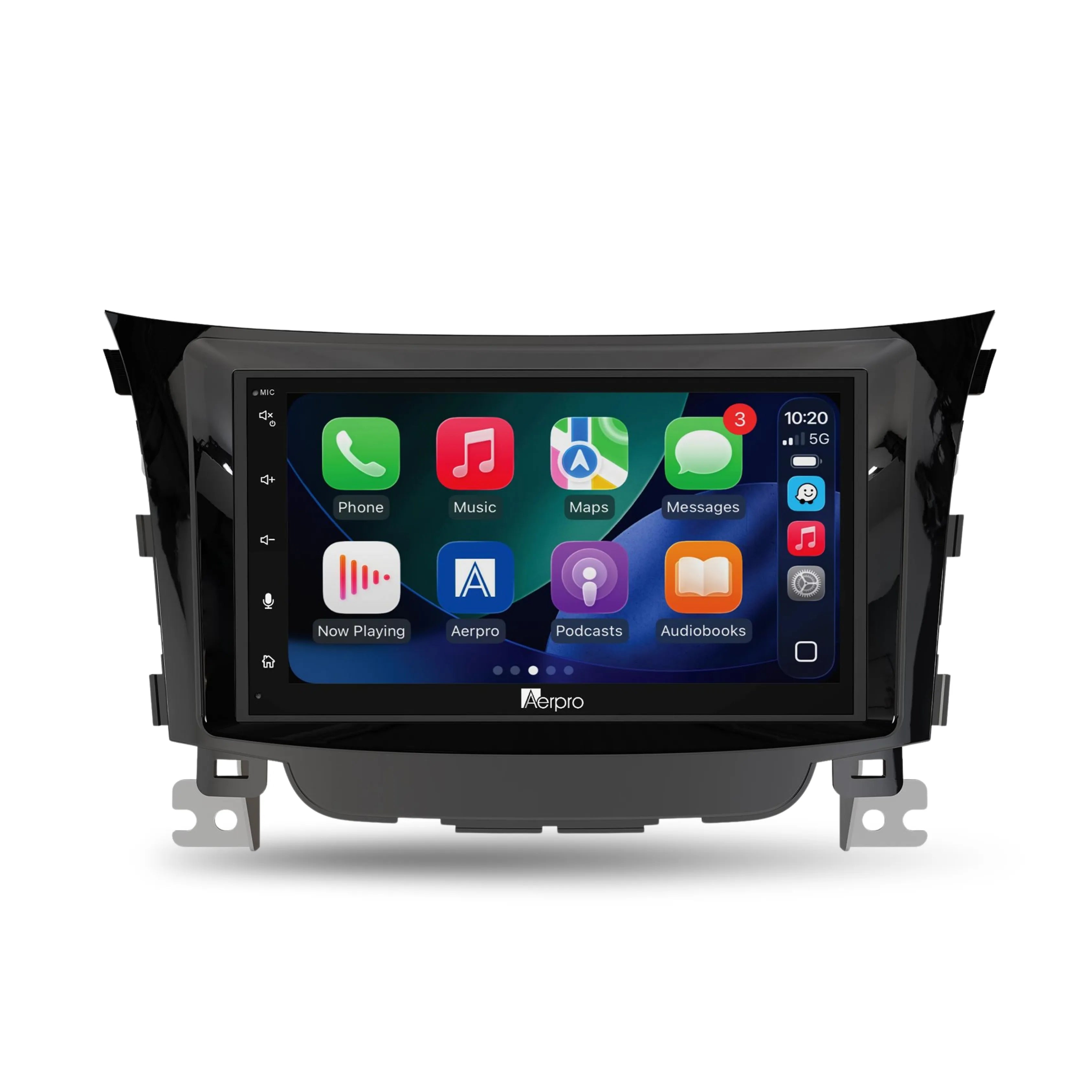

i30 fascia with CarPlay screen from a low angle
i30 fascia with CarPlay screen from a low angle

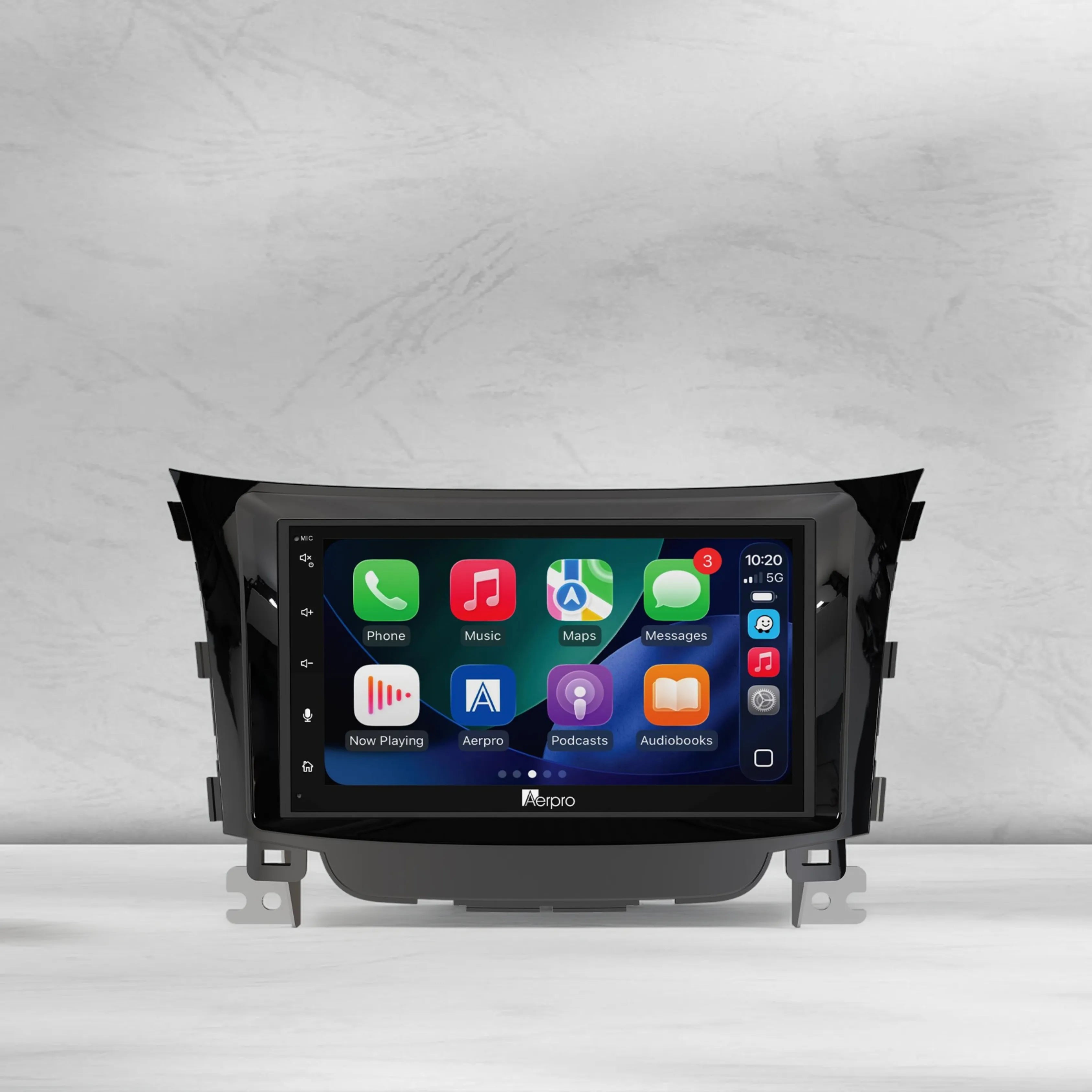

i30 kit on a grey studio background
i30 kit on a grey studio background
Click to open expanded view
AERPRO logo

Aerpro AX8577K 6.8" Wireless CarPlay Head Unit Upgrade Kit Suit Hyundai i30 2012 to 2017

SKU: AX8577K
Price
$649.99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
i30 kit with feature panel showing CarPlay and the 720P camera

Aerpro AX8577K 6.8" Wireless CarPlay Head Unit Upgrade Kit Suit Hyundai i30 2012 to 2017

$649.99

Product features

An i30 from these years has a dated radio without smartphone mirroring, and reversing relies on the mirrors alone.

The AX8577K swaps the i30 radio for an Aerpro 6.8 inch capacitive double DIN screen running wireless CarPlay and Android Auto. The i30 kit brings a piano black fascia, a steering wheel control interface, an antenna adapter and a USB retention harness, and a 720P AHD camera with a 150 degree lens is in the box for reversing.

AX8577K kit features

  • CarPlay and Android Auto over wireless or USB
  • Capacitive 6.8 inch display at 1024 x 600
  • Hands free calls on Bluetooth V5
  • Four 50W max channels with 4V preouts for front, rear and sub
  • Time alignment with 13 EQ bands
  • Second camera input for a front or towing camera
  • Supplied 720P AHD camera rated IP67
  • RDS on AM and FM

Specifications

Vehicle Hyundai i30 2012 to 2017
Screen 6.8", 1024 x 600 capacitive
DIN size 2 DIN
Max power 4CH x 50W at 4 ohm
RCA preouts 4V, 6 outputs
Rear USB 2 ports with charging, 5V 1.5A
Bluetooth Version 5 with HFP 1.6 HD Voice
EQ 13 band, 6 presets plus 2 custom
Camera 720P AHD, 150 degree, surface mount

Fitment and compatibility

Aerpro lists the i30 from 2012 to 2017. The USB retention harness is marked with an asterisk by Aerpro, so ask us whether your car needs it.

What is in the box

The kit per Aerpro: 6.8 inch double DIN head unit, metal frame and mounting hardware, head unit trim, ISO harness, 3 wire learning SWC lead, external mic and mount, GPS antenna, QR manual leaflet, piano black fascia, SWC interface, USB retention harness, antenna adapter, universal patch lead and a wired 720P AHD camera with 6 m video cable.

Install notes

Our South Nowra crew on (02) 4423 5254 can fit the i30 screen, run the camera and set up the wheel buttons.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Does the Aerpro AX8577K keep my i30 wheel buttons?

Yes, through the supplied steering wheel control interface.

What media files will it play?

MP3, MP4, MKV, FLAC and Xvid from USB.

Is there an input for a front camera?

Yes, there is a second AHD camera input.

Is this the right kit for my i30?

Aerpro lists the 2012 to 2017 i30. Give us your model year and we will confirm.
