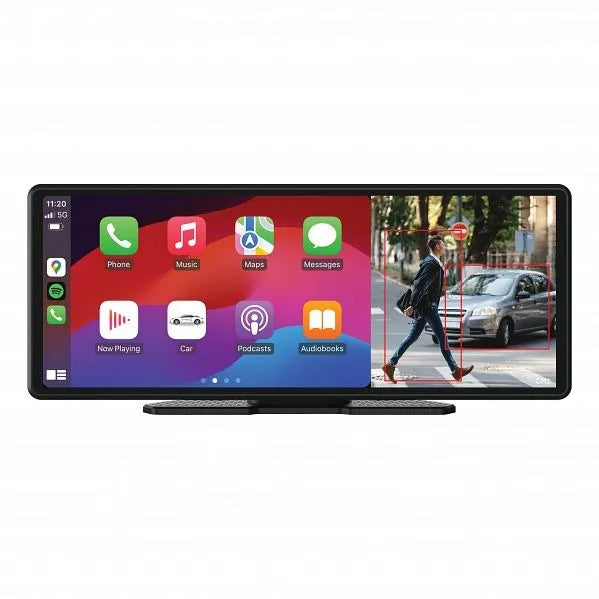

Aerpro AVM10S 10" Heavy-Duty AHD Quad View Wireless Smart Monitor

Elevate Your Vehicle's Safety & Surveillance Capabilities With the Aerpro Advanced Safety Vision System - Your Trusted Partner On the Road!

AHD Quad View Smart AI Monitor With Wireless CarPlay & Android Auto
Introducing the Aerpro AVM10S 10" Heavy Duty AHD Quad View Wireless Smart Monitor, a powerful monitor from the Aerpro Advanced Safety Vision Systems range. Featuring state-of-the-art AHD (Analogue High Definition) technology, this monitor delivers exceptional clarity and detail on the IPS Display with a luminance of 450cd/m2, ensuring optimal visibility in any lighting condition.

The AVM10S stands out from other reverse monitors by also serving as a smartphone monitor system, allowing effortless synchronization with your smartphone. This wireless connection supports Apple CarPlay and Android Auto, providing easy access to your favorite apps, contacts, and navigation through the intuitive 10" touchscreen. Prioritizing safety and hands-free operation, the AVM10S lets you control your music, maps, calls, and more without distraction. Enjoy crystal-clear audio playback via Bluetooth or FM transmitter functions.

Equipped with the latest Artificial Intelligence (AI) features such as Pedestrian Detection, Vehicle Detection (including motorcycles, cars, trucks, and vans), and Blind Spot Detection with area calibration and sensitivity adjustments, the AVM10S truly puts the "smart" in smart monitor. This technology transforms any camera into a smart camera, capable of detecting static or moving human objects or vehicles up to 7 meters away, and producing a tone on the monitor if a person or vehicle enters your driving or reversing path. These AI features are user-adjustable, allowing for a customized solution tailored to your needs.

Equipped with four camera inputs and 3 individual triggers, the AVM10S allows you to seamlessly switch between cameras, enhancing safety and manoeuvrability. The AVM10S also has a trigger delay system which can be used to latch onto indicators for side-view trigger systems. Choose between Single view, Dual channel view or Quad channel view and easily toggle between normal or reverse views with the image flip feature. Parking guidelines can be activated or deactivated on channel 2, providing added assistance during parking manoeuvres.

Capture every moment on the road with built-in DVR recording capabilities, offering high-definition recording 720P @ 15 FPS (Max 256GB). With features such as Loop Recording, Parking mode and Time lapse the AVM10S records all channels and conveniently separates the files by channel number when they are stored on the SD card (Not Included).

The Aerpro AVM10S is designed for versatility, supporting 720p and 1080p AHD cameras, while automatically switching between PAL and NTSC video systems for universal compatibility. Integrated with an on-board speaker, this monitor delivers audio support to complement the visual feedback from your camera setup.

Installation is a breeze with the included dash-mount adjustable u-bracket and detachable sunshade, offering flexibility and optimal viewing angles. Featuring heavy-duty 4-pin camera connectors, the AVM10S ensures reliable weatherproof connections. Compatible with 12V and 24V systems, the AVM10S suits a wide range of vehicles including cars, 4x4s, vans, motorhomes, buses, trucks, agricultural vehicles, heavy machinery and more.

Backed by our industry-leading 5-year warranty, the Aerpro AVM10S 10" Heavy Duty AHD Quad View Wireless Smart Monitor combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Additional Information:

• This is a monitor only, cameras are sold separately.
• SD Card required for DVR recording, not included.
• This monitor accepts SD, HD and AHD cameras but they need to be consistent. You cannot use a combination of SD and AHD cameras.

Features:

• AHD Technology (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology
• AI Vehicle and Human Detection: Provides Audio and Visual alerts for enhanced road-safety by detecting static or moving human and vehicle objects up to 7 metres away.
• Blind Spot Detection: Enhances safety by alerting drivers to vehicles or objects in their blind spots, reducing the risk of accidents during lane changes.
• Smart Phone Connection: Seamlessly connect your smartphone wirelessly for Apple CarPlay and Android Auto, bringing your favorite apps and features directly to your dashboard
• Enhanced Visibility: Luminance of 450cd/m2 ensures optimal screen brightness in any lighting condition
• Quad Camera Inputs: Benefit from flexibility with four camera inputs, each with individual triggers that can latch or delay for seamless integration
• Various Viewing Modes: Effortlessly switch between cameras, viewing Single, Dual or Quad view for enhanced monitoring
• Built-in DVR Recording: Capture important moments on the road with built-in DVR recording, offering high-definition footage for added security
• Image Flip: Choose between normal or reverse view to suit your specific application
• Parking Guidelines: Enable or disable parking guidelines for precision manoeuvring
• Universal Camera Support: Compatible with 720p and 1080p AHD cameras, ensuring versatility across various vehicle setups
• Integrated Speaker: Capture audio feedback directly through the monitor's on-board speaker, enhancing situational awareness
• Adjustable Dash Mount: Customise your viewing angle with the adjustable adhesive dash mount
• 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
• Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind

Specifications:

• Display: 10" IPS Display
• Resolution: 1600 x 600
• Cameras Wired or Wireless: Wired
• Artificial Intelligence: Yes
• Pedestrian (Static or Moving)
  Vehicles (Trucks, Vans, Cars & Motorbikes)
  Blind Spot Detection
• Smartphone Connection: Wireless (Supports Apple CarPlay, Android Auto)
• Audio Output: Bluetooth, FM Transmitter, Built-in Speaker
• Compatibility: Suits 720p and 1080p AHD Cameras
• DVR Recording: Yes
• DVR Specs: 720 @ 15 FPS (Max 256GB)
• Video System: PAL/NTSC Auto
• Video Inputs: 4
• Video Triggers: 3 (CH1 Priority)
• Display Modes: Single, Dual, Quad (Various)
• Monitor View: Normal / Reverse
• Guidelines: Selectable On/Off (CH2 Only)
• Audio: On board Speaker
• Luminance: 450cd/M2
• Power Supply: 11-36V (Hardwired)
• Monitor Dimensions: (W) 245mm x (H) 98mm x (D) 32mm (Excluding Mount)
• Weight: 1.08kg

Inclusions:

• 1 x 10" IPS Monitor AVM10S
• 1 x Monitor Mount
• 1 x 1.5M Monitor Cable
