Aerpro AVM10Q 10" Heavy-Duty AHD Quad View Monitor With DVR

Elevate Your Vehicle's Safety & Surveillance Capabilities With the Aerpro Advanced Safety Vision System - Your Trusted Partner On the Road!

10" Heavy-Duty AHD Quad View Monitor With DVR

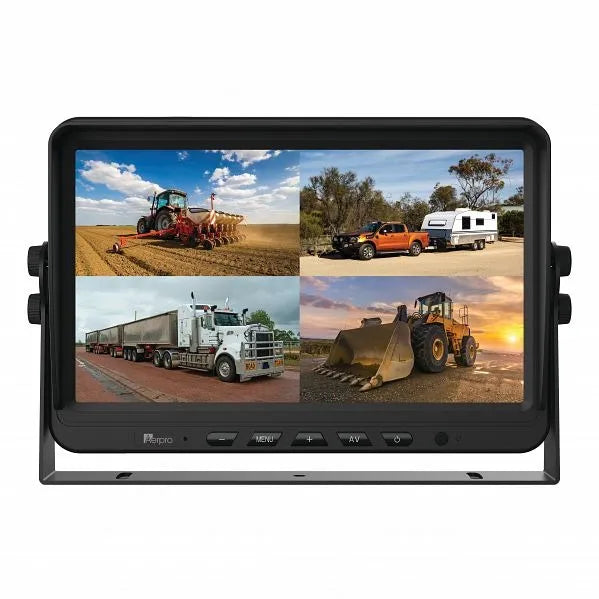

Introducing the Aerpro AVM10Q 10" AHD Monitor, a compact and powerful monitor from the Aerpro Advanced Safety Vision Systems range. Featuring state-of-the-art AHD (Analogue High Definition) technology, this monitor delivers exceptional clarity and detail on the IPS Display with a luminance of 500cd/m2, ensuring optimal visibility in any lighting condition.

Equipped with four camera inputs and individual triggers, the AVM10Q allows you to seamlessly switch between cameras, enhancing safety and manoeuvrability. Choose between Single view, Dual channel view or Quad channel view and easily toggle between normal or reverse views with the image flip feature. Parking guidelines can be activated or deactivated on all channels, providing added assistance during parking manoeuvres.

Capture every moment on the road with built-in DVR recording capabilities, offering high-definition recording 720P @ 22 FPS (Max 128GB). The AVM10Q records all channels and conveniently separates the files by channel number when they are stored on the SD card (Not Included).

The Aerpro AVM10Q is designed for versatility, supporting SD, HD and AHD cameras, while automatically switching between PAL and NTSC video systems for universal compatibility. Integrated with an on-board speaker, this monitor delivers audio support to complement the visual feedback from your camera setup.

Installation is a breeze with the included dash-mount adjustable u-bracket and detachable sunshade, offering flexibility and optimal viewing angles. Featuring heavy-duty 4-pin camera connectors, the AVM10Q ensures reliable weatherproof connections. Compatible with 12V and 24V systems, the AVM10Q suits a wide range of vehicles including cars, 4x4s, vans, motorhomes, buses, trucks, agricultural vehicles, heavy machinery and more.

Backed by our industry-leading 5-year warranty, the Aerpro AVM10Q 10" AHD Monitor combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Additional Information:

• This is a monitor only, cameras are sold separately.
• SD Card required for DVR recording, not included.

Features:

• AHD Technology (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology
• Enhanced Visibility: Luminance of 500cd/m2 ensures optimal screen brightness in any lighting condition
• Quad Camera Inputs: Benefit from flexibility with four camera inputs, each with individual triggers for seamless integration
• Various Viewing Modes: Effortlessly switch between cameras, viewing Single, Dual or Quad view for enhanced monitoring
• Built-in DVR Recording: Capture important moments on the road with built-in DVR recording, offering high-definition footage for added security
• Image Flip: Choose between normal or reverse view to suit your specific application
• Parking Guidelines: Enable or disable parking guidelines for precision manoeuvring
• Universal Camera Support: Compatible with SD, HD, and AHD cameras, ensuring versatility across various vehicle setups
• Integrated Speaker: Capture audio feedback directly through the monitor's on-board speaker, enhancing situational awareness
• Adjustable Dash Mount: Customise your viewing angle with the adjustable u-bracket dash mount
• Detachable Sunshade: Minimise glare and optimise visibility with the detachable sunshade accessory
• 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
• Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind

Specifications:

• Display: 10" IPS Display
• Resolution: 1024 x 600
• Wired or Wireless: Wired
• Compatibility: Suits SD, HD & AHD Cameras
• DVR Recording: Yes
• DVR Specs: 720P @ 22 (Max 128GB)
• Video System: PAL/NTSC Auto
• Video Inputs: 4
• Video Triggers: 4
• Display Modes: Single, Dual, Quad (Various)
• Monitor View: Normal/Reverse
• Guidelines: Selectable On/Off
• Audio: On Board Speaker
• Luminance: 500cd/M2
• Power Supply: 11 - 36V (Hardwired)
• Monitor Dimensions: (W) 273mm x (H) 183mm x (D) 64mm
• Weight: 1.33kg

Inclusions:

• 1 x 10" IPS Monitor AVM10Q
• 1 x Monitor Mount
• 1 x Sun Visor
• 1 x 1.5M Monitor Cable
