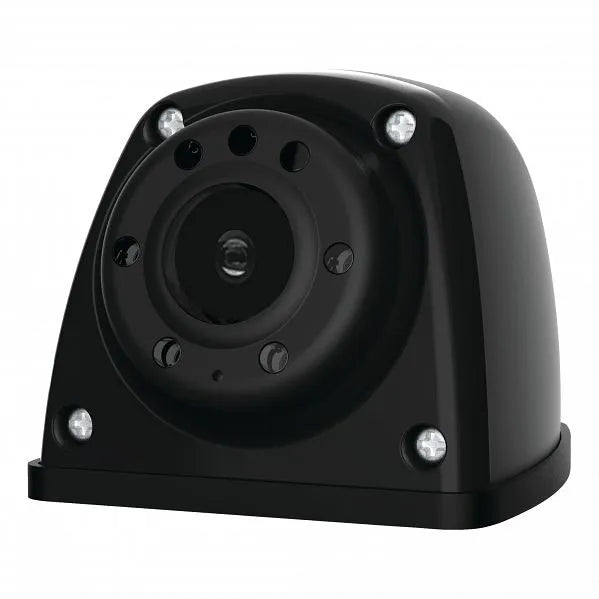

Aerpro AVC8 AHD 1080P Heavy-Duty Side Mount Camera

Deliver Exceptional Clarity & Reliability For Vehicle Safety & Surveillance!

Heavy-Duty AHD 1080P Side Camera
Introducing the Aerpro AVC8 AHD 1080P Heavy Duty Side Mount Camera, a commercial-grade camera from the Aerpro Advanced Safety Vision Systems range. Designed to deliver exceptional clarity and reliability for vehicle safety and surveillance, this rugged camera features advanced AHD (Analogue High Definition) technology, providing high-definition visuals that significantly enhance visibility and situational awareness.

The AVC8's universal side mount with a ball-mounted lens allows flexible positioning on the side of your vehicle, optimising the field of view to suit diverse applications. Capture a wide field of vision with a 130 degree diagonal lens angle, ensuring comprehensive coverage of vehicle surroundings.

Built to withstand challenging environments, the AVC8 is IP69K rated for superior water and dust protection. Additionally, the PCB is completely sealed by an encapsulation process which provides the maximum amount of protection, preventing any external substances from reaching the sensitive equipment, and ensuring reliable performance even in harsh conditions.

Compatible with 12V or 24V systems, the AVC8 is suitable for a wide range of vehicles, including cars, 4x4s, vans, motorhomes, buses, trucks, semi-trailers, trailers, caravans, horse floats, forklifts, agricultural vehicles, heavy machinery, tractors and more. Equipped with 6x IR LEDs, this camera offers enhanced night vision capability, delivering clear imaging in low-light conditions. Featuring an integrated microphone, the AVC8 captures audio directly at the camera location, further enhancing situational awareness during operations. The camera utilises a secure 4-pin wired connection for stable, weatherproof connectivity.

Backed by our industry-leading 5-year warranty, the Aerpro AVC8 AHD 1080P Heavy Duty Side Mount Camera combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Additional Information:

• This is a camera only, monitors and camera cables are sold separately.

Features:

• 1080P AHD (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology, providing high-resolution images for enhanced visibility.
• Universal Side Mount: The adjustable ball-mounted lens enables flexible positioning on the side of your vehicle, optimising the field of view.
• 130 Degree Lens Angle: Capture a wide field of view, ensuring comprehensive coverage of the vehicle surroundings.
• IP69K Rated: Benefit from superior water and dust protection, ensuring durability and weather resistance in challenging environments.
• PCB Encapsulation: Provides robust protection against environmental factors, mechanical stresses, and moisture ingress, enhancing the durability and longevity of the camera.
• 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles.
• 6x IR LED's: Enhanced night vision capability, providing clear imaging even in low-light conditions.
• Integrated Microphone: Captures audio directly at the camera location, enhancing situational awareness.
• Secure 4-Pin Wired Connection: Utilises a reliable 4-pin camera connector for a stable, secure, and weatherproof connection.
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind.

Specifications:

• Mounting Type: Side Mount
• Viewing Type: Reverse
• Lens Angle Degree:
  Horizontal: 110
  Vertical Angle: 60
  Diagonal: 130
• Image Sensor: CMOS
• Resolution: 1080P AHD
• Signal System: PAL
• IP Rating: IP69K
• Vibration Rating: 5.9G
• Voltage: 12/24V
• Minimum Illumination: 0.01 Lux
• Number of IR LED's: 6
• Built-In Microphone: Yes
• Connection Type: 4 Pin
• Cable Length: 50cm
• Dimensions: 50mm x 45mm x 67mm (Including Bracket)
• Wired or Wireless: Wired
• Weight: 0.23kg

Inclusions:

• 1 x AHD 1080P Side Mount Camera
• 1 x 50cm Camera Cable
