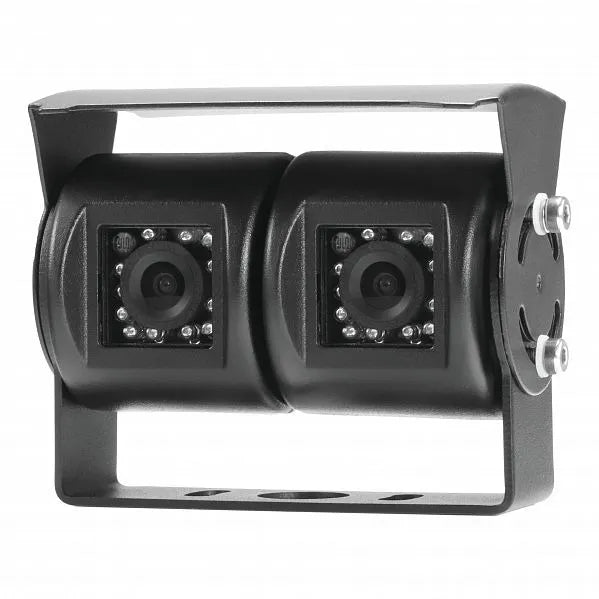

Aerpro AVC7 AHD 1080P Heavy-Duty Surface Mount Dual Camera

Elevate Your Vehicle's Safety & Surveillance Capabilities With the Aerpro Advanced Safety Vision System - Your Trusted Partner On the Road!

AHD 1080P Dual Rear Camera
Introducing the Aerpro AVC7 AHD 1080P Heavy Duty Surface Mount Dual Camera, a commercial-grade camera from the Aerpro Advanced Safety Vision Systems range. Designed to deliver exceptional clarity and reliability for vehicle safety and surveillance, this rugged camera features advanced AHD (Analogue High Definition) technology, providing high-definition visuals that significantly enhance visibility and situational awareness.

The AVC7's universal surface mount adjustable u-bracket allows flexible positioning anywhere on the vehicle, optimising the field of view to suit diverse applications. Capture a wide field of vision with a 110 and 98 degree diagonal lens angle on the cameras and independent vertical camera adjustments, ensuring comprehensive coverage of vehicle surroundings.

Built to withstand challenging environments, the AVC7 is IP69K rated for superior water and dust protection. Additionally, the conformal coating on the PCB provides extra protection, ensuring reliable performance even in harsh conditions.

Compatible with 12V or 24V systems, the AVC7 is suitable for a wide range of vehicles, including cars, 4x4s, vans, motorhomes, buses, trucks, semi-trailers, trailers, caravans, horse floats, forklifts, agricultural vehicles, heavy machinery, tractors and more. Equipped with 12x IR LEDs per camera, it offers enhanced night vision capability, delivering clear imaging in low-light conditions.

The camera utilises a secure 4-pin wired connection for stable, weatherproof connectivity.

Backed by our industry-leading 5-year warranty, the Aerpro AVC7 AHD 1080P Heavy Duty Surface Mount Dual Camera combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Additional Information:

• This is a camera only, monitors and camera cables are sold separately.

Features:

• 1080P AHD (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology, providing high-resolution images for enhanced visibility
• Universal Surface Mount: The adjustable u-bracket enables flexible positioning anywhere on the vehicle, optimising the field of view
• Dual Camera Adjustments: Features dual independent vertical adjustments, enabling a custom view according to personal preferences
• 110 and 98 Degree Lens Angle: Capture a wide field of view, ensuring comprehensive coverage of the vehicle surroundings
• IP69K Rated: Benefit from superior water and dust protection, ensuring durability and weather resistance in challenging environments
• Conformal Coating: Extra protection with conformal coating on the PCB ensures reliable performance even in harsh conditions.
• 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
• 24x IR LEDs: Enhanced night vision capability, providing clear imaging even in low-light conditions
• Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind

Specifications:

• Mounting Type: Surface Mount (U-Bracket)
• Viewing Type: Reverse
• Lens Angle Degree:
  Horizontal: 95 + 85
  Vertical Angle: 55 + 48
  Diagonal: 110 + 98
• Image Sensor: CMOS
• Resolution: 1080P AHD
• Signal System: PAL
• IP Rating: IP69K
• Vibration Rating: 5.9G
• Voltage: 12/24V
• Minimum Illumination: 0.01 Lux
• Number of IR LEDs: 24 (12 per camera)
• Built-In Microphone: Yes
• Connection Type: 2 x 4 Pin
• Cable Length: 50cm
• Dimensions:
  105mm x 81mm x 61mm (Including Bracket & Hood)
  87mm x 50mm x 61mm (Excluding Bracket)
• Wired or Wireless: Wired
• Weight: 0.57kg

Inclusions:

• 1 x AHD 1080P Surface Mount Camera
• 1 x 50cm Camera Cable
• 1 x U-Bracket Camera Mount
