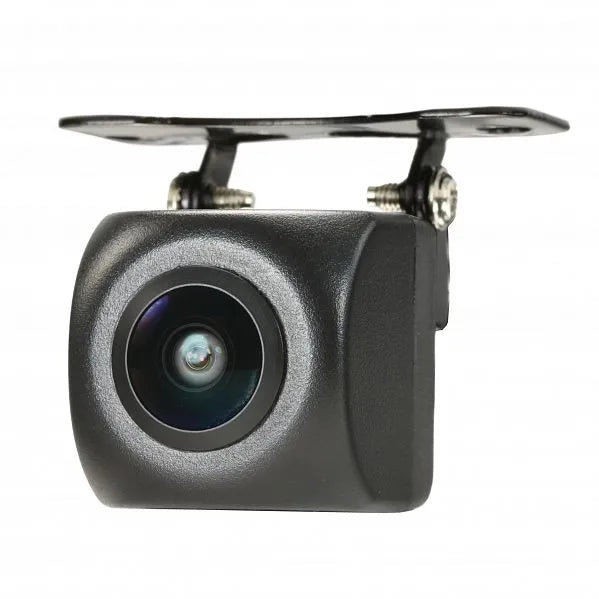

Aerpro AVC0 AHD 1080P Heavy-Duty Butterfly Compact Rear Camera

Elevate Your Vehicle's Safety & Surveillance Capabilities With the Aerpro Advanced Safety Vision System - Your Trusted Partner On the Road!

AHD 1080P Butterfly Compact Rear Camera
Introducing the Aerpro AVC0 AHD 1080P Heavy Duty Butterfly Camera, a commercial-grade ultra-small format camera from the Aerpro Advanced Safety Vision Systems range. Designed to deliver exceptional clarity and reliability for vehicle safety and surveillance, this rugged camera features advanced AHD (Analogue High Definition) technology, providing high-definition visuals that significantly enhance visibility and situational awareness.

The AVC0's universal surface mount butterfly bracket allows flexible positioning anywhere on the vehicle, optimising the field of view to suit diverse applications. Capture a wide field of vision with a 158 degree diagonal lens angle, ensuring comprehensive coverage of vehicle surroundings.

Built to withstand challenging environments, the AVC0 is IP68 rated for superior water and dust protection. Additionally, the PCB is completely sealed by an encapsulation process which provides the maximum amount of protection, preventing any external substances from reaching the sensitive equipment, ensuring reliable performance even in harsh conditions.

Compatible with 12V or 24V systems, the AVC0 is suitable for a wide range of vehicles, including cars, 4x4s, vans, motorhomes, buses, trucks, semi-trailers, trailers, caravans, horse floats, forklifts, agricultural vehicles, heavy machinery, tractors and more. Equipped with an ultra-low light sensor, delivering clear imaging in low-light conditions without the need for infrared lights.

The camera utilises a secure 4-pin wired connection for stable, weatherproof connectivity.

Backed by our industry-leading 5-year warranty, the Aerpro AVC0 AHD 1080P Heavy Duty Butterfly Camera combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Additional Information:

• This is a camera only, monitors and camera cables are sold separately.

Features:

• 1080P AHD (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology, providing high-resolution images for enhanced visibility
• Universal Surface Mount: The adjustable butterfly bracket enables flexible positioning anywhere on the vehicle, optimising the field of view
• 158 Degree Lens Angle: Capture a wide field of view, ensuring comprehensive coverage of the vehicle surroundings
• IP68 Rated: Benefit from superior water and dust protection, ensuring durability and weather resistance in challenging environments
• PCB Encapsulation: Provides robust protection against environmental factors, mechanical stresses, and moisture ingress, enhancing the durability and longevity of the camera
• 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
• Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind

Specifications:

• Mounting Type: Surface Mount (Butterfly)
• Viewing Type: Reverse
• Lens Angle Degree:
  Horizontal: 140
  Vertical Angle: 75
  Diagonal: 158
• Image Sensor: CMOS
• Resolution: 1080P AHD
• Signal System: PAL
• IP Rating: IP68
• Vibration Rating: 3.6G
• Voltage: 12/24V
• Minimum Illumination: 0.1
• Number of IR LEDs: 0
• Built-In Microphone: No
• Connection Type: 4 Pin
• Cable Length: 50cm
• Dimensions:
  40mm x 31mm x 37mm (Includes Bracket)
  2mm2 x 22mm x 25mm (Excludes Bracket)
• Wired or Wireless: Wired
• Weight: 0.10kg

Inclusions:

• 1 x AHD 1080P Butterfly Camera
• 1 x 50cm Camera Cable
• 1 x Butterfly Bracket Camera Mount
