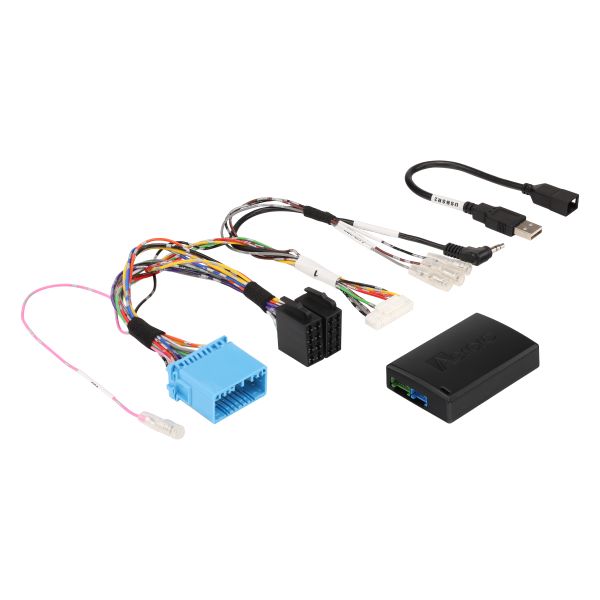

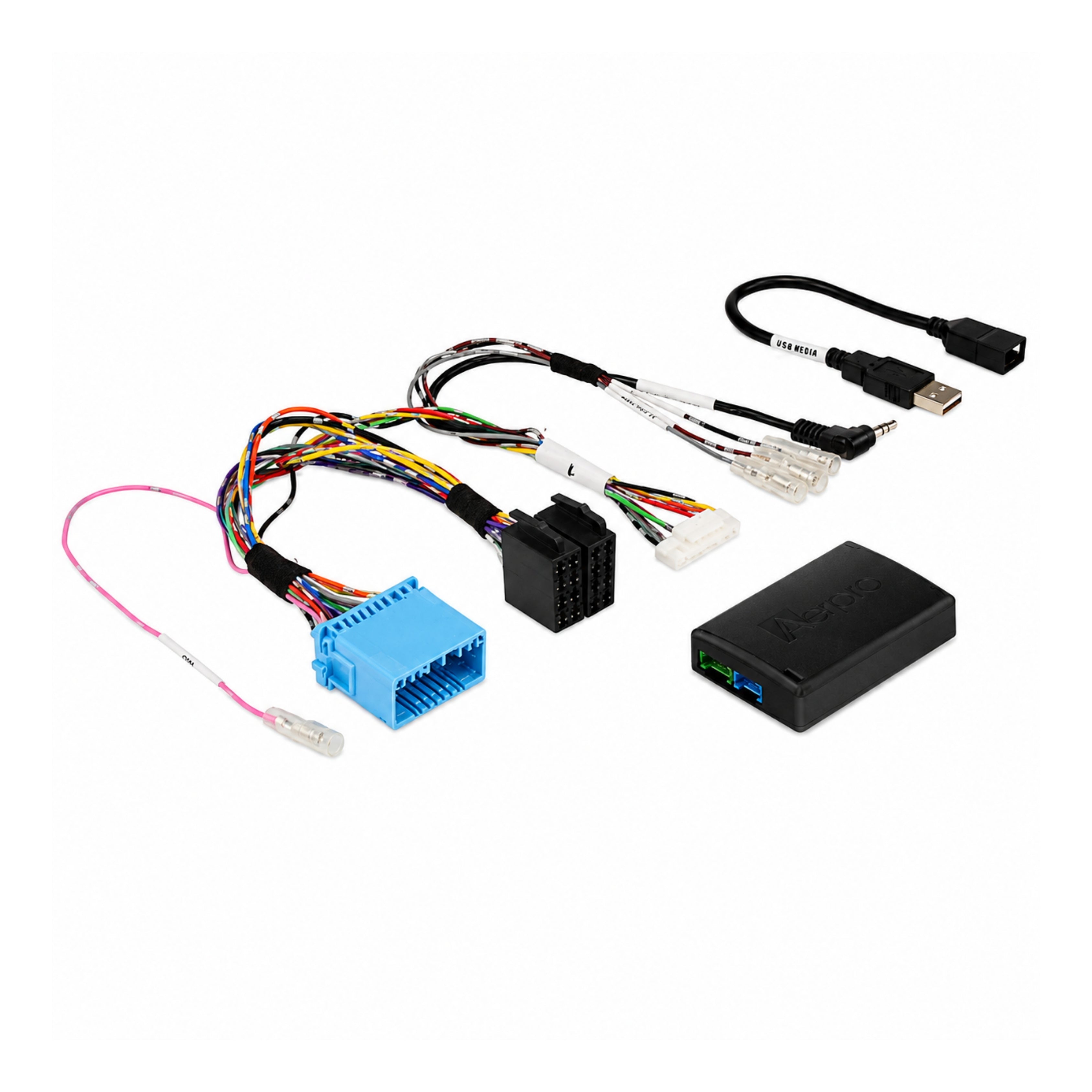

Aerpro ASSZ5C Steering Wheel Control Interface Suzuki Kizashi

Price
$219.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Keep Your Factory Controls When You Upgrade Your Head Unit

Product Overview

The Aerpro ASSZ5C is a vehicle-specific steering wheel control (SWC) interface engineered for the Suzuki Kizashi fitted with a Rockford Fosgate amplified factory audio system. It allows you to install an aftermarket head unit while retaining full use of your factory steering wheel controls no cutting of the factory wiring harness required.

The ASSZ5C uses an analogue interface with a vehicle-specific plug that connects directly into the existing wiring, making installation clean and straightforward. It also retains the factory Rockford Fosgate amplifier and factory USB input (where originally fitted), and provides a speed pulse output feed via the pink wire. A USB retention lead is included in the kit. For a complete installation, Aerpro recommends pairing the ASSZ5C with the APP8 Head Unit Secondary ISO Harness, sold separately.

Features & Benefits

  • Retains factory steering wheel controls — upgrade your head unit without losing steering wheel audio functions
  • Retains factory amplifier — keeps the Rockford Fosgate factory amp in the signal chain; no replacement required
  • Retains factory USB input — maintains rear USB connectivity where originally fitted; aftermarket head unit must support rear USB inputs
  • Speed pulse output — provides vehicle speed pulse feed (pink wire) for compatible head units
  • Illumination output — retains factory illumination feed

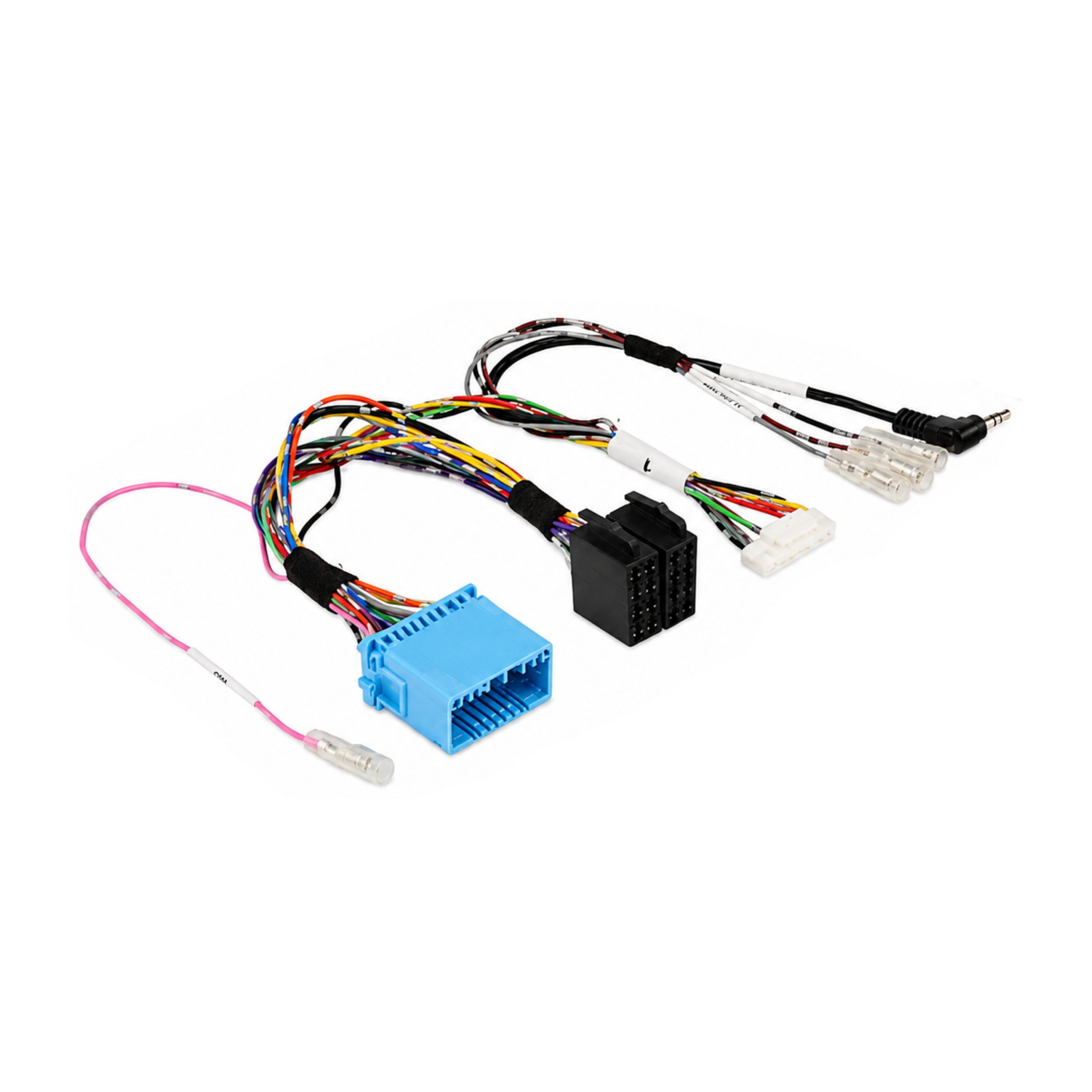

  • Vehicle-specific plug — direct plug-in connection into factory wiring; no cutting required
  • Analogue interface — patch lead type H

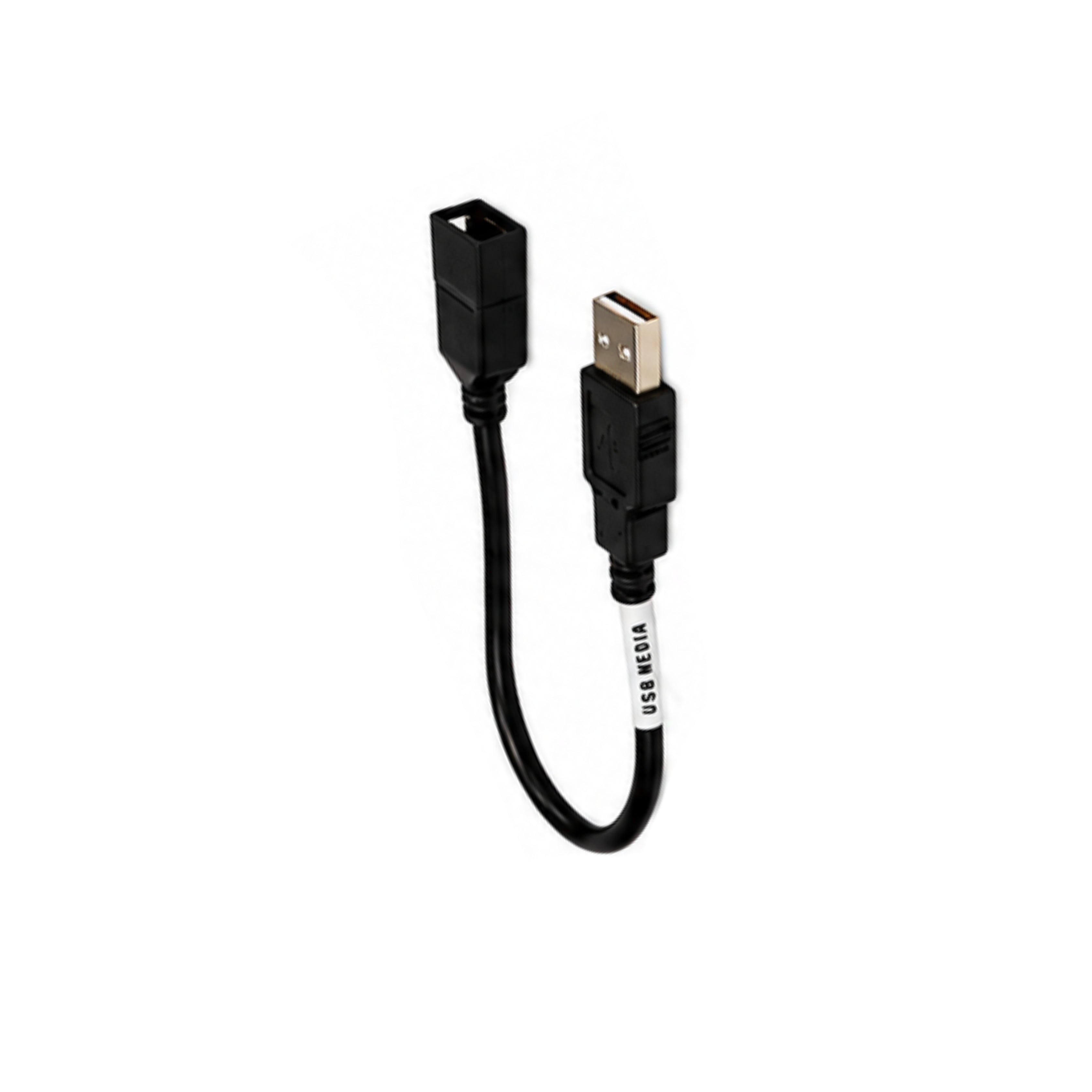

  • USB retention lead included — included in the kit
  • Pairs with APP8 harness — install alongside the Aerpro APP8 Head Unit Secondary ISO Harness for a simplified full installation (sold separately)

Technical Specs

Specification Detail
Part Number ASSZ5C
Brand Aerpro
Interface Type Analogue
Patch Lead Type H
Vehicle Fit Suzuki Kizashi (Rockford Fosgate Amplified)
Reverse Trigger Output No
Park Brake Output No
Speed Pulse Output Yes (pink wire)
Illumination Output Yes
Amp Remote Output No
Telephone Mute Output No
Vehicle Menus Retention No
OEM Amplifier Retention Yes
OEM Reverse Camera Retention No
OEM AUX Input Retention No
OEM USB Input Retention Yes
OEM Antenna Retention No
USB Retention Lead Included
Recommended Accessory Aerpro APP8 (sold separately)

Compatible With

Engineered specifically for:

  • Suzuki Kizashi (Rockford Fosgate amplified factory audio system)

The aftermarket head unit must be SWC compatible. Steering wheel control functions may vary from the original OEM functions depending on the head unit installed. Use the Aerpro Vehicle Selector to confirm fitment before purchase.

Weight

Confirm with supplier.

Frequently Asked Questions

Will this work with any aftermarket head unit?

The head unit must be SWC compatible to work with this interface. Not all aftermarket head units support steering wheel control inputs, so confirm SWC compatibility with your chosen head unit before purchasing.

Do I need to cut any factory wiring?

No. The ASSZ5C uses a vehicle-specific plug that connects directly into the existing factory wiring harness without cutting or splicing.

Does this retain the factory Rockford Fosgate amplifier?

Yes. The ASSZ5C is designed for the Rockford Fosgate amplified variant of the Kizashi and retains the factory amp in the system.

What is the APP8 harness and do I need it?

The Aerpro APP8 is a head unit secondary ISO harness that connects between the aftermarket head unit and the ASSZ5C interface, simplifying the installation. It is sold separately and while not mandatory, Aerpro recommends it for a cleaner install.

Will my steering wheel controls work exactly the same as factory?

Steering wheel control functions may vary from the original OEM setup depending on the aftermarket head unit used. Basic functions such as volume, track skip, and source are typically retained, but advanced OEM functions may not be replicated.
