Product features

Aerpro ASSU16C Steering Wheel Control Interface Harness for Subaru Factory Amplified Models with JBL and Harman Kardon Retention

A CAN Bus steering wheel control interface harness from Aerpro, the ASSU16C suits select Subaru factory amplified vehicles and retains factory steering wheel controls, factory JBL or Harman Kardon amplifier (if equipped), factory reverse camera (if originally fitted), factory AUX input (if originally fitted), and factory antenna, with reverse trigger, park brake, speed pulse, illumination, and amplifier remote outputs, vehicle-specific plug for no-cut installation, and Type H patch lead. Recommended for installation with the Aerpro APP8 Secondary ISO Harness (sold separately).

Product Overview

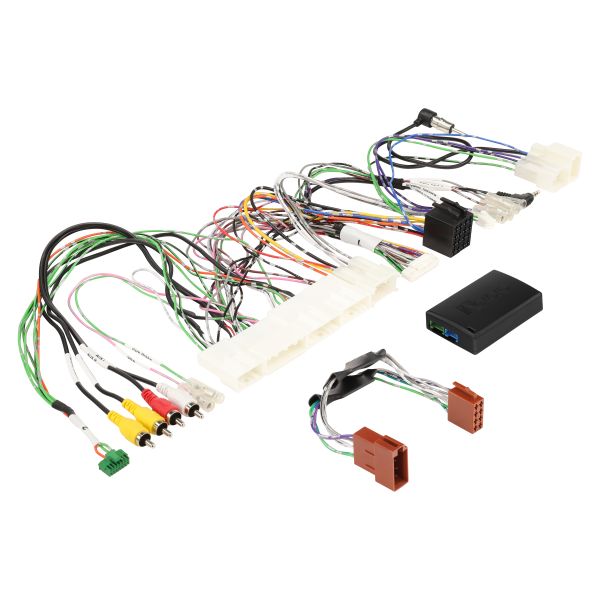

The Aerpro ASSU16C is a vehicle-specific CAN Bus steering wheel control interface designed for Subaru factory amplified models, enabling installation of an aftermarket head unit while retaining factory steering wheel controls and the factory JBL or Harman Kardon premium amplifier system without cutting the original vehicle wiring harness. The kit includes an antenna adaptor, reverse camera retention adaptor, and AUX retention leads.

The ASSU16C retains the factory JBL or Harman Kardon amplifier (if equipped), factory reverse camera (RCA reverse camera input required on the aftermarket head unit), factory AUX input (RCA AUX input required on the aftermarket head unit), and factory antenna via the included adaptor. Outputs include reverse trigger (purple), park brake (green), speed pulse (pink), illumination, and amplifier remote. The ASSU16C uses a Type H patch lead and CAN Bus interface type. Installation is further simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness, sold separately.

Note: steering wheel control interfaces vary between vehicle models. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. Aftermarket head unit must be SWC compatible. Steering wheel control functions may vary from OEM functions. Some compatible vehicles are head unit dependent for full feature retention.

Features & Benefits

Retains Factory JBL or Harman Kardon Amplifier - Where Equipped: The factory JBL or Harman Kardon premium amplifier is retained where fitted, preserving the factory premium speaker system performance with the new aftermarket head unit.

Retains Factory Steering Wheel Controls - No Cutting Required: The vehicle-specific CAN Bus plug connects directly into the factory wiring without cutting, retaining factory steering wheel audio controls when paired with a compatible aftermarket head unit.

Retains Factory Reverse Camera - RCA Input Required: Factory reverse camera output is retained where originally fitted. The aftermarket head unit must have an RCA reverse camera input.

Retains Factory AUX Input - RCA Input Required: Factory AUX input is retained where originally fitted. The aftermarket head unit must have an RCA AUX input.

Includes Antenna Adaptor: Converts the factory Subaru antenna plug to a universal DIN plug for connection to the aftermarket head unit without additional adaptors.

Reverse Trigger, Park Brake, Speed Pulse, Illumination, and Amplifier Remote Outputs: Full suite of outputs including amplifier remote for comprehensive aftermarket head unit and amplifier integration.

CAN Bus Interface - Type H Patch Lead: CAN Bus interface type with Type H patch lead for direct connection to a compatible aftermarket head unit.

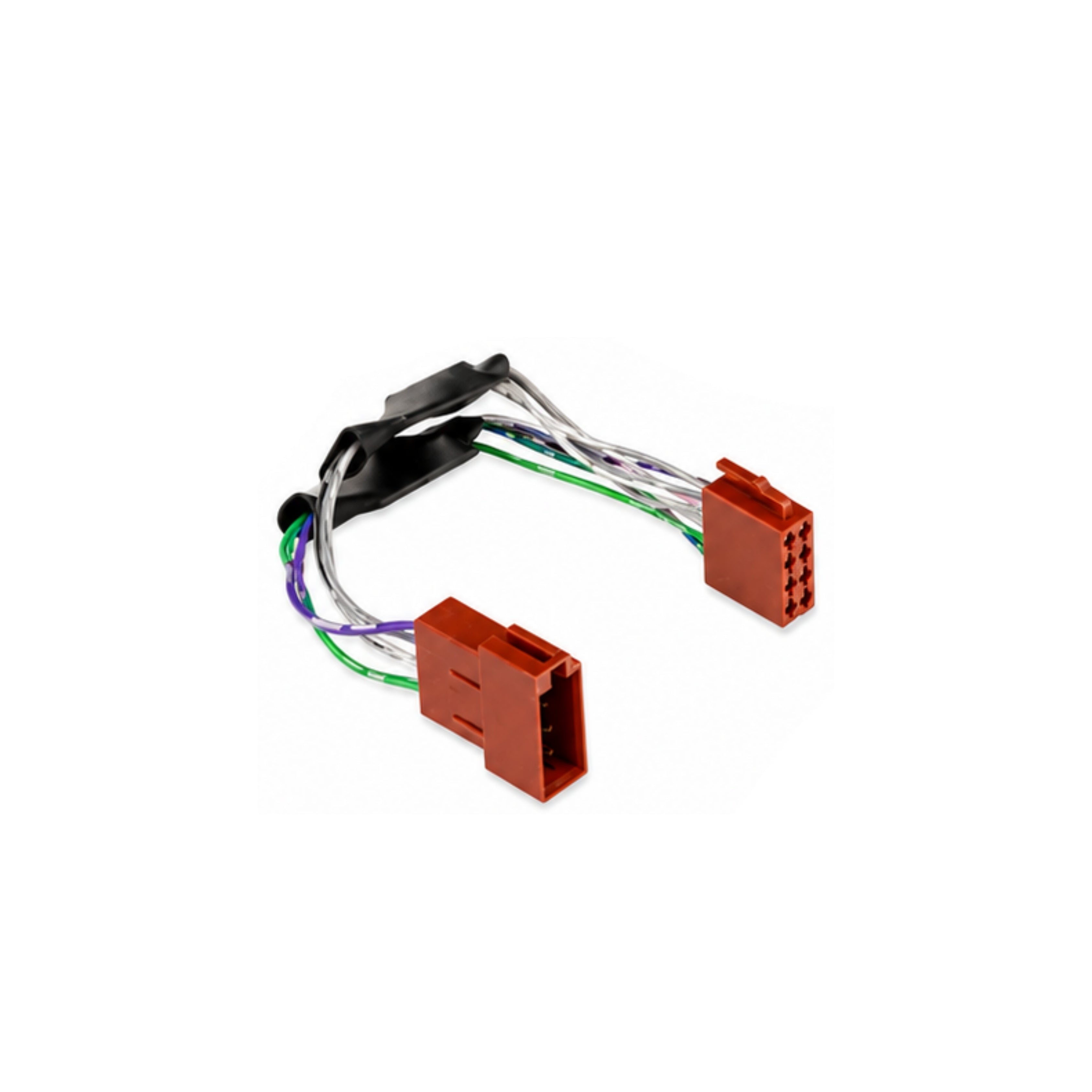

Recommended Pairing with Aerpro APP8: Installation is simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Technical Specs

Specification Detail
SKU ASSU16C
Brand Aerpro
Interface Type CAN Bus
Patch Lead Type Type H
Compatible Vehicles Select Subaru Factory Amplified Models
SWC Retention Yes
Reverse Trigger Output Yes (Purple Wire)
Park Brake Output Yes (Green Wire)
Speed Pulse Output Yes (Pink Wire)
Illumination Output Yes
Amplifier Remote Output Yes
Telephone Mute Output No
OEM Reverse Camera Retention Yes (Aftermarket HU Requires RCA Input)
OEM AUX Retention Yes (Aftermarket HU Requires RCA Input)
OEM USB Retention No
OEM Amplifier Retention Yes (JBL or Harman Kardon, Where Equipped)
OEM Antenna Retention Yes (Adaptor Included)
Vehicle Menus No
No-Cut Installation Yes (Vehicle-Specific Plug)
Weight 0.30kg

Compatible With

The ASSU16C suits select Subaru factory amplified vehicles. Steering wheel control interfaces vary between models. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. Aftermarket head unit must be SWC compatible. Some compatible vehicles are head unit dependent for full feature retention. Factory reverse camera retention requires an RCA reverse camera input on the aftermarket head unit. Factory AUX retention requires an RCA AUX input on the aftermarket head unit. The Aerpro APP8 Secondary ISO Harness is recommended and sold separately.

Compatible Vehicle Table

Make Model Variant Years Notes
Subaru Levorg VM 2016-2020 Head unit dependent
Subaru WRX All 2015-2021 Head unit dependent
Subaru Liberty (Legacy) All 2015-2020
Subaru Outback All 2015-2020

Frequently Asked Questions

Does the ASSU16C suit all Subaru models?

No. The ASSU16C is specifically designed for Subaru factory amplified models. It is confirmed for the Subaru Levorg VM 2016-2020, Subaru WRX 2015-2021, Subaru Liberty (Legacy) 2015-2020, and Subaru Outback 2015-2020. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.

What is the difference between the ASSU16C and the ASSU15C?

Both are CAN Bus SWC interfaces for Subaru with Type H patch leads. The ASSU16C is designed for Subaru factory amplified models and retains both JBL and Harman Kardon amplifier outputs as well as factory AUX input. The ASSU15C suits different Subaru models including the Liberty BM/BR 2009-2014 and Forester SK 2018 onwards and retains Harman Kardon only. Confirm which interface suits your specific Subaru model using the Aerpro Vehicle Selector before purchase.

Does the ASSU16C retain the factory JBL or Harman Kardon amplifier?

Yes, where the factory JBL or Harman Kardon amplifier is equipped. This preserves the factory premium speaker system performance with the new aftermarket head unit.

Does the ASSU16C require cutting the factory wiring harness?

No. The vehicle-specific plug connects directly into the existing factory wiring without cutting or permanently modifying the original harness.

Does the ASSU16C retain the factory reverse camera and AUX?

Yes, where originally fitted. Factory reverse camera retention requires an RCA reverse camera input on the aftermarket h
