Product features

Mazda Steering Wheel Control Interface Retains Factory Reverse Camera & Antenna, CANBUS, Centre Console Commander, Speed Pulse Output, No Factory Wiring Cut Required.

Product Overview

The Aerpro ASMZ7C is a CANBUS steering wheel control interface designed for Mazda vehicles. It allows an aftermarket head unit to be installed while retaining factory steering wheel controls and the centre console commander switch with no cutting of the factory wiring harness required. The vehicle-specific plug connects directly into the existing vehicle wiring.

The ASMZ7C retains the factory reverse camera (if equipped) and antenna, with reverse trigger, park brake, and speed pulse outputs provided. The centre console commander switch retains functionality for volume up/down, mute, and track forward/back other buttons function as MODE.

For Mazda vehicles with factory BOSE amplified systems, the APP7240 line converter is required and sold separately. Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified head unit installation.

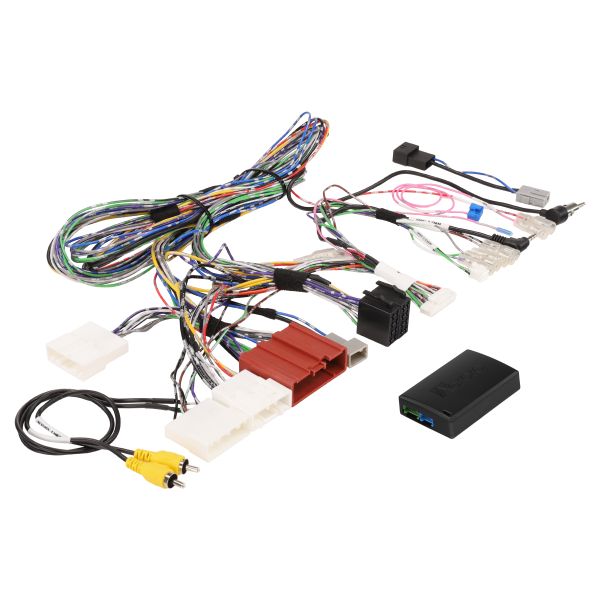

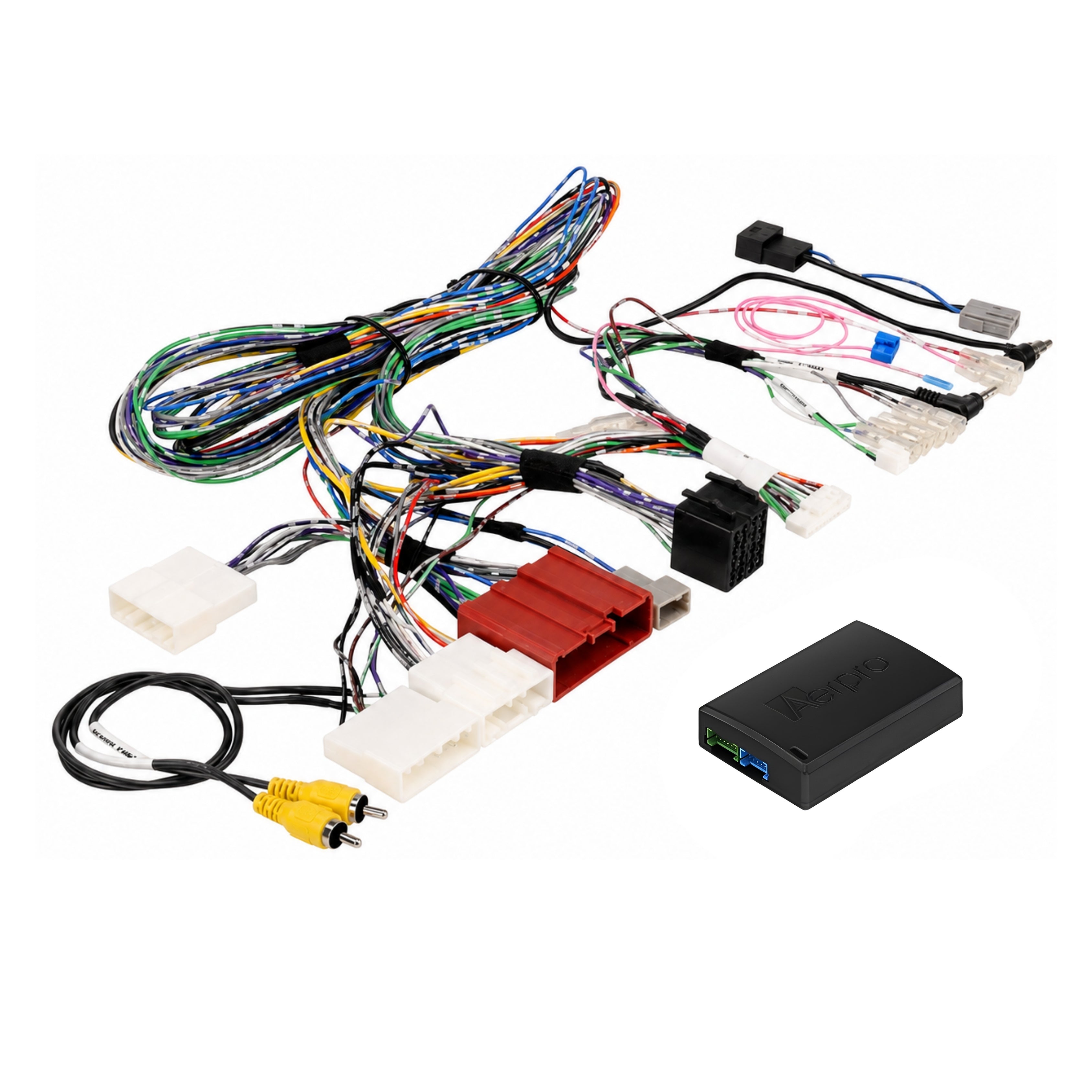

Kit Inclusions

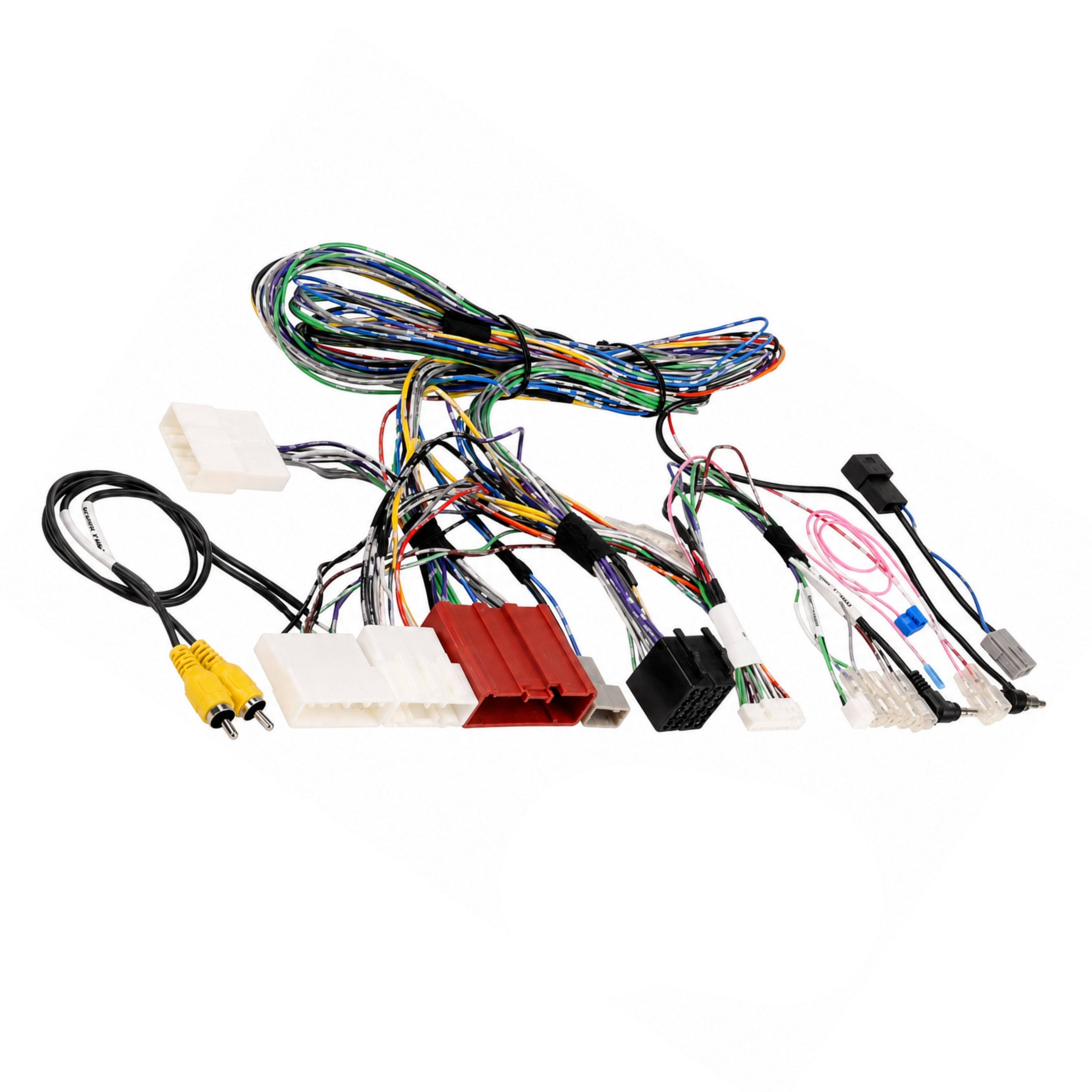

  • SWC Interface Harness (vehicle-specific Mazda plug)

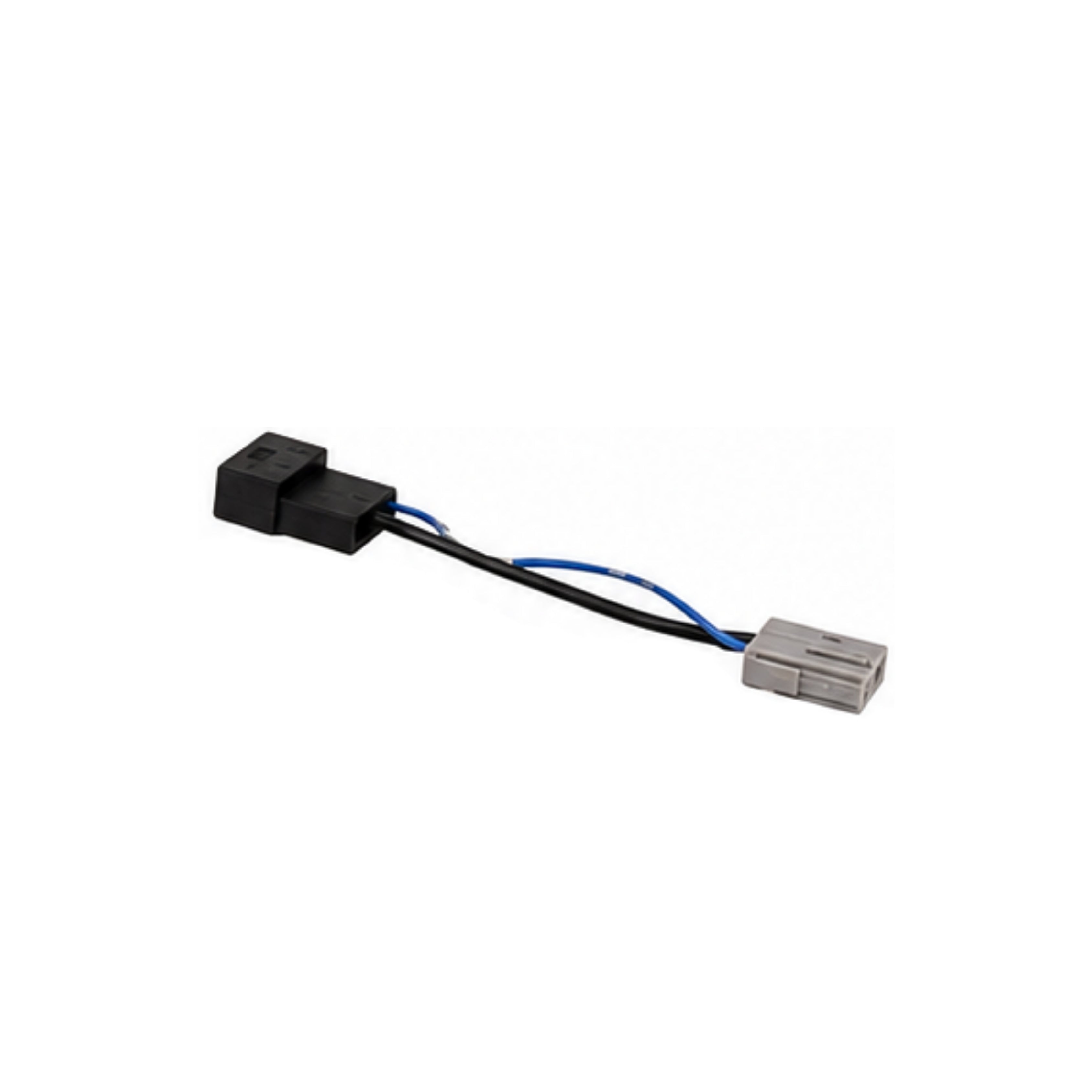

  • Antenna Adaptor
  • Reverse Camera Retention Adaptor

Retention & Output Summary

Feature Detail
Steering Wheel Controls Yes
Centre Console Commander Yes (Vol +/-, Mute, Track +/-, others = MODE)
Factory Reverse Camera Yes (if equipped RCA input required on HU)
Antenna Yes
OEM Amplifier (BOSE) Yes* APP7240 required (sold separately)
AUX Input No
USB Input No
Vehicle Menu No
Reverse Trigger Output Yes (purple wire)
Park Brake Output Yes (green wire)
Speed Pulse Output Yes (pink wire)
Illumination Yes
Ant Remote No
Telephone Mute No

Key Specifications

  • Interface type: CANBUS
  • Patch lead type: H
  • Suits: Mazda vehicles
  • No factory wiring cutting required
  • Brand: Aerpro
  • SKU: ASMZ7C

Features & Benefits

  • Retains factory SWC: Full steering wheel control retained on compatible aftermarket head units
  • Centre console commander retained: Volume up/down, mute, and track forward/back functions retained other buttons function as MODE
  • Retains factory reverse camera: If originally fitted aftermarket head unit requires RCA reverse camera input
  • Retains factory antenna: Antenna adaptor converts factory Mazda antenna to universal DIN for aftermarket radios
  • BOSE amplifier compatible: BOSE amplified Mazda models are supported with the APP7240 line converter (sold separately)
  • CANBUS interface: Direct CANBUS communication for accurate SWC signal reading
  • No factory wiring cuts: Vehicle-specific plug clean, reversible installation
  • Reverse trigger, park brake and speed pulse outputs: Full output set for compatible head units
  • Pairs with APP8: Optional Aerpro APP8 ISO Harness simplifies head unit connection (sold separately)

Technical Specs

Specification Detail
SKU ASMZ7C
Brand Aerpro
Interface Type CANBUS
Patch Lead Type H
Reverse Trigger Yes purple wire
Park Brake Yes green wire
Speed Pulse Yes pink wire
Illumination Yes
Ant Remote No
Telephone Mute No
Suits Mazda vehicles

Frequently Asked Questions

Does this interface work with Mazda's BOSE factory audio system?

Yes with the addition of the APP7240 line converter, sold separately. The BOSE amplified system is not retained without the APP7240.

What functions does the centre console commander retain?

Volume up/down, mute, and track forward/back are all retained. Other console commander buttons function as MODE.

Does this retain the factory USB or AUX inputs?

No USB and AUX input retention are not supported by the ASMZ7C.

Does this retain the factory reverse camera?

Yes if originally fitted. The aftermarket head unit must have an RCA reverse camera input.
