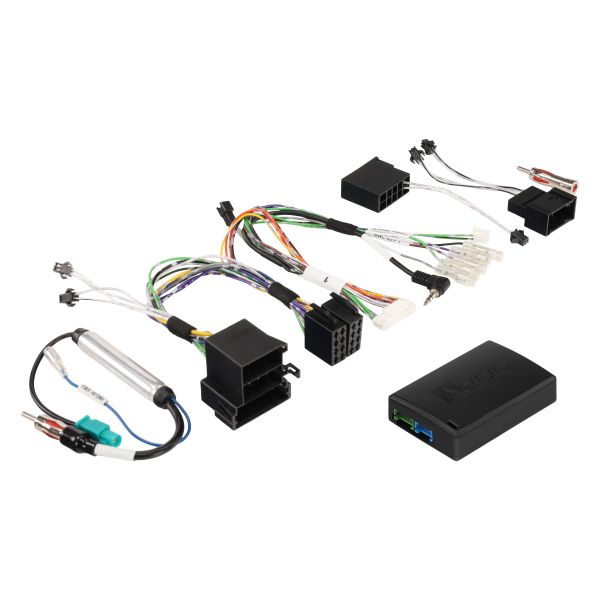

Aerpro ASMC3C SWC Interface Mercedes Antenna Reverse Trigger Type H
Click to open expanded view
AERPRO logo

Aerpro ASMC3C SWC Interface Mercedes Antenna Reverse Trigger Type H

SKU: ASMC3C
Price
$149.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro ASMC3C Steering Wheel Control Interface for Mercedes with Antenna Retention and Reverse Trigger

A CAN bus steering wheel control (SWC) interface from Aerpro for compatible Mercedes vehicles, the ASMC3C retains factory steering wheel controls and factory antenna, provides reverse trigger and park brake outputs, with a vehicle-specific plug for direct connection without cutting factory wiring and patch lead type H compatibility. A compatible SWC patch lead and APP8 secondary ISO harness are required separately.

Product Overview

The Aerpro ASMC3C is a CAN bus SWC interface engineered for compatible Mercedes vehicles, designed to retain factory steering wheel control function during aftermarket head unit installation. The vehicle-specific plug connects directly into the existing wiring in the vehicle with no cutting or modification to the factory harness required. The ASMC3C retains the factory antenna via the included antenna adaptor, and provides reverse trigger (purple wire) and park brake (green wire) outputs for connection to the aftermarket head unit. Installation is simplified when paired with the Aerpro APP8 Secondary ISO Harness (sold separately). A compatible type H SWC patch lead is required separately for SWC function. The ASMC3C also provides an illumination output.

Note: the ASMC3C does not retain factory amplifier, reverse camera, AUX input, or USB input.

Features & Benefits

Retains Factory Steering Wheel Controls: Enables retention of factory steering wheel audio controls when upgrading to a compatible aftermarket head unit, keeping hands on the wheel and eyes on the road.

CAN Bus Interface: CAN bus communication decodes the factory Mercedes steering wheel control signals for compatibility with aftermarket head units when paired with a compatible type H SWC patch lead.

Vehicle-Specific Plug - No Cutting of Factory Wiring: The harness plugs directly into the factory Mercedes wiring connector without cutting, splicing, or permanently modifying the original wiring harness.

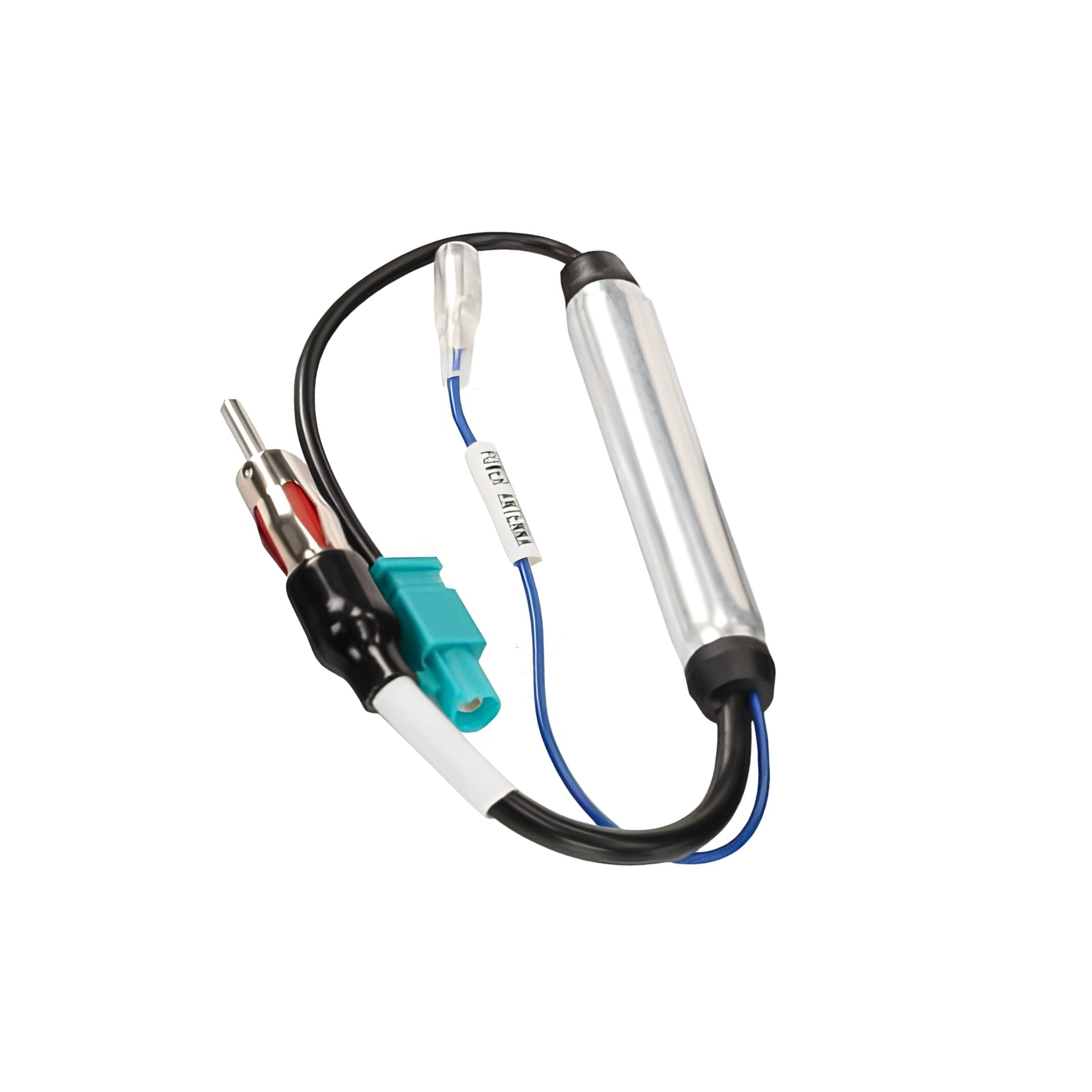

Factory Antenna Retention: The ASMC3C includes an antenna adaptor that converts the factory Mercedes antenna connection to a standard DIN plug for connection to the aftermarket head unit.

Reverse Trigger Output (Purple) and Park Brake Output (Green): The ASMC3C provides a reverse trigger output (purple wire) for triggering the aftermarket head unit's reverse camera input, and a park brake output (green wire) for connection to the aftermarket head unit's park brake wire.

Illumination Output: Provides an illumination output for connection to the aftermarket head unit's illumination wire.

Recommended Pairing with Aerpro APP8: Installation is simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately), which connects between the aftermarket head unit and the SWC interface.

Technical Specs

Specification Detail
SKU ASMC3C
Brand Aerpro
Category SWC Harness Type H
Compatible Brand Mercedes
Interface Type CAN Bus
Patch Lead Type H
Reverse Trigger Output Yes (Purple Wire)
Park Brake Output Yes (Green Wire)
Illumination Output Yes
Speed Pulse Output No
Amp Remote Output No
Telephone Mute No
OEM Antenna Retention Yes (Adaptor Included)
OEM Amplifier Retention No
OEM Reverse Camera Retention No
OEM AUX Input Retention No
OEM USB Input Retention No
Vehicle Menus No
SWC Patch Lead Required Yes (Type H, Sold Separately)
Recommended Secondary Harness Aerpro APP8 (Sold Separately)
Barcode 9317114955890

Compatible With

Compatible with select Mercedes vehicles. Steering Wheel Control Interfaces vary between models. Use the Aerpro Vehicle Selector at aerpro.com to confirm compatibility with your specific Mercedes vehicle before purchase. The aftermarket head unit must be SWC compatible. Steering wheel control functions may vary from OEM functions.

Frequently Asked Questions

Does the ASMC3C require a SWC patch lead?

Yes. A compatible type H SWC patch lead is required separately for the steering wheel control function to operate with the aftermarket head unit.

Does the ASMC3C provide a reverse trigger output?

Yes. The ASMC3C provides a reverse trigger output on the purple wire for connection to the reverse camera trigger input on the aftermarket head unit.

Does the ASMC3C retain the factory antenna?

Yes. The ASMC3C includes an antenna adaptor that converts the factory Mercedes antenna connection to a standard DIN plug for the aftermarket head unit.

Does the ASMC3C retain the factory reverse camera or amplifier?

No. The ASMC3C does not retain the factory reverse camera, factory amplifier, AUX input, or USB input.

Does the ASMC3C require cutting the factory wiring harness?

No. The vehicle-specific plug connects directly into the factory Mercedes wiring without cutting or modifying the original harness.
