Aerpro ASMB11C Steering Wheel Control Interface Suit Honda
Click to open expanded view
AERPRO logo

Aerpro ASMB11C Steering Wheel Control Interface Suit Honda

SKU: ASMB11C
Price
$439.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Full Factory Feature Retention When You Upgrade Your Honda's Head Unit

Product Overview

The Aerpro ASMB11C is a CAN bus steering wheel control (SWC) interface engineered for a range of Honda vehicles. It allows you to install an aftermarket head unit while retaining your factory steering wheel controls, Rockford Fosgate amplified sound system, reverse camera (including 360-degree where fitted), factory antenna, AUX input, and dual USB inputs all without cutting the factory wiring harness.

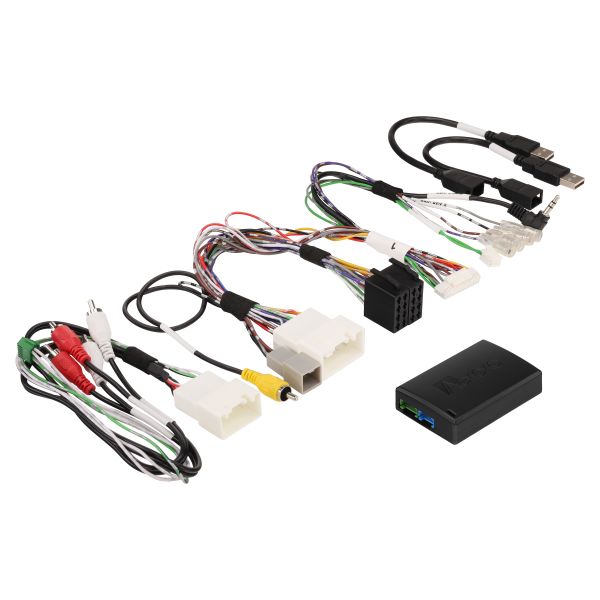

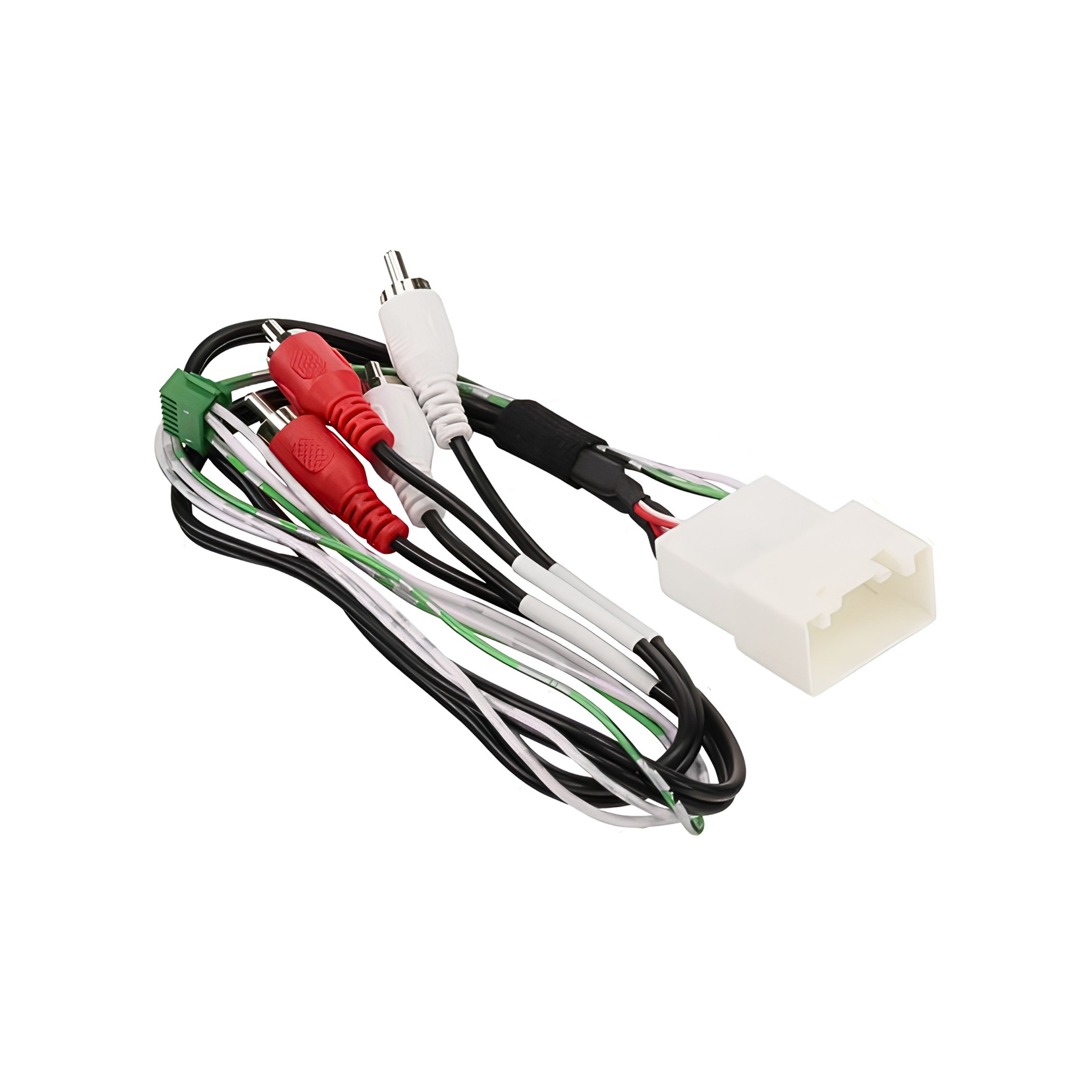

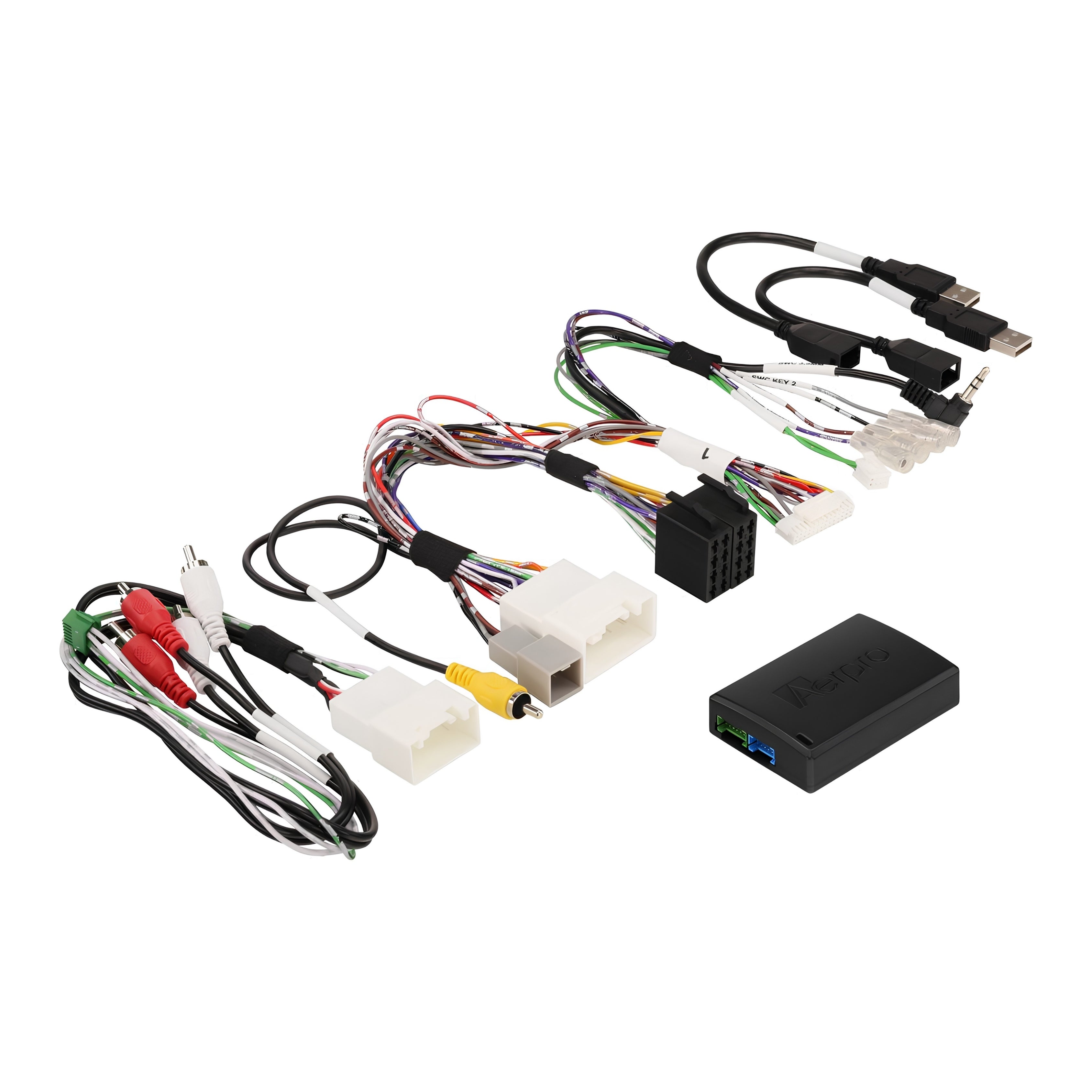

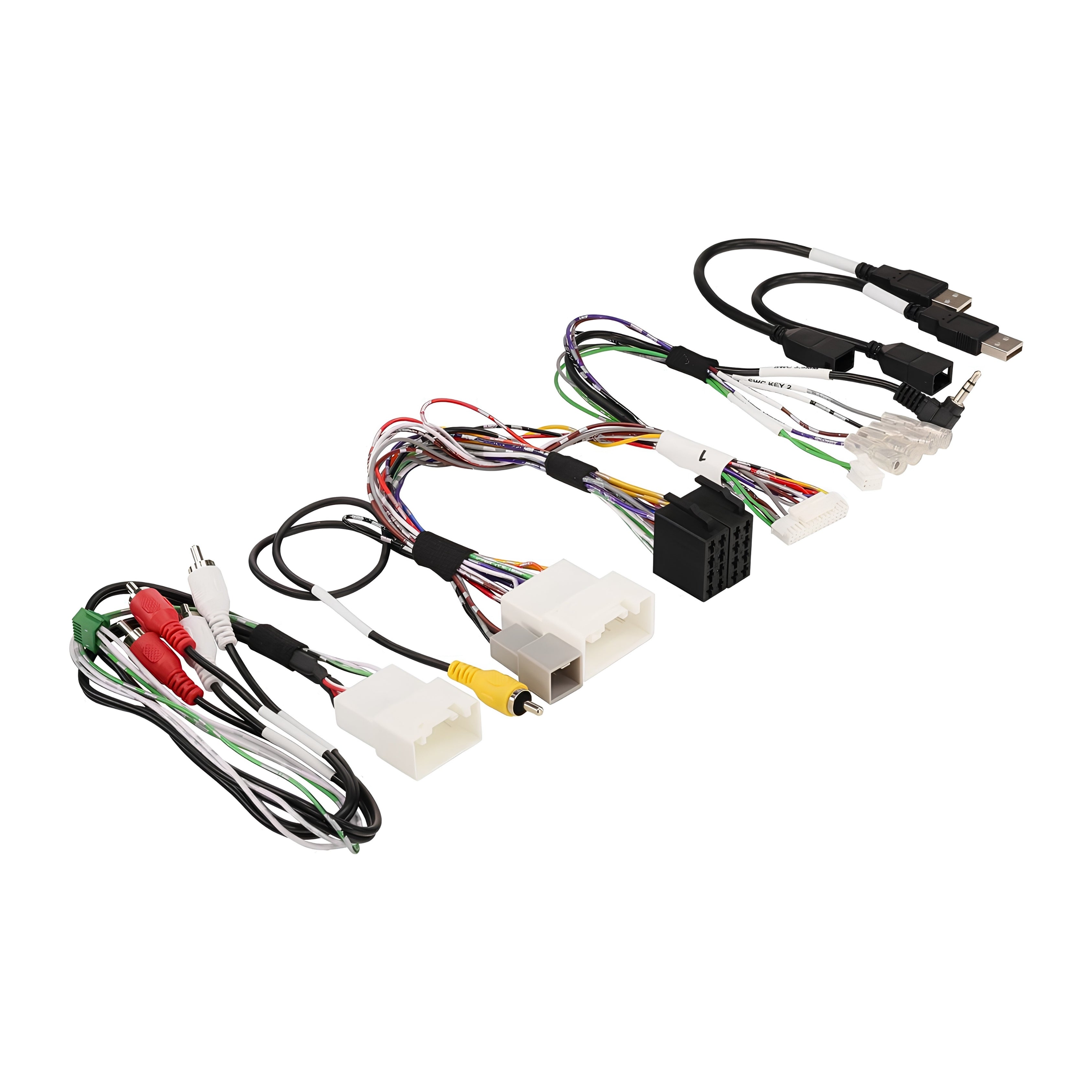

The ASMB11C connects via a vehicle-specific plug that drops straight into the existing wiring, and the kit includes a reverse camera retention adaptor (360-degree compatible) and AUX and USB retention leads. It provides reverse trigger (purple) and park brake (green) output feeds for compatible head units, along with an illumination output. For a complete installation, Aerpro recommends pairing the ASMB11C with the APP8 Head Unit Secondary ISO Harness, sold separately.

Features & Benefits

  • Retains factory steering wheel controls — upgrade your head unit without losing steering wheel audio functions
  • Retains factory Rockford Fosgate amplifier — keeps the factory amp in the signal chain where equipped
  • Retains factory reverse camera including 360-degree — where originally fitted; aftermarket head unit requires RCA reverse camera input
  • Retains factory antenna — OEM antenna retention supported (confirm antenna adaptor inclusion with supplier)
  • Retains factory AUX input — where originally fitted; aftermarket head unit requires rear RCA for AUX input
  • Retains factory dual USB inputs — where originally fitted; aftermarket head unit requires rear USB inputs
  • Reverse trigger output — provides reverse trigger feed (purple wire) for compatible head units
  • Park brake output — provides park brake feed (green wire) for compatible head units
  • Illumination output — retains factory illumination feed
  • CAN bus interface — communicates directly with the vehicle's CAN bus network; patch lead type H
  • Vehicle-specific plug — direct plug-in connection; no cutting or splicing of factory wiring required
  • Retention hardware included — 360-degree camera retention adaptor and AUX and USB retention leads in the kit
  • Pairs with APP8 harness — install alongside the Aerpro APP8 Head Unit Secondary ISO Harness for a simplified full installation (sold separately)

Technical Specs

Specification Detail
Part Number ASMB11C
Brand Aerpro
Interface Type CAN Bus
Patch Lead Type H
Vehicle Fit Various Honda (see Aerpro Vehicle Selector)
Reverse Trigger Output Yes (purple wire)
Park Brake Output Yes (green wire)
Speed Pulse Output No
Illumination Output Yes
Amp Remote Output No
Telephone Mute Output No
Vehicle Menus Retention No
OEM Amplifier Retention Yes (Rockford Fosgate)
OEM Reverse Camera Retention Yes (including 360-degree)
OEM AUX Input Retention Yes
OEM USB Input Retention Yes (x2)
OEM Antenna Retention Yes
Included Accessories 360° camera retention adaptor, AUX & USB retention leads
Recommended Accessory Aerpro APP8 (sold separately)

Compatible With

Engineered for various Honda vehicles — use the Aerpro Vehicle Selector to confirm your specific model and year before purchasing. Key compatibility notes:

  • Aftermarket head unit must be SWC compatible
  • Aftermarket head unit requires RCA reverse camera input to retain factory reverse and 360-degree cameras
  • Aftermarket head unit requires rear RCA input to retain factory AUX
  • Aftermarket head unit requires rear USB inputs to retain factory dual USB

Steering wheel control functions may vary from the original OEM functions depending on the head unit installed.

Weight

Confirm with supplier.

Frequently Asked Questions

Which Honda models does the ASMB11C fit?

The ASMB11C suits various Honda models. Use the Aerpro Vehicle Selector to confirm compatibility with your specific vehicle make, model, and year before purchasing, as fitment varies between variants.

Does this interface retain the factory Rockford Fosgate amplifier?

Yes, the factory Rockford Fosgate amplifier is retained where the vehicle is equipped with one.

Does this interface retain the factory reverse camera?

Yes, provided the camera was originally fitted. The ASMB11C retains the factory reverse camera including 360-degree camera systems. The aftermarket head unit must have an RCA reverse camera input to utilise this feature.

Do I need to cut any factory wiring?

No. The ASMB11C uses a vehicle-specific plug that connects directly into the existing factory wiring harness without cutting or splicing.

What is the APP8 harness and do I need it?

The Aerpro APP8 is a head unit secondary ISO harness that connects between the aftermarket head unit and the ASMB11C interface, simplifying the overall installation. It is sold separately and while not mandatory, Aerpro recommends it for a cleaner, more straightforward install.
