Aerpro ASIZ4C SWC Interface Harness for Isuzu and Mazda Vehicles
Click to open expanded view
AERPRO logo

Aerpro ASIZ4C SWC Interface Harness for Isuzu and Mazda Vehicles

SKU: ASIZ4C
Price
$179.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

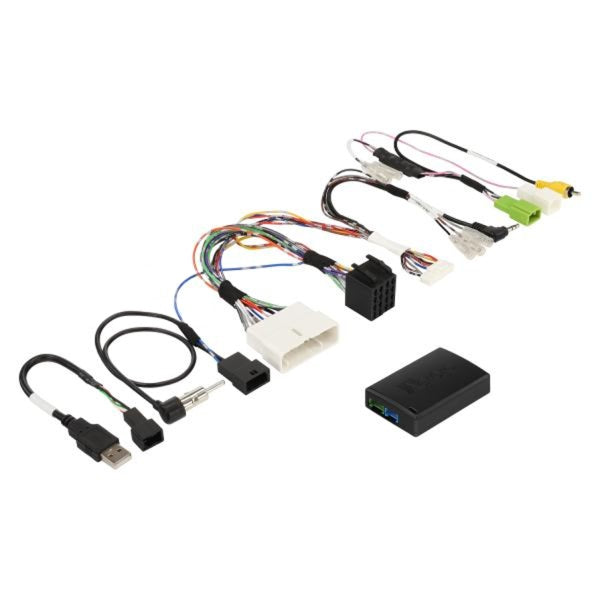

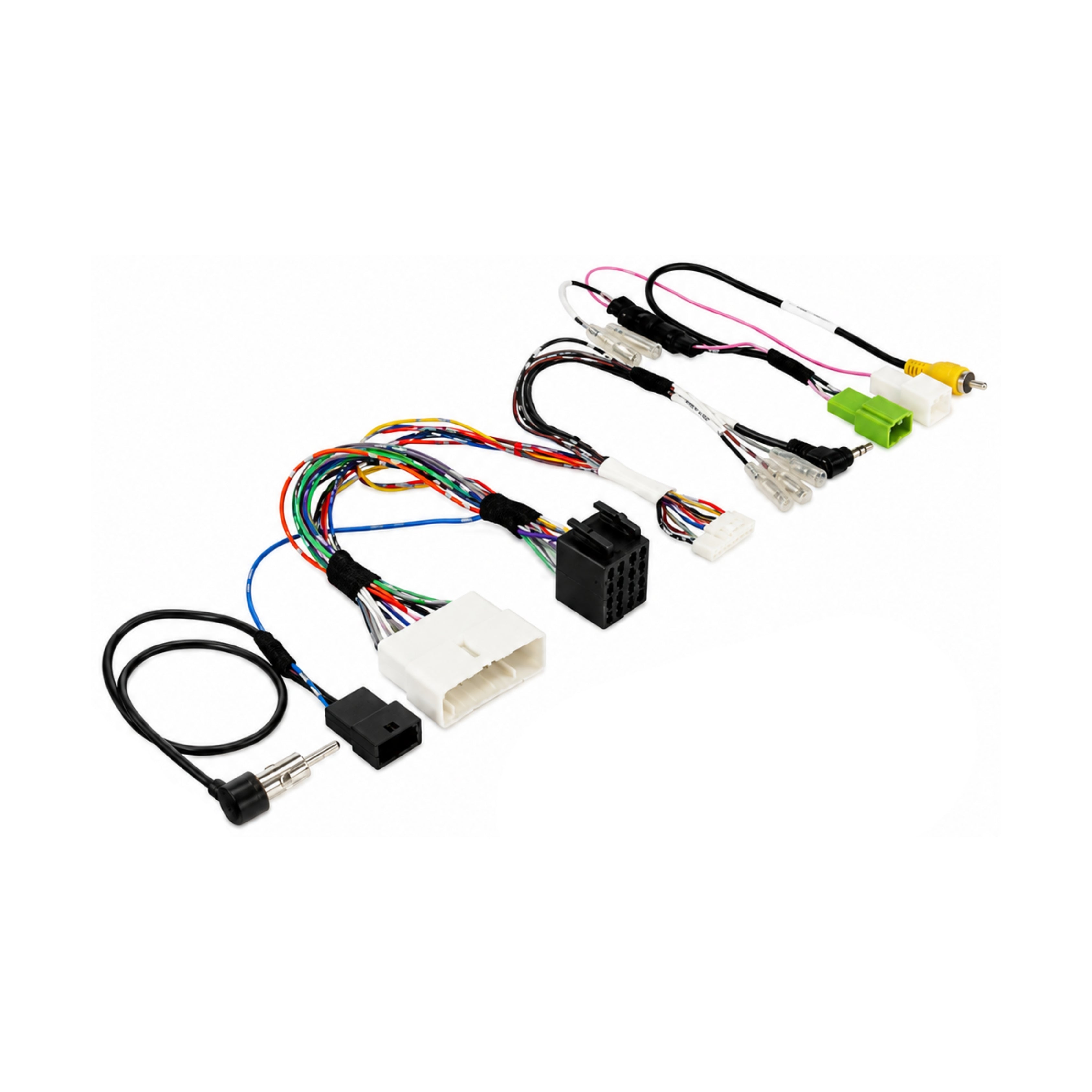

Aerpro ASIZ4C Steering Wheel Control Interface Harness for Isuzu and Mazda

A CAN Bus steering wheel control interface harness from Aerpro, the ASIZ4C suits Isuzu and Mazda vehicles and retains factory steering wheel controls, factory reverse camera (if originally fitted), factory USB input (if originally fitted), and factory antenna, with a reverse trigger output, vehicle-specific plug for no-cut installation, and Type H patch lead. Recommended for installation with the Aerpro APP8 Secondary ISO Harness (sold separately).

Product Overview

The Aerpro ASIZ4C is a vehicle-specific CAN Bus steering wheel control interface designed for Isuzu and Mazda vehicles, enabling the installation of an aftermarket head unit while retaining factory steering wheel control functionality without cutting the original vehicle wiring harness. The vehicle-specific plug connects directly into the existing factory wiring for a clean, reversible installation.

In addition to steering wheel control retention, the ASIZ4C retains the factory reverse camera output (RCA reverse camera input required on the aftermarket head unit), factory USB input (rear USB input required on the aftermarket head unit), and factory antenna via the included antenna adaptor. A reverse trigger output (pink wire) is provided. The ASIZ4C uses a Type H patch lead and is a CAN Bus interface type. Installation is further simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness, sold separately.

Note: steering wheel control interfaces vary between vehicle models. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. Aftermarket head unit must be SWC compatible. Steering wheel control functions may vary from OEM functions.

Features & Benefits

Retains Factory Steering Wheel Controls - No Cutting Required: The vehicle-specific CAN Bus plug connects directly into the factory wiring without cutting, retaining factory steering wheel audio controls when paired with a compatible aftermarket head unit.

Retains Factory Reverse Camera - RCA Input Required: Factory reverse camera output is retained where originally fitted. The aftermarket head unit must have an RCA reverse camera input.

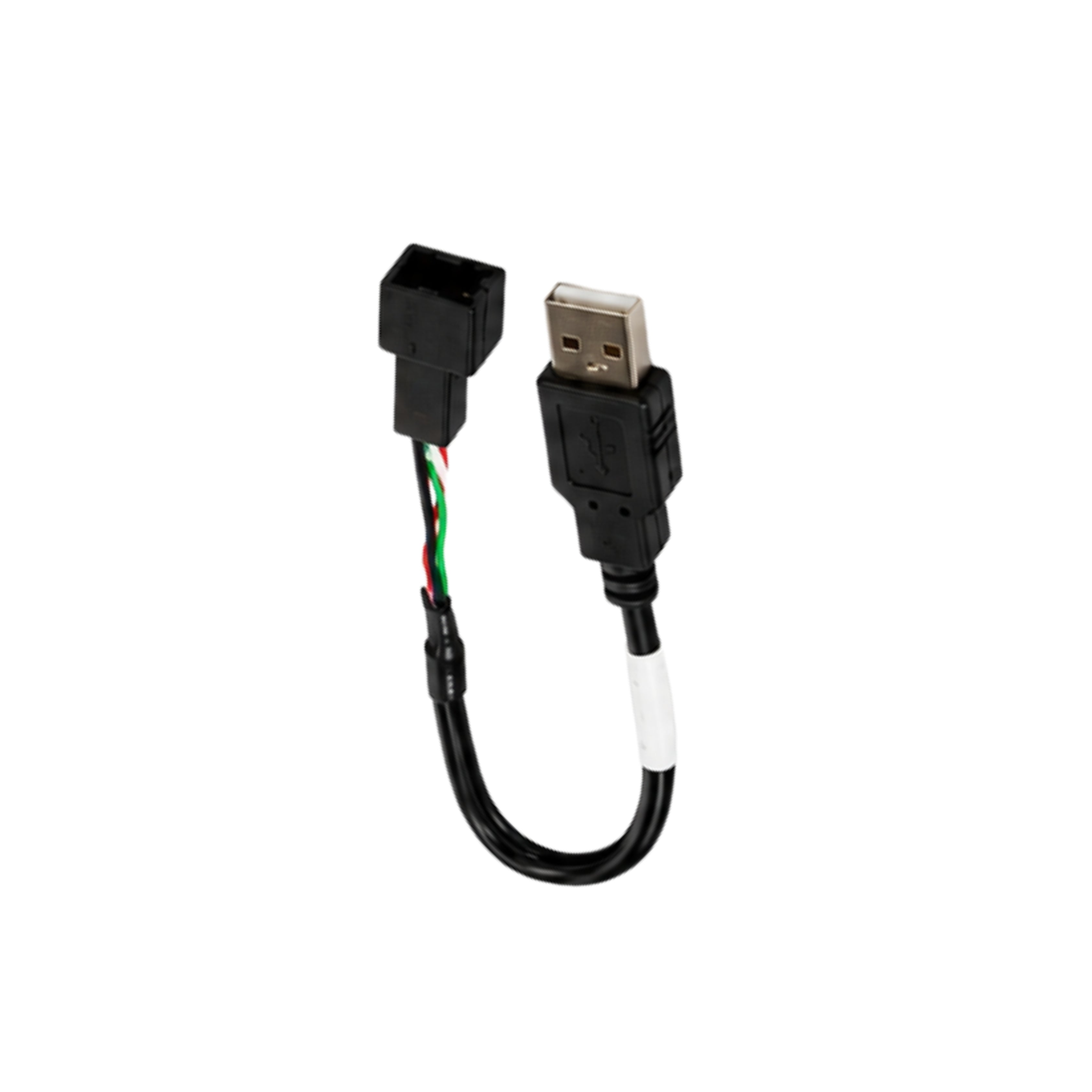

Retains Factory USB Input - Rear USB Required: Factory USB input is retained where originally fitted. The aftermarket head unit must have a rear USB input.

Includes Antenna Adaptor: Converts the factory vehicle antenna plug to a universal DIN plug for connection to the aftermarket head unit without additional adaptors.

Reverse Trigger Output: Provides a reverse trigger output (pink wire) for connection to the aftermarket head unit's reverse trigger input.

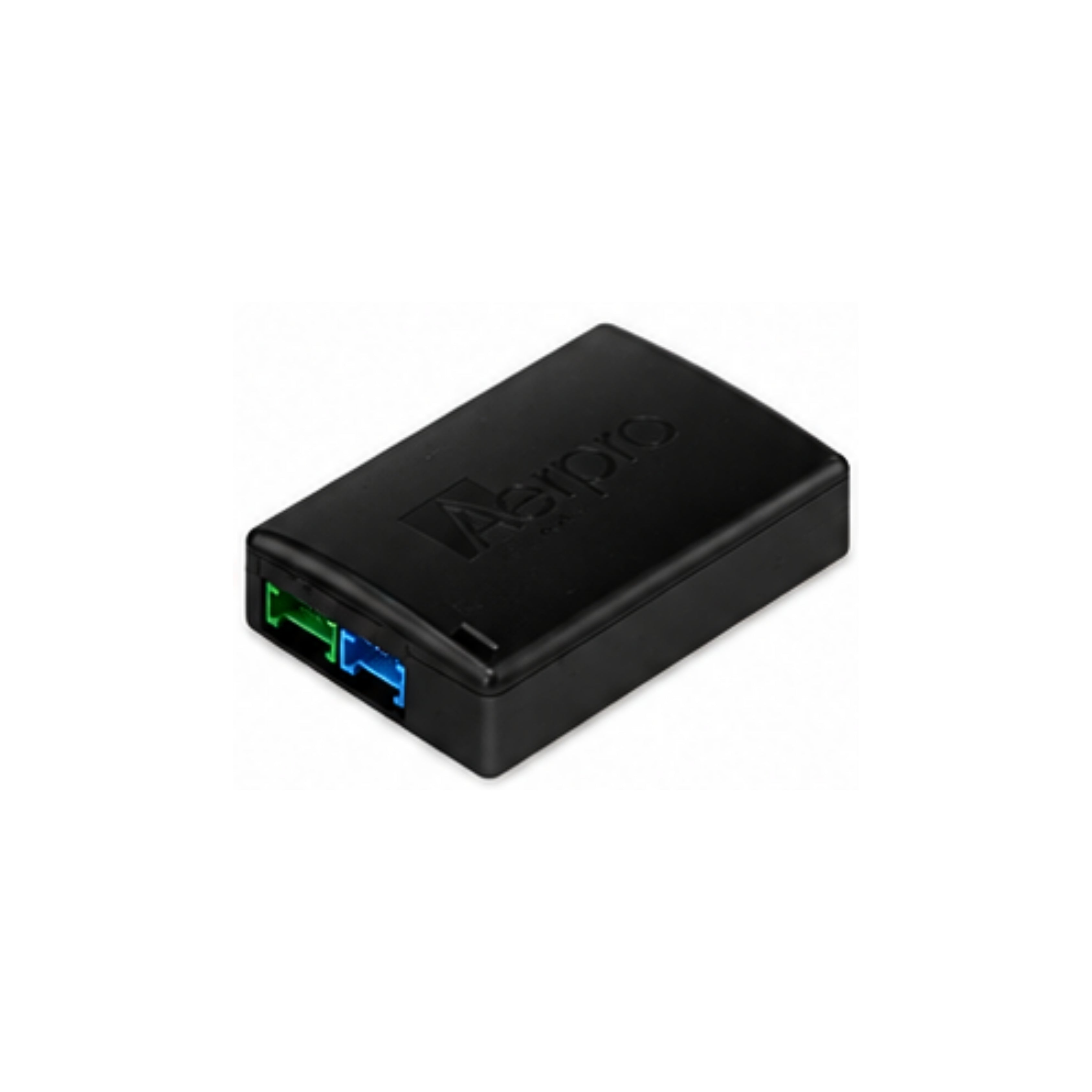

CAN Bus Interface - Type H Patch Lead: CAN Bus interface type with Type H patch lead for direct connection to a compatible aftermarket head unit.

Recommended Pairing with Aerpro APP8: Installation is simplified when paired with the Aerpro APP8 Head Unit Secondary ISO Harness (sold separately), which connects between the aftermarket head unit and the ASIZ4C.

Technical Specs

Specification Detail
SKU ASIZ4C
Brand Aerpro
Interface Type CAN Bus
Patch Lead Type Type H
Compatible Vehicles Isuzu, Mazda
SWC Retention Yes
Reverse Trigger Output Yes (Pink Wire)
Park Brake Output No
Speed Pulse Output No
Illumination Output Yes
Antenna Remote Output No
Telephone Mute Output No
OEM Reverse Camera Retention Yes (Aftermarket HU Requires RCA Input)
OEM USB Retention Yes (Aftermarket HU Requires Rear USB)
OEM Antenna Retention Yes (Adaptor Included)
OEM Amplifier Retention No
OEM AUX Retention No
Vehicle Menus No
No-Cut Installation Yes (Vehicle-Specific Plug)
Weight 0.30kg

Compatible With

The ASIZ4C suits Isuzu and Mazda vehicles. Steering wheel control interfaces vary between models. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. Aftermarket head unit must be SWC compatible. The Aerpro APP8 Secondary ISO Harness is recommended for installation and is sold separately. Factory reverse camera retention requires an RCA reverse camera input on the aftermarket head unit. Factory USB retention requires a rear USB input on the aftermarket head unit.

Frequently Asked Questions

Does the ASIZ4C suit all Isuzu and Mazda models?

Steering wheel control interfaces vary between vehicle models. The ASIZ4C suits specific Isuzu and Mazda variants. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle and model year before purchase.

Does the ASIZ4C require cutting the factory wiring harness?

No. The vehicle-specific plug connects directly into the existing factory wiring without cutting or permanently modifying the original harness.

Does the ASIZ4C retain the factory reverse camera?

Yes, where the factory reverse camera is originally fitted. The aftermarket head unit must have an RCA reverse camera input for the factory camera feed to be retained.

What is the Aerpro APP8 and why is it recommended?

The Aerpro APP8 Head Unit Secondary ISO Harness connects between the aftermarket head unit and the ASIZ4C interface, simplifying installation by providing a standardised plug connection point. It is sold separately.

What aftermarket head units are compatible with the ASIZ4C?

The aftermarket head unit must be SWC compatible and must support the Type H patch lead input used by the ASIZ4C. Steering wheel control functions available may vary from OEM functions depending on the head unit. Confirm compatibility with your specific head unit before purchase.
