Aerpro ASHY16C Hyundai Kia Steering Wheel Control Interface Camera AUX USB Antenna
Click to open expanded view
AERPRO logo

Aerpro ASHY16C Hyundai Kia Steering Wheel Control Interface Camera AUX USB Antenna

SKU: ASHY16C
Price
$279.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Hyundai & Kia Steering Wheel Control Interface Retains Factory Reverse Camera, AUX, USB & Antenna, CANBUS, No Factory Wiring Cut Required.

Product Overview

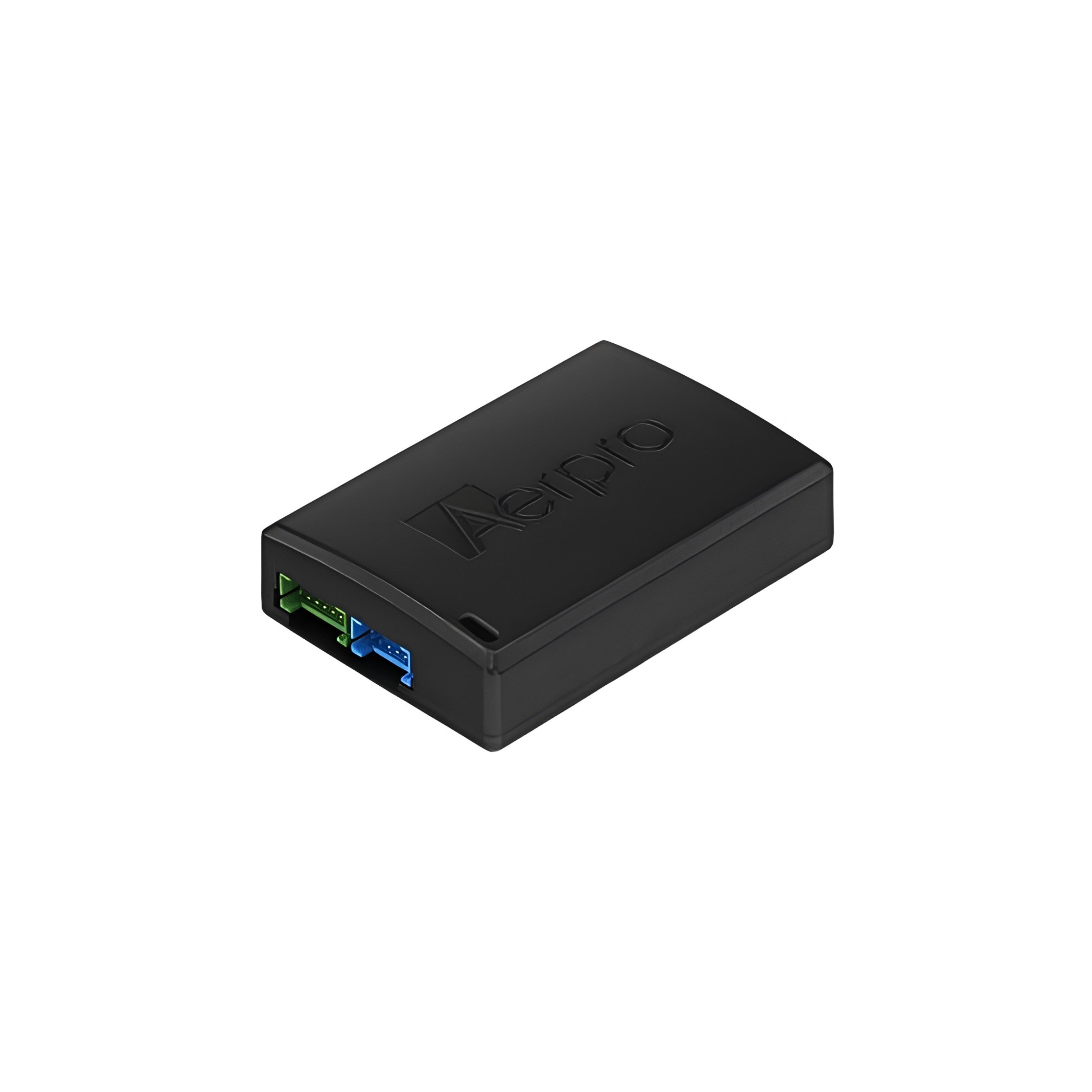

The Aerpro ASHY16C is a CANBUS steering wheel control interface designed for Hyundai and Kia vehicles. It allows an aftermarket head unit to be installed while retaining factory steering wheel controls with no cutting of the factory wiring harness required. The vehicle-specific plug connects directly into the existing vehicle wiring.

Beyond SWC retention, the ASHY16C also retains the factory reverse camera (if equipped), factory AUX input, factory USB input, and factory antenna. An antenna adaptor is included to convert the factory antenna plug to a universal DIN plug. Reverse trigger and park brake outputs are provided.

Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified installation between this interface and the head unit.

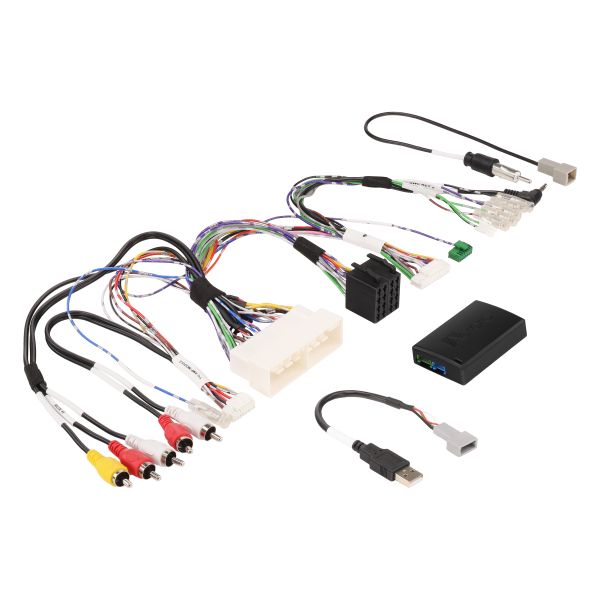

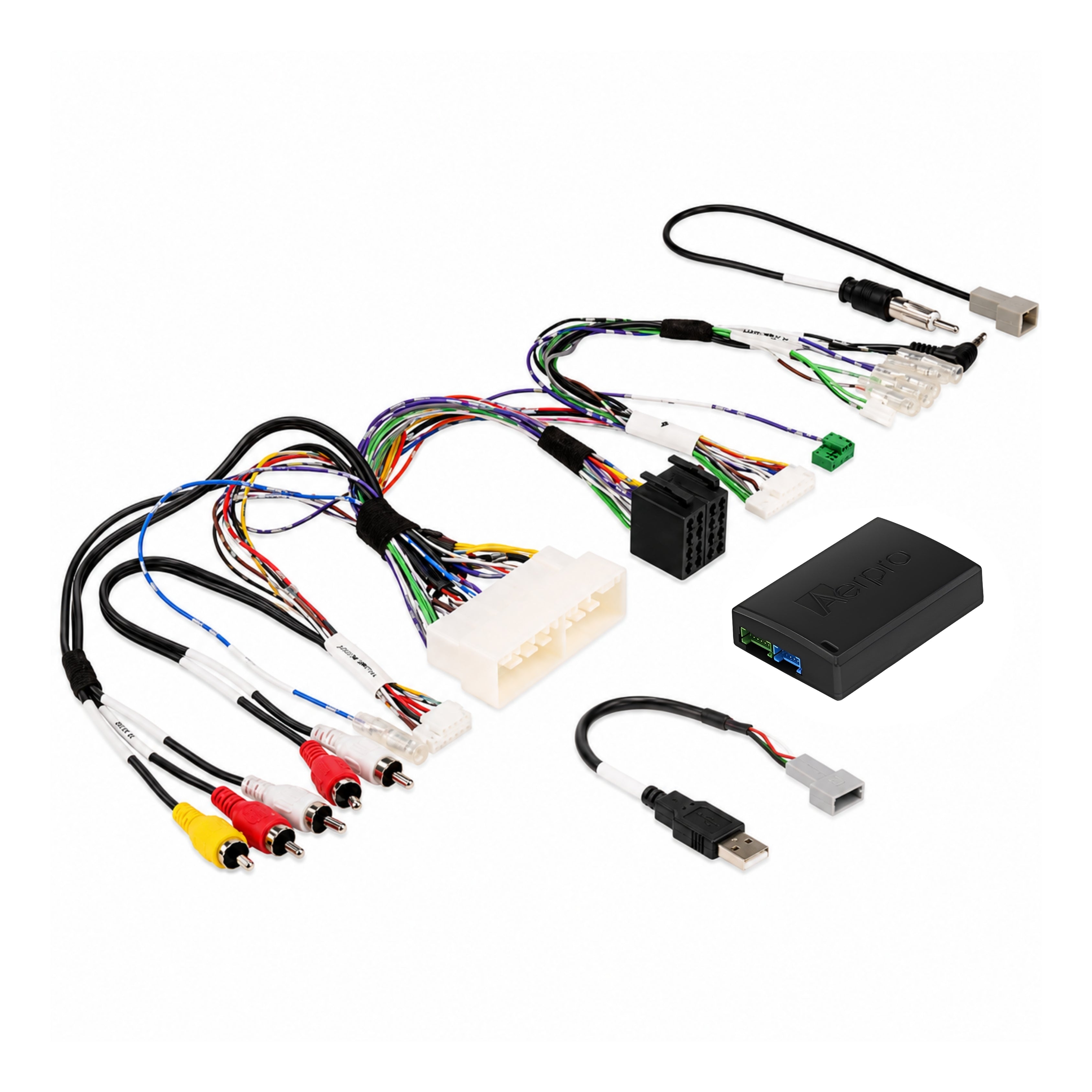

Kit Inclusions

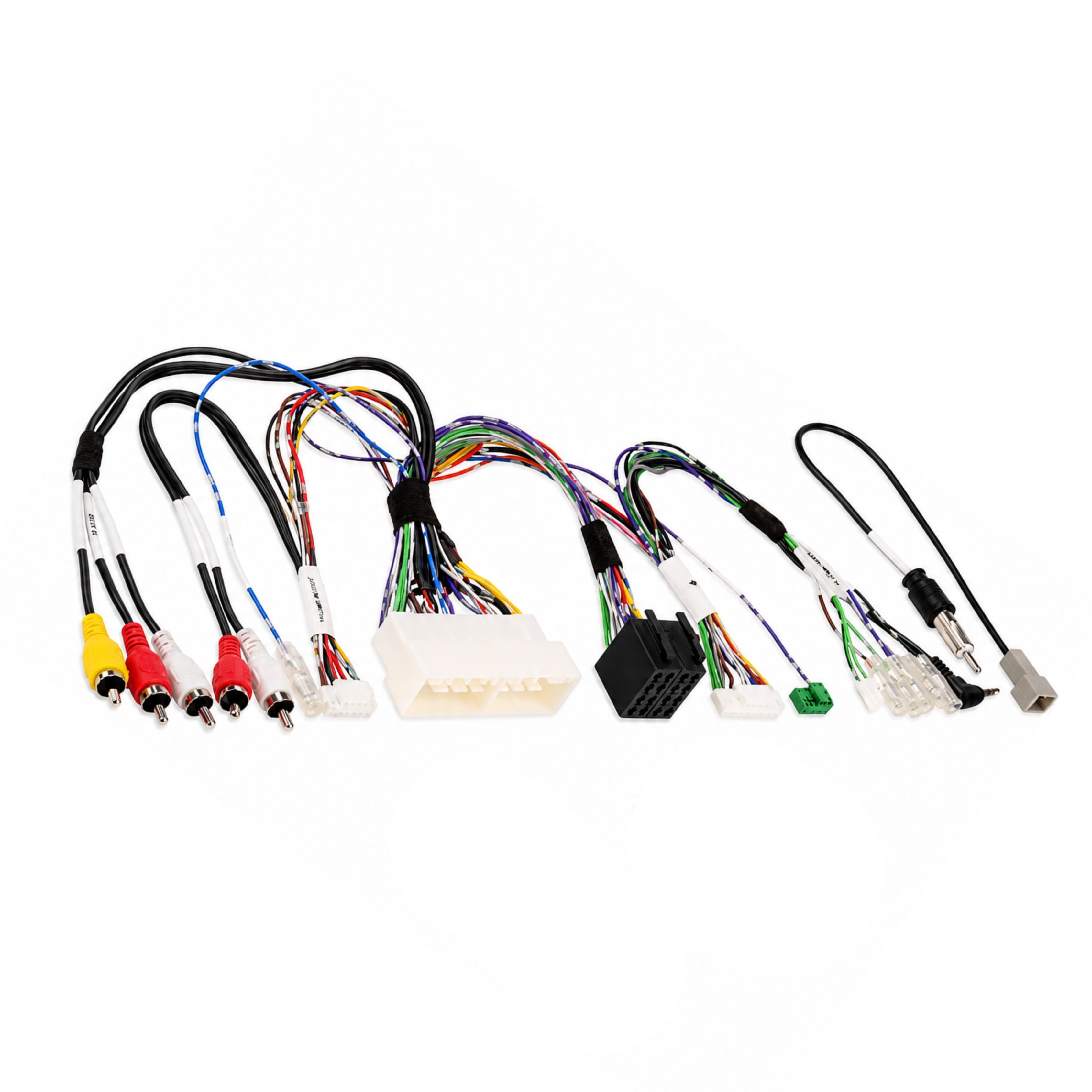

  • SWC Interface Harness (vehicle-specific Hyundai/Kia plug)
  • Antenna Adaptor
  • Reverse Camera Retention Adaptor
  • AUX Retention Lead

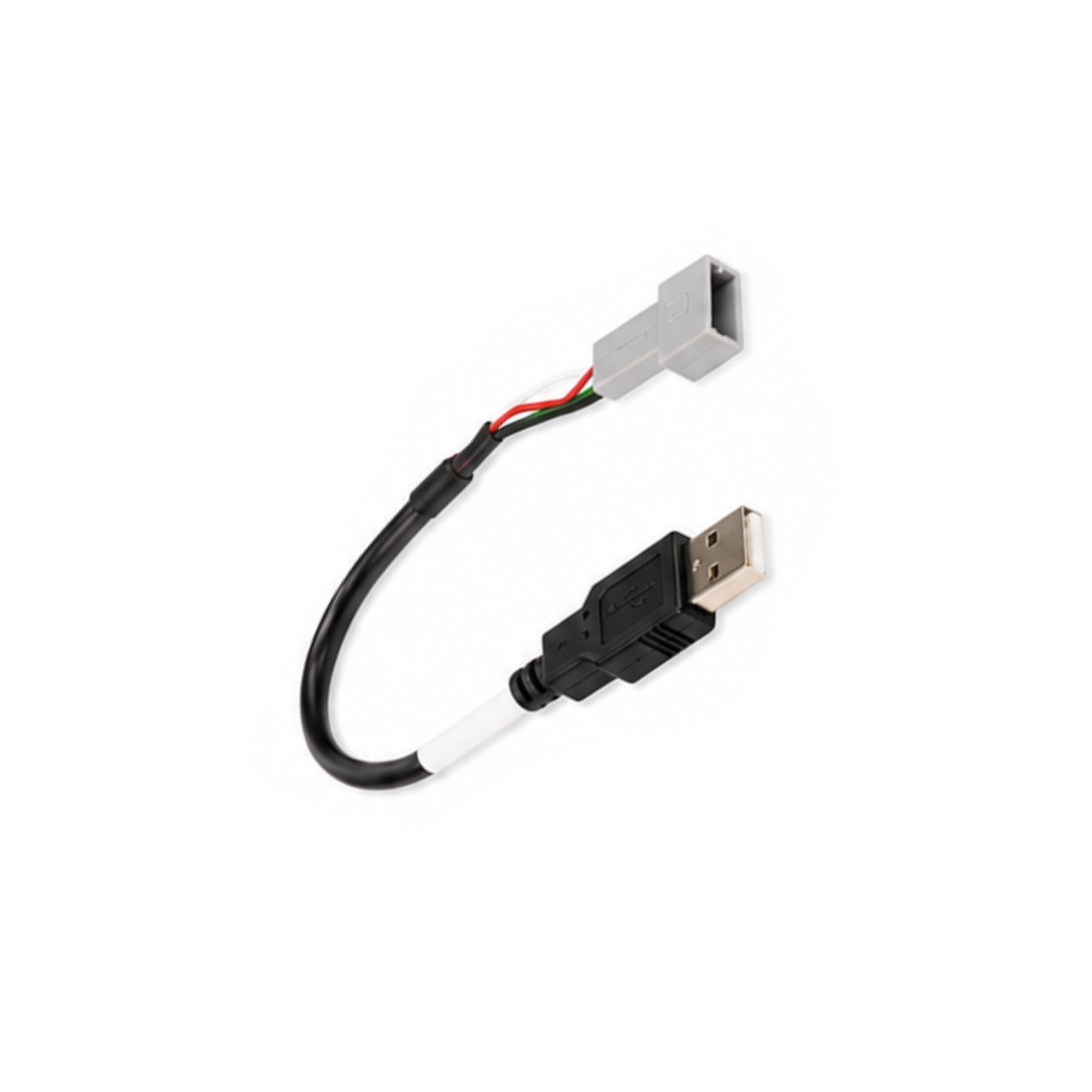

  • USB Retention Lead

Retention & Output Summary

Feature Detail
Steering Wheel Controls Yes
Factory Reverse Camera Yes (if equipped RCA input required on HU)
AUX Input Yes (if equipped RCA AUX required on HU)
USB Input Yes (if equipped rear USB required on HU)
Antenna Yes
Vehicle Menu No
OEM Amplifier No
Reverse Trigger Output Yes (purple wire)
Park Brake Output Yes (green wire)
Speed Pulse No
Illumination Yes
Amp Remote No
Telephone Mute No

Key Specifications

  • Interface type: CANBUS
  • Patch lead type: H
  • Suits: Hyundai and Kia vehicles
  • No factory wiring cutting required
  • Brand: Aerpro
  • SKU: ASHY16C

Features & Benefits

  • Retains factory SWC: Full steering wheel control function retained on compatible aftermarket head units
  • Retains factory reverse camera: If originally fitted aftermarket head unit requires RCA reverse camera input
  • Retains factory AUX and USB inputs: If originally fitted AUX requires RCA input, USB requires rear USB on head unit
  • Includes antenna adaptor: Converts factory Hyundai/Kia antenna plug to universal DIN for aftermarket radios
  • CANBUS interface: Direct CANBUS communication for accurate SWC signal reading
  • No factory wiring cuts: Vehicle-specific plug connects directly clean, reversible installation
  • Reverse trigger and park brake outputs: Pre-wired outputs for aftermarket head unit connection
  • Pairs with APP8: Optional Aerpro APP8 Head Unit Secondary ISO Harness simplifies head unit connection (sold separately)

Technical Specs

Specification Detail
SKU ASHY16C
Brand Aerpro
Interface Type CANBUS
Patch Lead Type H
Reverse Trigger Yes purple wire
Park Brake Yes green wire
Speed Pulse No
Illumination Yes
Amp Remote No
Telephone Mute No
Suits Hyundai and Kia vehicles

Frequently Asked Questions

Does this interface require cutting of the factory wiring?

No the vehicle-specific Hyundai/Kia plug connects directly into the existing vehicle wiring with no cutting required.

Does this retain the factory reverse camera?

Yes if originally fitted. The aftermarket head unit must have an RCA reverse camera input.

Does this retain the factory AUX and USB?

Yes if originally fitted. AUX retention requires an RCA AUX input on the head unit; USB retention requires a rear USB input.

Is speed pulse output included?

No the ASHY16C provides reverse trigger and park brake outputs only. Speed pulse is not included.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle compatibility before purchasing.
