Product features

Honda Steering Wheel Control Interface Retains Factory Reverse & Side Cameras (3 Angles), AUX, USB & Antenna, CANBUS, Speed Pulse Output, No Factory Wiring Cut Required.

Product Overview

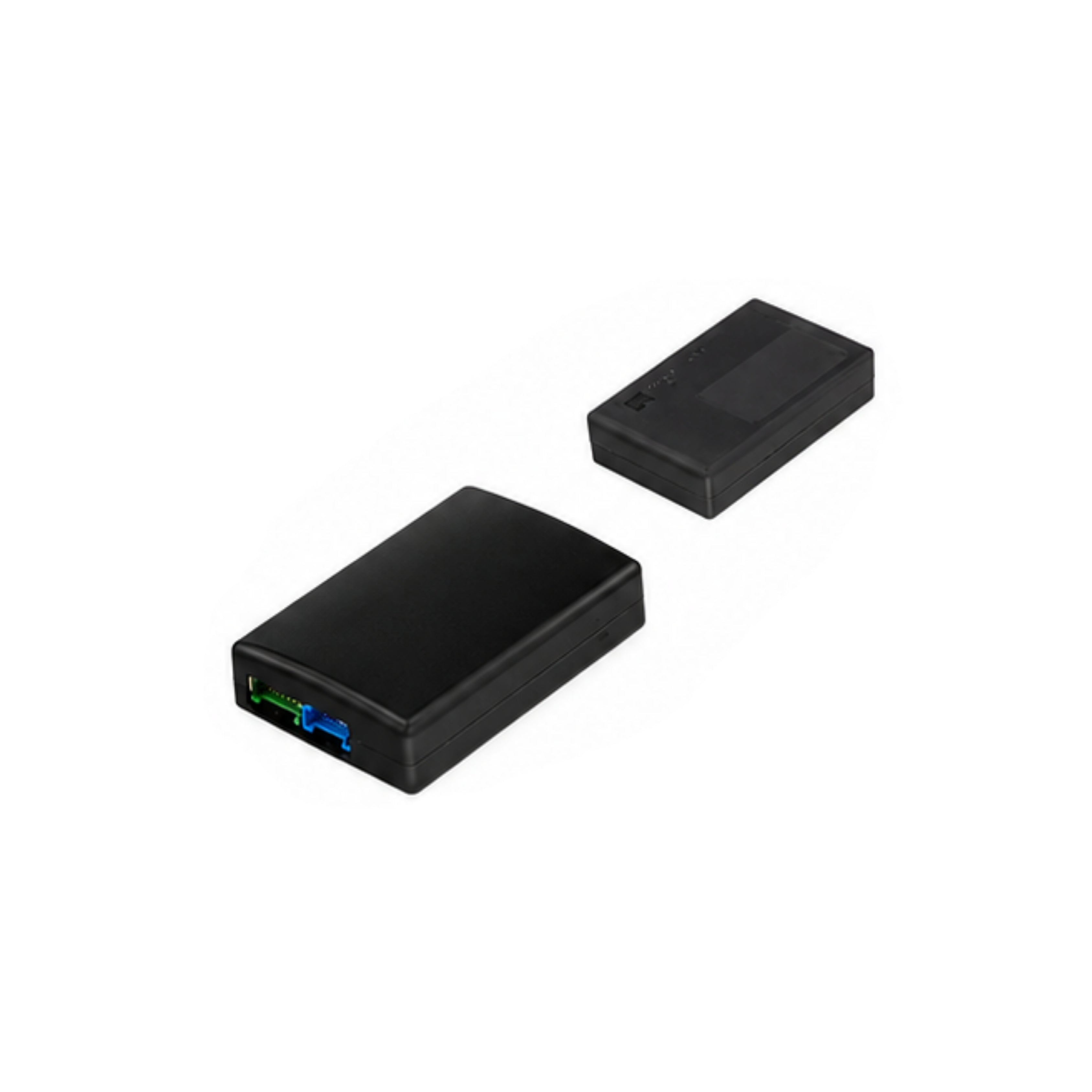

The Aerpro ASHO23C is a CANBUS steering wheel control interface designed for Honda vehicles the side camera variant, distinct from the ASHO17C (without side cameras) and ASHO22C (without side cameras) listed earlier. The ASHO23C adds side camera retention to the feature set, retaining both the factory reverse camera (with 3 adjustable angles) and side camera(s), alongside factory AUX, USB, and antenna all with no cutting of the factory wiring harness required.

Reverse trigger, park brake, and speed pulse outputs are provided. Vehicle time and date settings via steering controls are also retained. Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified installation.

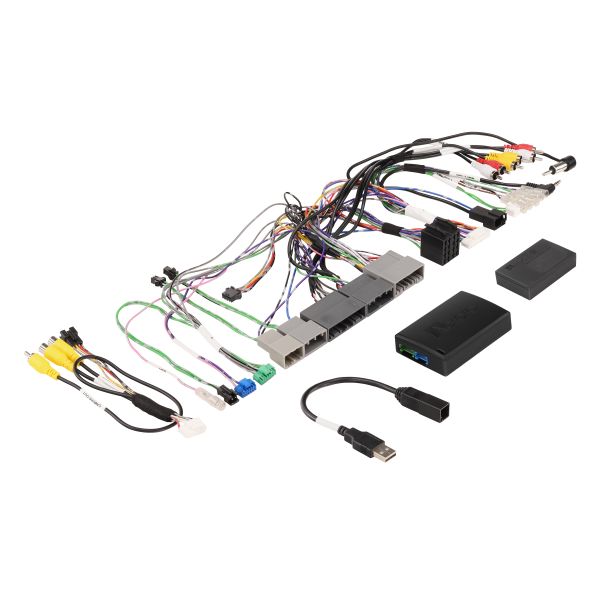

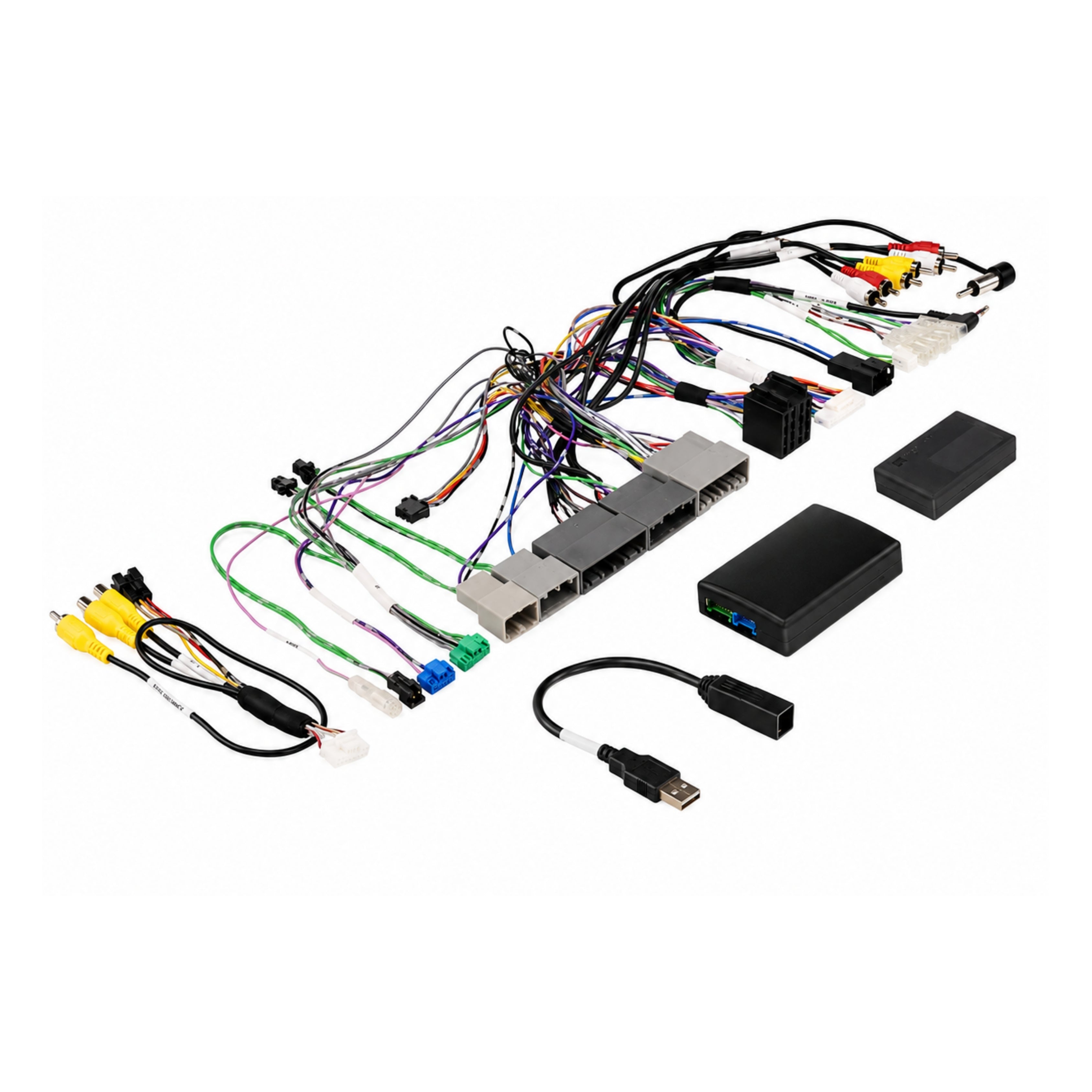

Kit Inclusions

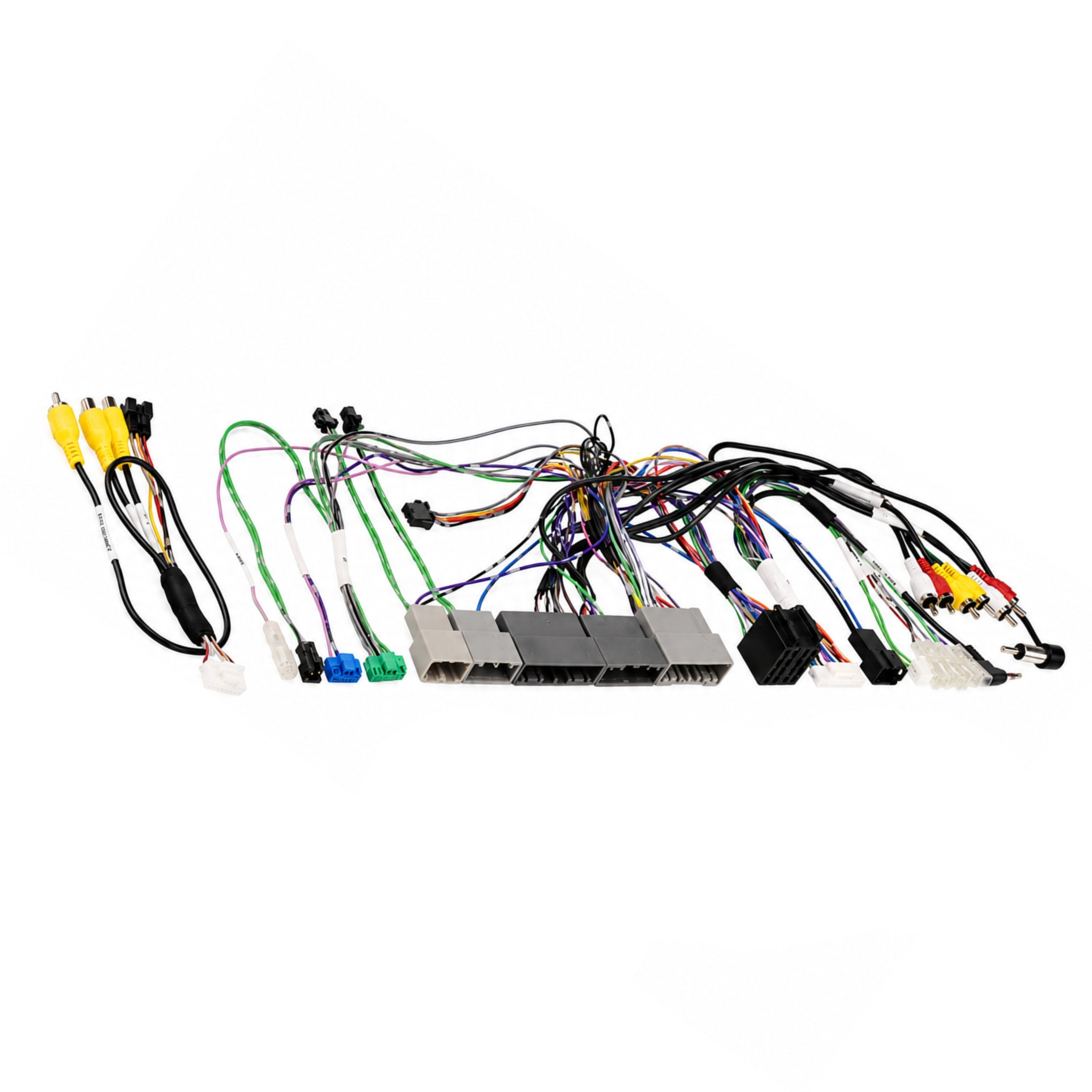

  • SWC Interface Harness (vehicle-specific Honda plug)
  • Antenna Adaptor
  • Reverse Camera Retention Adaptor
  • Side Camera Retention Adaptor(s)
  • AUX Retention Lead

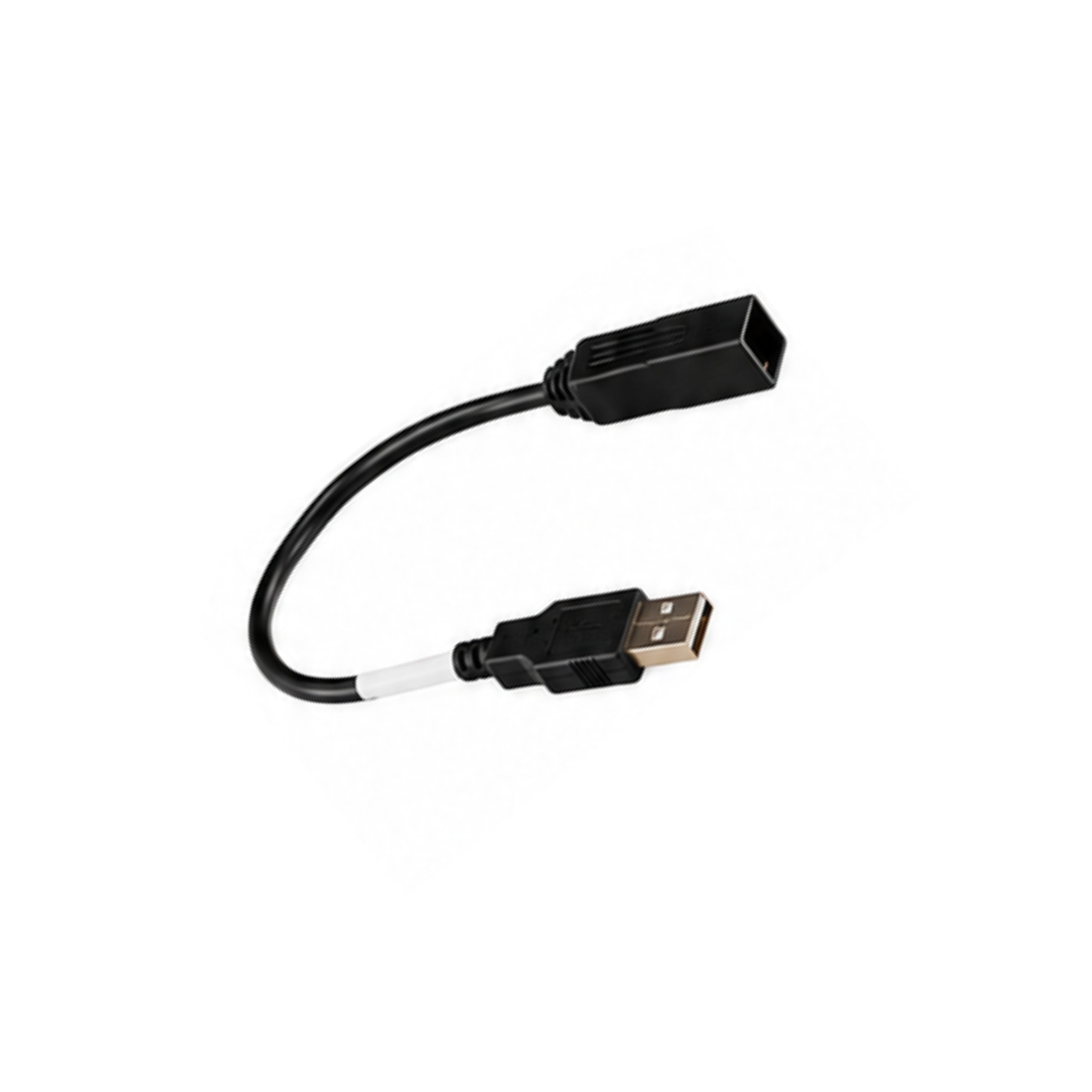

  • USB Retention Lead

Retention & Output Summary

Feature Detail
Steering Wheel Controls Yes
Factory Reverse Camera Yes 3 adjustable angles (if equipped)
Side Camera(s) Yes (if equipped)
AUX Input Yes (if equipped RCA AUX required on HU)
USB Input Yes (if equipped rear USB required on HU)
Antenna Yes
Vehicle Menu Yes time & date via SWC
OEM Amplifier No
Reverse Trigger Output Yes (purple wire)
Park Brake Output Yes (green wire)
Speed Pulse Output Yes (pink wire)
Illumination Yes
Amp Remote No
Telephone Mute No

Key Specifications

  • Interface type: CANBUS
  • Patch lead type: H
  • Suits: Honda vehicles (with side camera models)
  • Not compatible with factory amplified models
  • No factory wiring cutting required
  • Brand: Aerpro
  • SKU: ASHO23C

Honda SWC Interface Comparison (this session)

Feature ASHO17C ASHO22C ASHO23C
SWC Retained Yes Yes Yes
Factory Reverse Camera Yes (3 angles) Yes (3 angles) Yes (3 angles)
Side Camera(s) No No Yes
AUX Retained No Yes Yes
USB Retained Yes Yes Yes
Antenna Yes Yes Yes
Vehicle Menu No No Yes (time & date)
Reverse Trigger Yes Yes Yes
Park Brake Yes Yes Yes
Speed Pulse No Yes Yes
Factory Amp N/A N/A Not compatible
Suits No side cameras No side cameras With side cameras

Features & Benefits

  • Retains factory reverse and side cameras: Both reverse (3 adjustable angles) and side camera(s) retained the key distinction from the ASHO17C and ASHO22C
  • Vehicle time and date via SWC: Time and date settings accessible via steering wheel controls
  • Retains factory AUX and USB: If originally fitted AUX requires RCA input, USB requires rear USB on head unit
  • Includes antenna adaptor: Converts factory antenna to universal DIN for aftermarket radios
  • CANBUS interface: Direct CANBUS communication for accurate SWC reading
  • No factory wiring cuts: Vehicle-specific plug clean, reversible installation
  • Reverse trigger, park brake and speed pulse outputs: Full output set for compatible head units
  • Not for factory amplified models: Confirm your Honda does not have a factory amplified system before purchasing
  • Pairs with APP8: Optional Aerpro APP8 ISO Harness simplifies head unit connection (sold separately)

Technical Specs

Specification Detail
SKU ASHO23C
Brand Aerpro
Interface Type CANBUS
Patch Lead Type H
Reverse Trigger Yes purple wire
Park Brake Yes green wire
Speed Pulse Yes pink wire
Illumination Yes
Amp Remote No
Telephone Mute No
Suits Honda vehicles with side cameras (non-amplified)

Frequently Asked Questions

How does the ASHO23C differ from the ASHO17C and ASHO22C?

The ASHO23C adds side camera retention and vehicle time/date adjustment via SWC compared to the ASHO17C and ASHO22C. The ASHO23C suits Honda models with side cameras while the ASHO17C and ASHO22C suit Honda models without side cameras. Use the Aerpro Vehicle Selector to confirm which interface suits your vehicle.

Does this suit factory amplified Honda models?

No the ASHO23C is not compatible with factory amplified Honda vehicles.

Does this retain both the reverse and side cameras?

Yes both factory reverse camera (with 3 adjustable angles) and side camera(s) are retained if originally fitted. The aftermarket head unit requires an RCA reverse camera input.

Does this require cutting of the factory wiring?

No the vehicle-specific Honda plug connects directly with no cutting required.
