Aerpro ASHO22C Honda Steering Wheel Control Interface Camera AUX USB Antenna Retention

Honda Steering Wheel Control Interface (Without Side Cameras) Retains Factory Reverse Camera (3 Angles), AUX, USB & Antenna, CANBUS, Speed Pulse Output, No Factory Wiring Cut Required.

Product Overview

The Aerpro ASHO22C is a CANBUS steering wheel control interface designed for Honda vehicles without side cameras. It allows an aftermarket head unit to be installed while retaining factory steering wheel controls with no cutting of the factory wiring harness required. The vehicle-specific plug connects directly into the existing vehicle wiring.

Beyond SWC retention, the ASHO22C retains the factory reverse camera (with 3 adjustable camera angles, if equipped), factory AUX input, factory USB input, and factory antenna. An antenna adaptor is included to convert the vehicle antenna to a universal DIN plug. Reverse trigger, park brake, and speed pulse outputs are all provided an expanded output set compared to the ASHO17C.

The ASHO22C also supports time adjustments for the factory clock via steering wheel controls. Pair with the optional Aerpro APP8 Head Unit Secondary ISO Harness for simplified installation between this interface and the head unit.

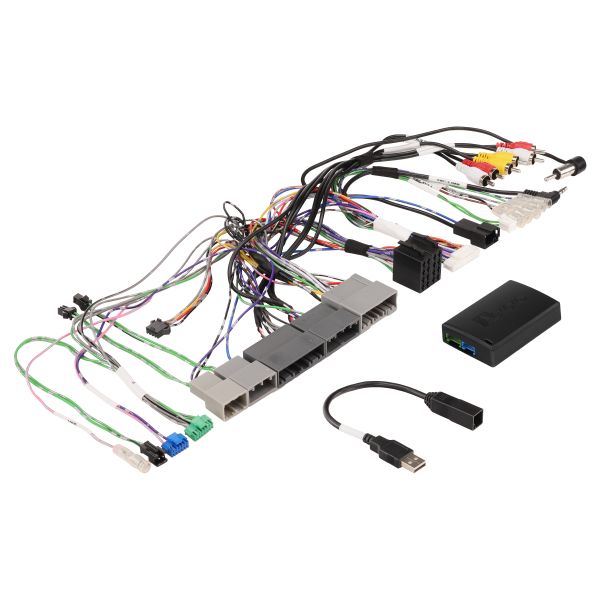

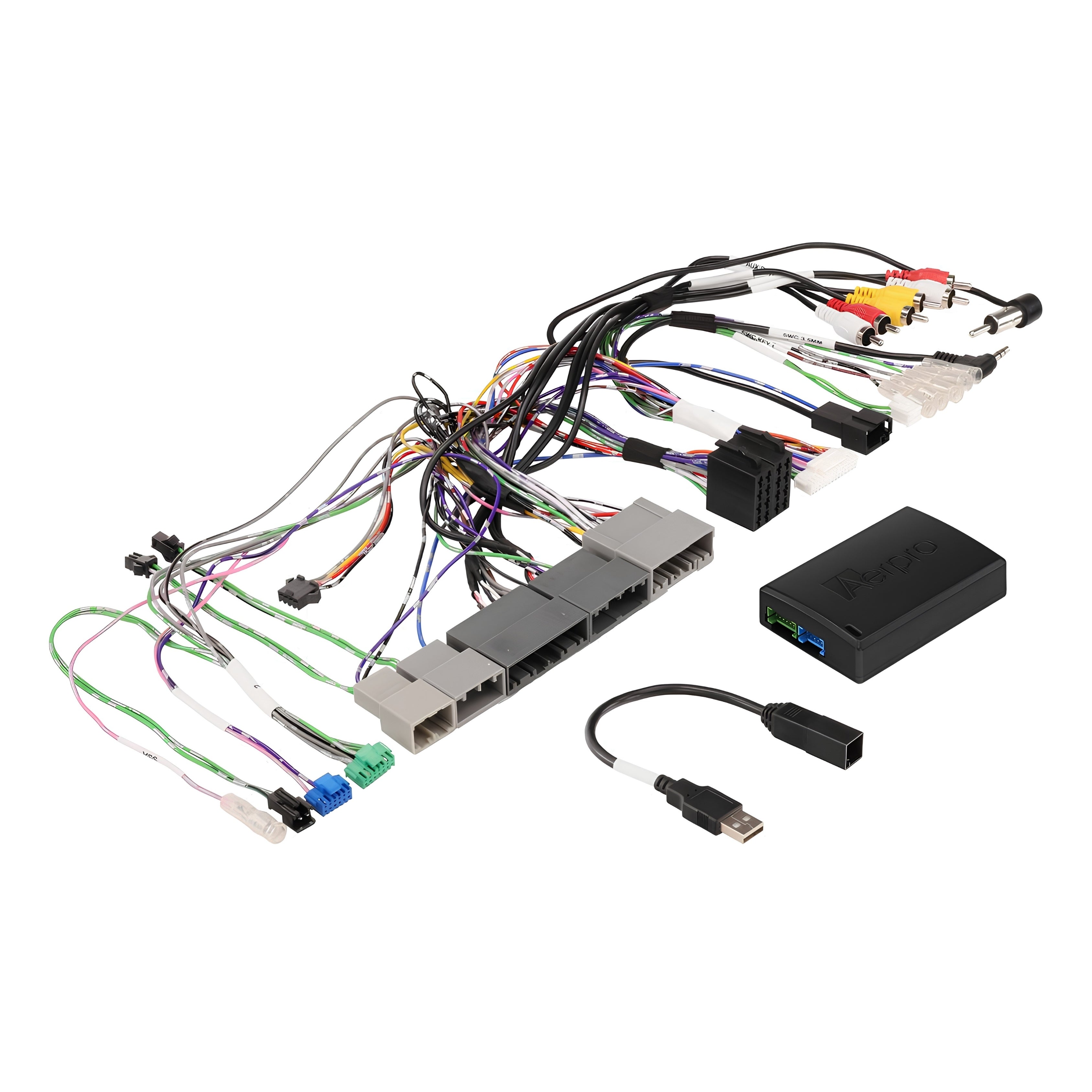

Kit Inclusions

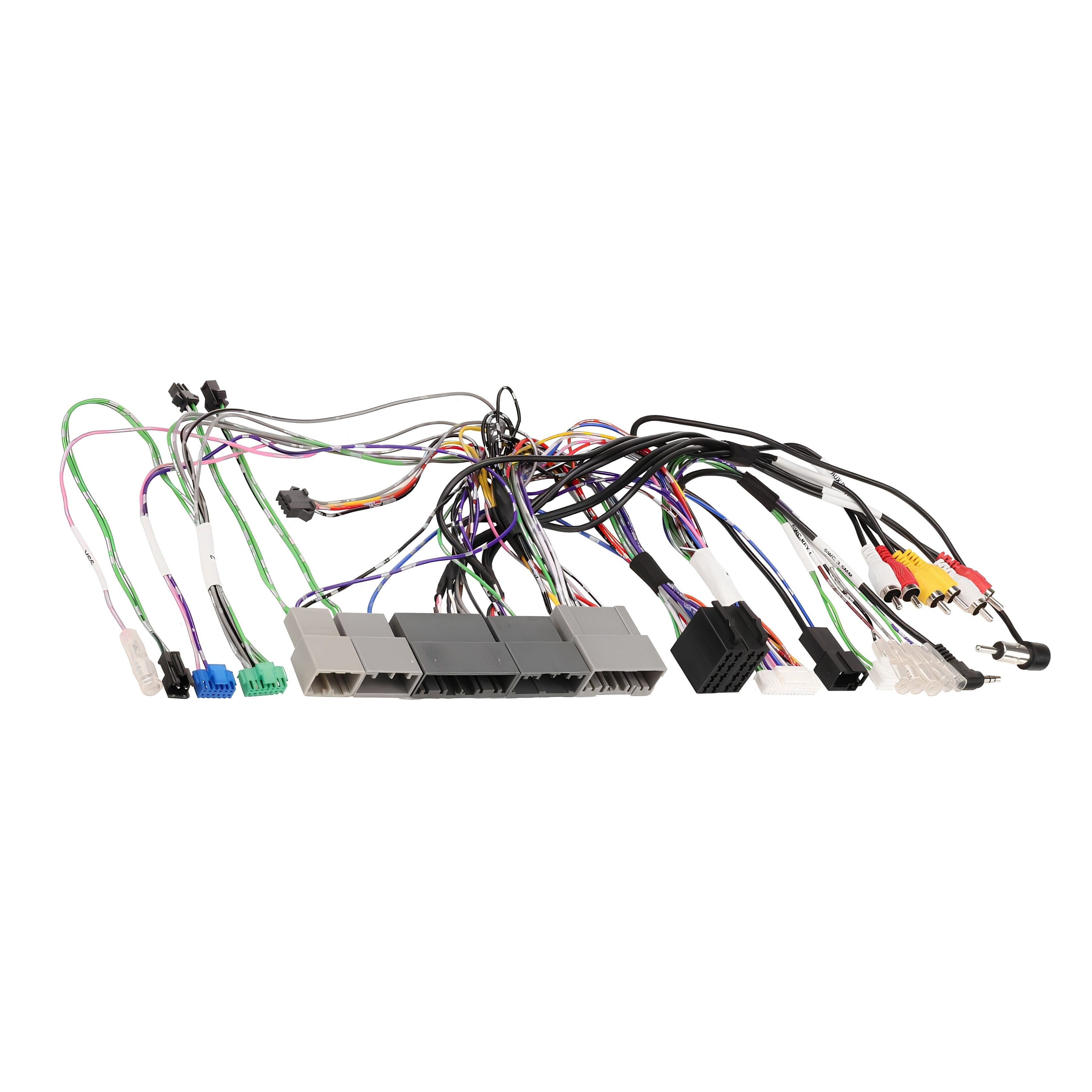

• SWC Interface Harness (vehicle-specific Honda plug)
• Antenna Adaptor
• Reverse Camera Retention Adaptor
• AUX Retention Lead

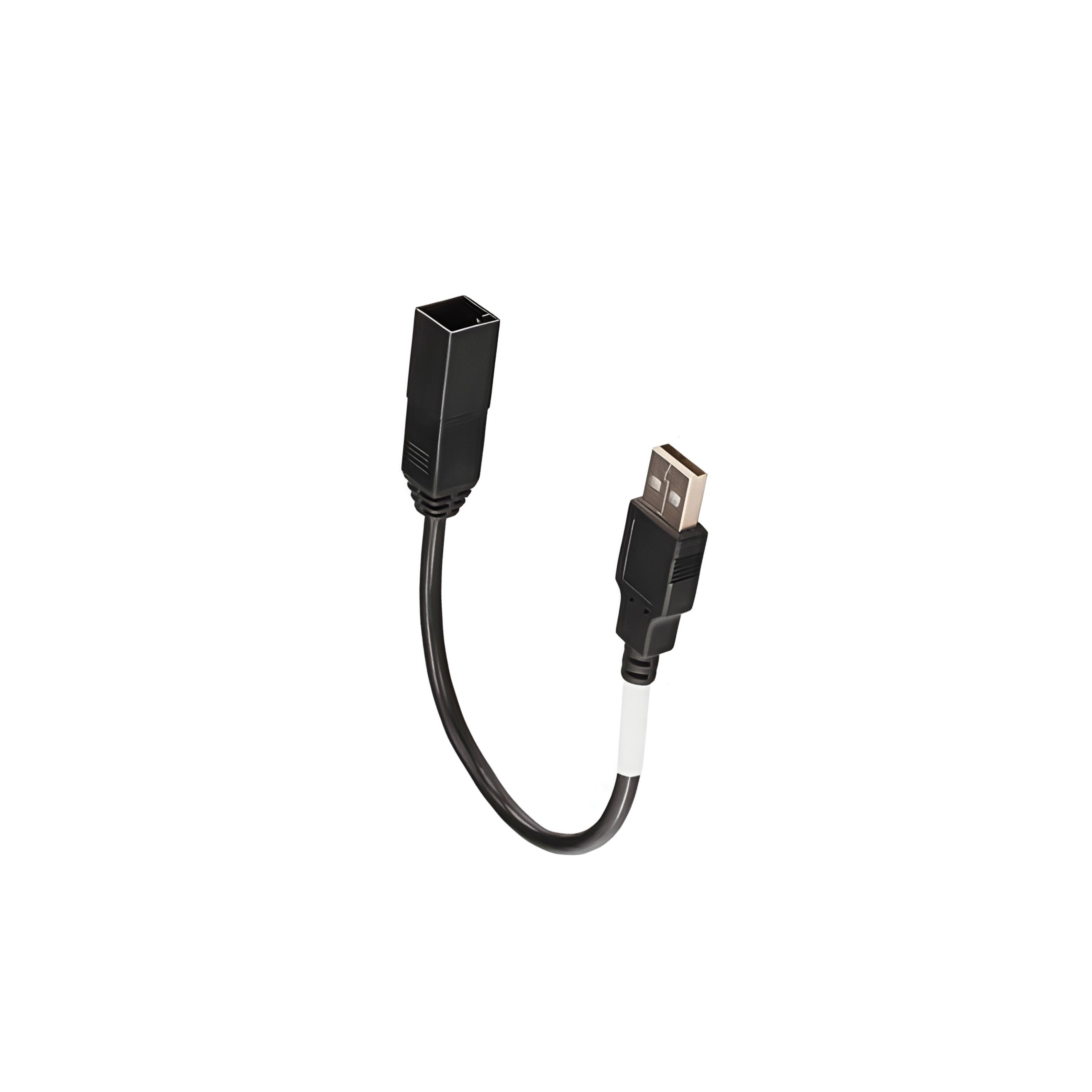

• USB Retention Lead

Retention & Output Summary

Key Specifications

• Interface type: CANBUS
• Patch lead type: H
• Suits: Honda vehicles without side cameras
• No factory wiring cutting required
• Brand: Aerpro
• SKU: ASHO22C

Features & Benefits

• Retains factory SWC: Full steering wheel control function retained on compatible aftermarket head units
• Retains factory reverse camera with 3 adjustable angles: If originally fitted aftermarket head unit requires RCA reverse camera input
• Retains factory AUX and USB inputs: If originally fitted AUX requires RCA input, USB requires rear USB input on the head unit
• Supports factory clock time adjustment: Factory clock time adjustments via steering wheel controls are supported
• Includes antenna adaptor: Converts factory antenna plug to universal DIN for aftermarket radios
• CANBUS interface: Direct CANBUS communication for accurate SWC signal reading
• No factory wiring cuts: Vehicle-specific plug connects directly clean, reversible installation
• Reverse trigger, park brake and speed pulse outputs: More complete output set than the ASHO17C includes speed pulse (pink) for compatible head units
• Pairs with APP8: Optional Aerpro APP8 Head Unit Secondary ISO Harness simplifies head unit connection (sold separately)

Technical Specs

ASHO17C vs ASHO22C Comparison

Compatible Vehicles

Suits Honda vehicles without side cameras. Use the Aerpro Vehicle Selector to confirm fitment for your specific Honda model and year.

FAQ

What is the Aerpro ASHO22C?

The Aerpro ASHO22C is a CANBUS steering wheel control interface designed for Honda vehicles without side cameras.

How does the ASHO22C differ from the ASHO17C?

The ASHO22C adds AUX input retention, speed pulse output, and factory clock time adjustment via SWC compared to the ASHO17C. Both suit Honda vehicles without side cameras. Check the Aerpro Vehicle Selector to confirm which interface suits your specific vehicle.

Does this retain the factory AUX input?

Yes if originally fitted. AUX retention requires an RCA AUX input on the aftermarket head unit.

Does this retain the factory reverse camera?

Yes if originally fitted, with 3 adjustable camera angles. The aftermarket head unit must have an RCA reverse camera input.

Does this require cutting of the factory wiring?

No, the vehicle-specific Honda plug connects directly into the existing wiring with no cutting required.

Will it fit my car?

Built for the vehicles named in the title and description. Send the F.A.E. team your make, model and year and we will confirm before you order.
