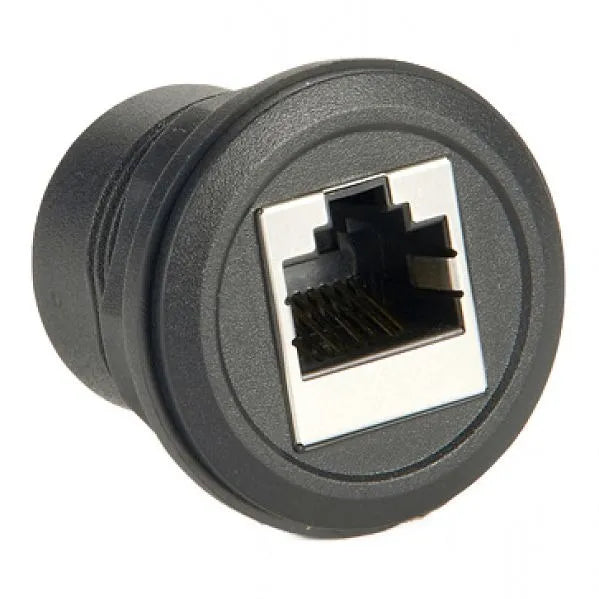

Aerpro ARJ45UNI RJ45 Universal Pass-Through Adaptor

Easy Installation With No Modifications Required!

RJ45 Universal Pass-Through Adaptor
The Aerpro ARJ45UNI RJ45 Pass-Through Adaptor is a universal accessory to supplement your Hideaway UHF CB Radio installation. It has been designed to replace the vehicle accessory socket in most vehicles and can also be flush mounted into a flat panel in the console or dash (Dash/Console Modification Required). The Aerpro ARJ45UNI gives you an RJ45 pass-through socket, providing an integration solution for your vehicle when installing a hideaway UHF radio with a remote microphone.

Please Note: Flush mounting may require dash modification.

Features:

• Universal Application to suit various vehicles
• Replace the factory 12v Accessory Socket in the vehicle
• Flush mount installation option on vehicles with a flat surface to create a discreet look
• RJ45 Pass-through connector, suitable for UHF radios that have an RJ45 microphone connection (Most Major Brands)
• The cable supplied with the UHF radio plugs into the rear of the connector
• The cable from the UHF radio microphone plugs into the front of the connector
• A simple screw-in design makes it easy to install with no modifications required

Specifications:

• Application: Universal (Various Vehicles)
• Panel Dimensions:
  Body: 24.75mm (Diameter)
  Face: 30mm (Diameter)
  Depth: 27.8mm (Diameter)
• Connection Type: RJ45 Pass-Through
• Mounting Type: Screw-In
• Weight: 0.03kg

FAQ

What is the Aerpro ARJ45UNI?

A universal RJ45 pass through socket for a hideaway UHF radio. It replaces the accessory socket in most vehicles.

Can it be flush mounted?

Yes, into a flat panel in the console or dash, but that needs dash modification.

Is the cable included?

No. It uses the cable supplied with your hideaway UHF radio.
