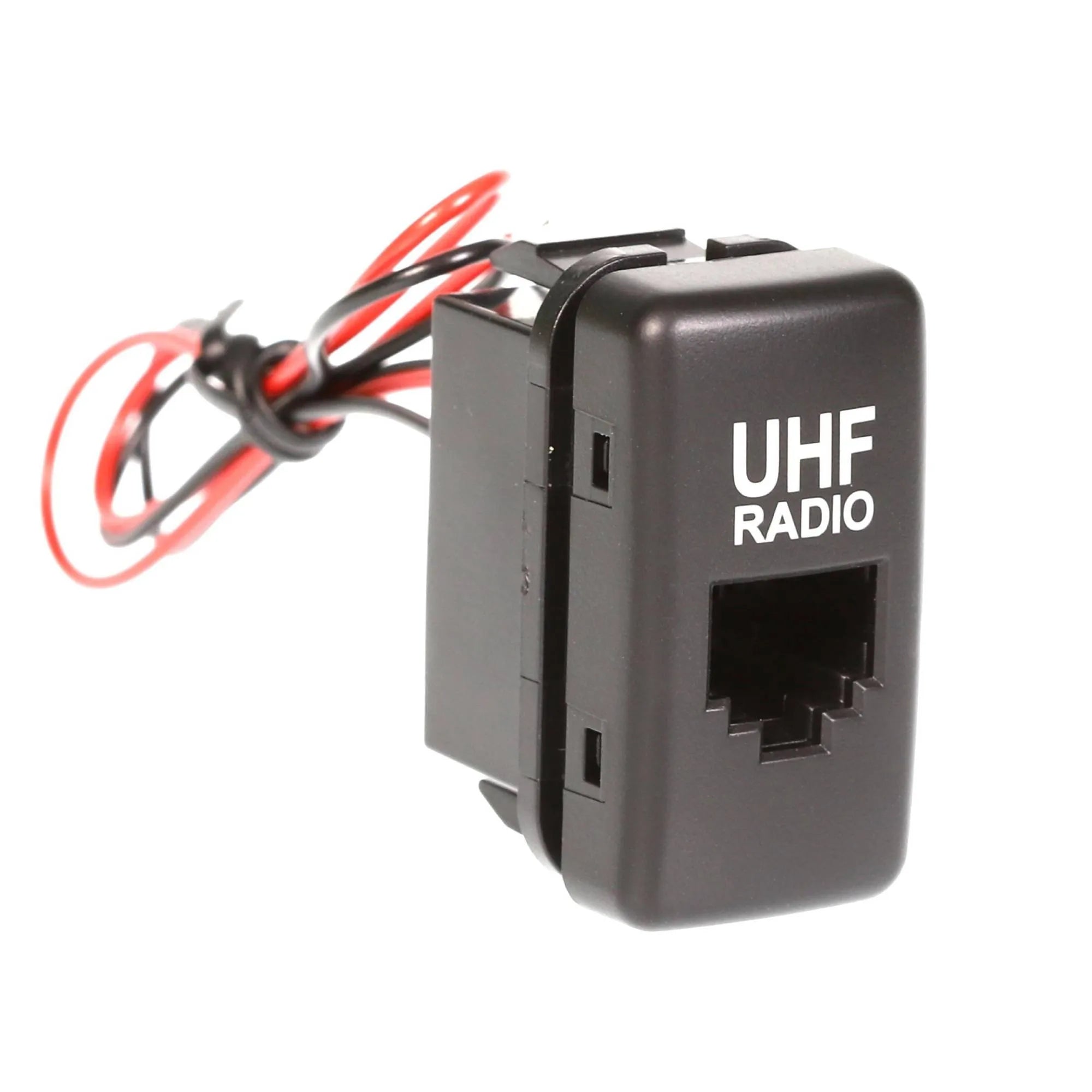

Aerpro ARJ45TO6 RJ45 Pass-Through Adaptor Suit Toyota Various Models (21.5mm x 40mm)

Clip-In Design Combined With the Simple 2-Wire Connection For Illumination, Makes It Quick & Easy to Install!

RJ45 Pass-Through Adaptor
Aerpro ARJ45TO6 RJ45 Pass-Through Adaptor has been designed specifically to suit various Toyota vehicles. It replaces the spare factory switch blanking plates in the vehicle dashboard that measure 21.5mm wide x 40mm high, providing a professional and seamless integration solution for your vehicle when installing a hideaway UHF radio with a remote microphone. The connection type is RJ45 pass-through, the cable supplied with the hideaway UHF radio plugs into the rear of the adaptor, while the plug on the end of the remote microphone will plug into the face of the adaptor. The UHF Radio text illuminates blue making it easy to find day and night and the clip-in design combined with the simple 2-wire connection for illumination, makes it quick and easy to install.

Features:

• Suitable for Toyota vehicles with 21.5mm wide x 40mm high switch blanking plates
• Replaces factory switch blanking plates in the dashboard
• Vehicle-specific OEM style design for discreet seamless integration
• RJ45 Pass-through connector, suitable for UHF radios that have an RJ45 microphone connection (Most Major Brands)
• The cable supplied with the UHF radio plugs into the rear of the connector
• The cable from the UHF radio microphone plugs into the front of the connector
• UHF radio text illuminates blue making it easy to find day and night
• Simple clip-in design makes it easy to install with no modifications required
• Easy two-wire installation: connect the red wire to the vehicle's 12v dash light circuit and the black wire to the negative circuit

Specifications:

• Vehicle Application: Various Toyota Vehicles
• Panel Dimensions:
  Body: 21.5mm (W) x 40mm (H)
  Face: 21.5mm (W) x 40mm (H)
• Connection Type: RJ45 Pass-Through
• Mounting Type: Clip-In
• Wiring Installation:
  12V+ Dash Light Circuit: Red
  Earth: Black
• Notes: N/A
• Weight: 0.01kg

Vehicle Compatibility:

• Toyota FJ Cruiser (2011 - 2015)
• Toyota HiAce (2004 - 2011)
• Toyota Hilux (2005 - 2011)
• Toyota Hilux (2012 - 2013)
• Toyota Hilux (2014)
• Toyota Landcruiser 100 Series (1999 - 2006)
• Toyota Landcruiser 70 Series (1984 - 2022)
• Toyota Prado 120 Series (2003 - 2009)
