Product features

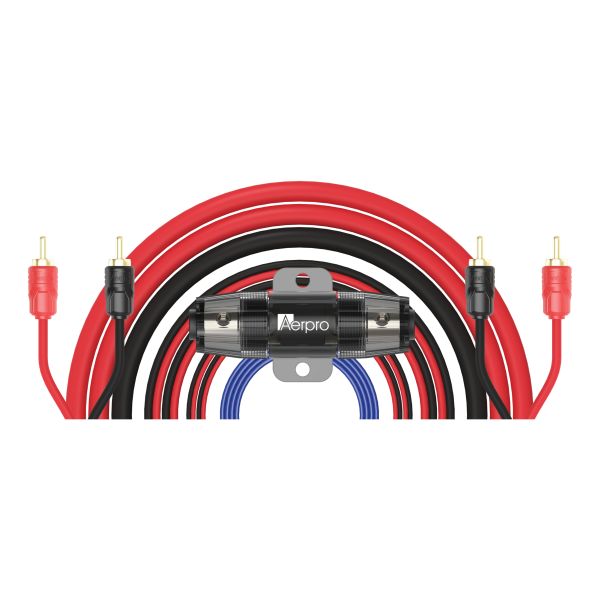

Aerpro APW44 4-Channel 4GA Amplifier Install Kit 900W Maximum Power with CCA Power Cable 4-Channel RCA 100A Mini ANL Fuse and Speaker Wire

The APW44 from Aerpro is a complete 4-channel 4GA amplifier installation kit rated at 900W maximum power, providing all cables, fusing, and accessories required to install a high-powered 4-channel car audio amplifier. The kit includes 4GA Copper-Clad Aluminium (CCA) power and ground cables, 5m 4-channel RCA cables with twisted shield technology and gold-plated connectors, a barrel inline fuse holder with 100A Mini ANL fuse, 16m of 18GA speaker wire, 5m of 18GA remote wire, assorted ring terminals, 4GA plastic grommets, and cable ties.

Product overview

The APW44 provides a complete installation solution for demanding 4-channel car audio amplifier installations rated up to 900W maximum power. The 4GA CCA power and ground cables deliver the heavy-duty current flow required for high-powered amplifier systems, with the CCA construction offering an effective balance of conductivity and routing flexibility. The 5m power cable in red and 0.9m ground cable in black come with pre-attached O-ring terminals at one end for immediate battery and chassis connection.

The 5m 4-channel RCA cables feature twisted shield technology and gold-plated connectors to eliminate interference and maintain crystal-clear signal integrity between the head unit and amplifier. A barrel inline fuse holder with a 100A Mini ANL fuse is included for circuit protection at the power cable. 16m of 18GA speaker cable covers all four channels of a typical 4-channel amplifier installation.

Features and benefits

900W maximum power rating: The APW44 is rated at 900W maximum power, providing the heavy-duty current flow required for demanding 4-channel car audio amplifier systems.

4GA CCA power and ground cables: The 4GA Copper-Clad Aluminium (CCA) power and ground cables deliver an effective balance of conductivity and routing flexibility, with pre-attached O-ring terminals at one end for immediate connection.

4-channel RCA cables with twisted shield and gold-plated connectors: The 5m 4-channel RCA cables feature twisted shield technology and gold-plated connectors to eliminate interference and maintain noise-free signal integrity between the head unit and amplifier.

100A Mini ANL fuse and barrel inline fuse holder: The barrel inline fuse holder and 100A Mini ANL fuse provide electrical protection for the vehicle and audio equipment at the power cable connection point.

Complete all-inclusive kit: Everything required for a complete 4-channel amplifier installation is included in a single purchase, eliminating the need to source individual cables and accessories separately.

What's in the box

  • 1x 5.4m 4GA Red CCA Power Cable with pre-attached O-ring terminal
  • 1x 0.9m 4GA Black CCA Ground Cable with pre-attached O-ring terminal
  • 1x Barrel Inline Fuse Holder with 100A Mini ANL Fuse
  • 1x 5m 4-Channel RCA Cable (twisted shield, gold-plated connectors)
  • 1x 16m 18GA Speaker Wire
  • 1x 5m 18GA Remote Wire
  • Assorted Ring Terminals
  • 4GA Plastic Grommets
  • Cable Ties

Technical specs

Specification Detail
SKU APW44
Brand Aerpro
Maximum Power Rating 900W
Power Cable Gauge 4GA
Power Cable Type Copper-Clad Aluminium (CCA)
Power Cable Length 5.4m, red, pre-attached O-ring terminal
Ground Cable Length 0.9m, black, pre-attached O-ring terminal
Power Cable Insulation Red PVC, Black PVC
Remote Cable 5m, 18GA
RCA Cables 5m, 4-channel, twisted shield, gold-plated connectors
Speaker Wire 16m, 18GA
Fuse Holder Barrel inline
Fuse 100A Mini ANL

Frequently asked questions

What is Copper-Clad Aluminium (CCA) cable?
Copper-Clad Aluminium cable uses an aluminium conductor with a copper coating, providing an effective balance of conductivity and flexibility at a lower weight than pure copper cable. CCA is widely used in car audio installation kits as a cost-effective alternative to pure OFC copper cable. For the highest performance installations, pure OFC copper cable is preferred.

What amplifier power rating does the APW44 suit?
The APW44 is rated at 900W maximum power, making it suited to 4-channel car audio amplifiers up to this power level. Confirm your amplifier's power requirements and recommended cable gauge before ordering to ensure the APW44 is the correct kit for your installation.

Is speaker wire for all four channels included?
Yes. The APW44 includes 16m of 18GA speaker wire, providing sufficient cable for all four channels of a typical 4-channel amplifier installation in most passenger vehicles.

What fuse is included in the APW44?
The APW44 includes a barrel inline fuse holder with a 100A Mini ANL fuse for circuit protection at the power cable connection point near the battery.

Is this kit suitable for a 2-channel amplifier installation as well?
Yes. The APW44 can be used for 2-channel amplifier installations within the 900W power rating. The 4-channel RCA cables provide two stereo channel pairs, one of which can be used for a 2-channel installation. Contact us if you need guidance on selecting the correct kit for your specific amplifier configuration.
