Aerpro APW28 2 Channel 8GA Amplifier Install Kit 300W CCA
Click to open expanded view
AERPRO logo

Out of stock

Aerpro APW28 2 Channel 8GA Amplifier Install Kit 300W CCA

SKU: APW28
Regular price
$39.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro APW28 2-Channel 8GA Amplifier Install Kit 300W Maximum Power with CCA Power Cable 2-Channel RCA 60A Mini ANL Fuse and Speaker Wire

The APW28 from Aerpro is a complete 2-channel 8GA amplifier installation kit rated at 300W maximum power, providing all cables, fusing, and accessories required to install a 2-channel car audio amplifier. The kit includes 8GA Copper-Clad Aluminium (CCA) power and ground cables, 5m 2-channel twisted shield RCA cables with gold-plated connectors, a barrel inline fuse holder with 60A Mini ANL fuse, 2.4m of 18GA speaker wire, 5m of 18GA remote wire, assorted ring terminals, 8GA plastic grommets, and cable ties.

Product overview

The APW28 provides a complete installation solution for 2-channel car audio amplifier installations rated up to 300W maximum power. The 8GA CCA power and ground cables deliver the current flow required for standard 2-channel amplifier systems, with pre-attached O-ring terminals at one end of each cable for immediate battery and chassis connection. The 5.4m red power cable and 0.9m black ground cable are finished in PVC insulation.

The 5m 2-channel twisted shield RCA cables with gold-plated connectors provide clear, interference-free signal transfer between the head unit and amplifier. A barrel inline fuse holder with a 60A Mini ANL fuse is included for circuit protection at the power cable. The APW28 is the 8GA counterpart to the APW24 4GA kit, suited to lower-powered 2-channel amplifier installations where 8GA cable provides sufficient current capacity for the system power level.

Features and benefits

300W maximum power rating: The APW28 is rated at 300W maximum power, suited to standard 2-channel car audio amplifier installations within this power level.

8GA CCA power and ground cables: The 8GA Copper-Clad Aluminium (CCA) power and ground cables provide an effective balance of conductivity and routing flexibility, with pre-attached O-ring terminals at one end for immediate connection.

2-channel RCA cables with twisted shield and gold-plated connectors: The 5m 2-channel twisted shield RCA cables with gold-plated connectors provide clear, interference-free signal transfer between the head unit and amplifier.

60A Mini ANL fuse and barrel inline fuse holder: The barrel inline fuse holder and 60A Mini ANL fuse provide electrical protection for the vehicle and audio equipment at the power cable connection point.

Complete all-inclusive kit: Everything required for a complete 2-channel 8GA amplifier installation is included in a single purchase, eliminating the need to source individual cables and accessories separately.

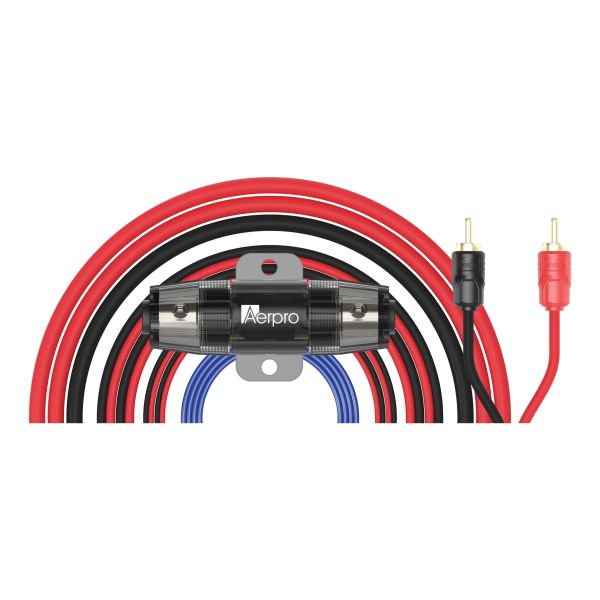

What's in the box

  • 1x 5.4m 8GA Red CCA Power Cable with pre-attached O-ring terminal
  • 1x 0.9m 8GA Black CCA Ground Cable with pre-attached O-ring terminal
  • 1x Barrel Inline Fuse Holder with 60A Mini ANL Fuse
  • 1x 5m 2-Channel Twisted Shield RCA Cable (gold-plated connectors)
  • 1x 2.4m 18GA Speaker Wire
  • 1x 5m 18GA Remote Wire
  • Assorted Ring Terminals
  • 8GA Plastic Grommets
  • Cable Ties

Technical specs

Specification Detail
SKU APW28
Brand Aerpro
Maximum Power Rating 300W
Power Cable Gauge 8GA
Power Cable Type Copper-Clad Aluminium (CCA)
Power Cable Length 5.4m, red, pre-attached O-ring terminal
Ground Cable Length 0.9m, black, pre-attached O-ring terminal
Power Cable Insulation Red PVC, Black PVC
Remote Cable 5m, 18GA
RCA Cables 5m, 2-channel, twisted shield, gold-plated connectors
Speaker Wire 2.4m, 18GA
Fuse Holder Barrel inline
Fuse 60A Mini ANL

Frequently asked questions

What is the difference between the APW28 and the APW24?
Both are Aerpro 2-channel amplifier install kits with identical RCA, remote wire, and speaker wire specifications. The APW24 uses 4GA CCA cable and is rated at 900W maximum power, suited to higher-powered 2-channel amplifier installations. The APW28 uses 8GA CCA cable and is rated at 300W maximum power, suited to standard 2-channel amplifier installations at lower power levels. Select the kit that matches your amplifier's power requirements and recommended cable gauge.

What is Copper-Clad Aluminium (CCA) cable?
Copper-Clad Aluminium cable uses an aluminium conductor with a copper coating, providing an effective balance of conductivity and flexibility at a lower weight than pure copper cable. CCA is widely used in car audio installation kits as a cost-effective alternative to pure OFC copper cable. For the highest performance installations, pure OFC copper cable is preferred.

What fuse is included in the APW28?
The APW28 includes a barrel inline fuse holder with a 60A Mini ANL fuse for circuit protection at the power cable connection point near the battery.

Is the APW28 suitable for a subwoofer amplifier installation?
Yes. The APW28 can be used for monoblock subwoofer amplifier installations within the 300W power rating. Contact us if you need guidance on selecting the correct kit for your specific amplifier and subwoofer configuration.

What amplifier power rating does the APW28 suit?
The APW28 is rated at 300W maximum power. Confirm your amplifier's power requirements and recommended cable gauge before ordering to ensure the APW28 is the correct kit for your installation.
