Aerpro APVTY15C Reverse Camera Kit for Toyota Hilux 2020 on

Quick answer

The Aerpro APVTY15C is a reverse camera kit for the Toyota Hilux from 2020 that uses the 26 pin factory camera plug and the factory display.

An IP67 camera mounts on the number plate, which suits tray and tub backs.

Problems it solves

• No camera on a Hilux tray back. The plate mount camera adds one.
• Adding a separate screen. The picture goes to the factory display.
• Tapping wires into the loom. A T harness plugs in line.

Specifications

• Vehicle: Toyota Hilux 2020 on with 26 pin OEM camera connection
• Camera mount: stealth number plate mount
• Lens: 90 degrees horizontal
• Sensor: CMOS
• Rating: IP67
• Cable: 6 m
• Settings: loop wires for PAL or NTSC, guidelines and mirror image

Fitment and compatibility

For Toyota Hilux models from 2020 with the 26 pin factory camera connection. The plug sits behind the passenger kick panel trim.

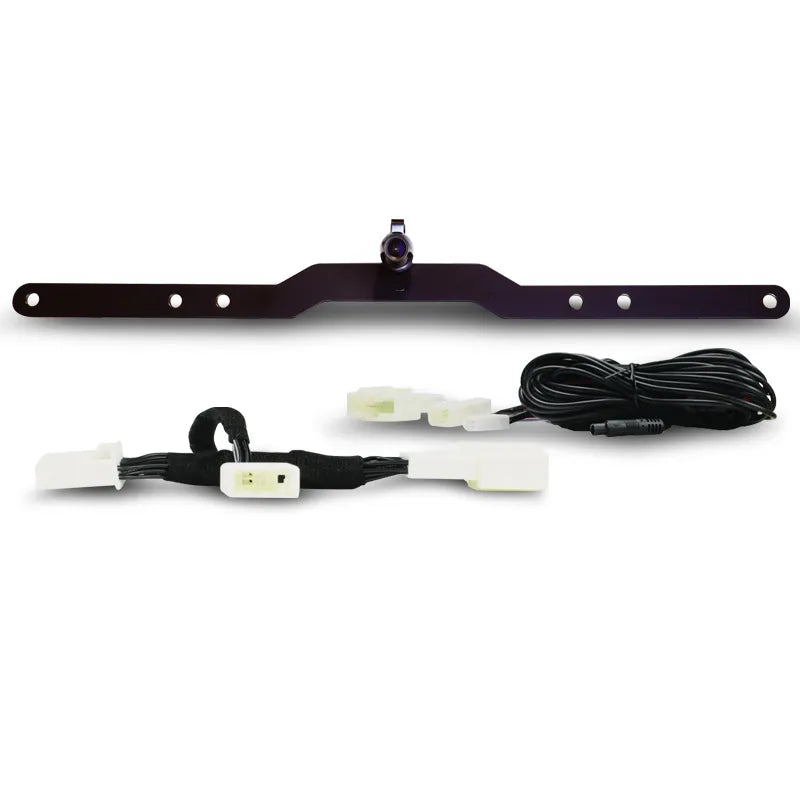

What is in the box

Number plate camera, Hilux T harness and a 6 m cable.

Install notes

Cut the blue loop to switch the camera to NTSC, as the factory display needs it. The green loop removes the guidelines and the white loop sets a forward image.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the APVTY15C

Will the APVTY15C fit my Hilux?

It suits Hilux models from 2020 with the 26 pin factory camera plug.

How do I connect the APVTY15C to the factory screen?

Plug the T harness in behind the passenger kick panel and cut the blue loop for NTSC. For Toyota Hilux models from 2020 with the 26 pin factory camera connection.

Does the APVTY15C suit a tray back Hilux?

Yes. The camera mounts on the number plate, which works for tray and tub backs. Number plate camera, Hilux T harness and a 6 m cable. The plug sits behind the passenger kick panel trim.
