Aerpro APVTY12C Vehicle Specific Reverse Camera Kit Suit Toyota Hilux 2014 - 2019

The Perfect Safety Addition For Your Vehicle!

Vehicle Specific Reverse Camera Kit
The Aerpro APVTY12C connects directly to the OEM factory display in Toyota Hilux (2014-2019) models with a 24 pin OEM camera connection. Simple to install, the kit comes supplied with a plug and play harness that connects directly to the OEM headunit.

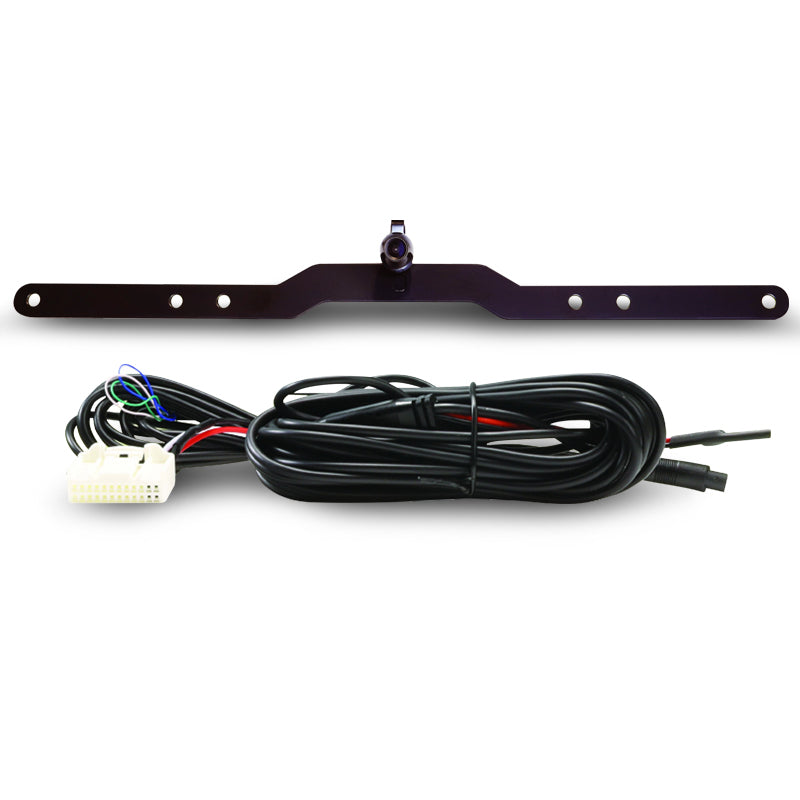

The included IP67 rated stealth registration plate mount reverse camera fits discreetly to the rear numberplate, making it suitable for tray or tub style UTE backs. Optional parking guidelines assist with reverse parking and the 90 degree lens angle significantly reduces blind spots.

Important Information: Aerpro APVTY16 Reverse Trigger Harness required (sold separately) when installing this camera kit into early model Toyota vehicles where the reverse wire is not pinned into the OEM connector (Pin 2).

Features:

• Suitable for Toyota Hilux (2014-2019) models with 24 pin OEM camera connection
• Stealth registration plate mount reverse camera for discreet installation
• Vehicle specific harness connects directly to the OEM headunit
• Simple plug and play design, perfect for DIY installation
• 90 Degree horizontal lens angle minimises blindspots
• CMOS Image sensor for clear picture quality
• Equipped with optional parking guidelines (Loop Setting on Installation)
• Standard / Mirror image switchable (Loop Setting on Installation)
• PAL/NTSC switchable (Loop Setting on Installation)
• IP67 Waterproof / dustproof camera

Specifications:

• Vehicle Connection: 24 Pin
• Camera Mount: Stealth Registration Plate Mount
• Lens Angle: 90 Degrees (Horizontal)
• Image Sensor: CMOS
• Cable Length: 6 Metres
• Camera IP Rating: IP67
• Camera Settings (Loop System):
  • Blue: Default setting PAL, cut the loop for NTSC
  • Green: Default setting Parking Guidelines, cut the loop to remove Parking Guidelines
  • White: Default setting Mirror Image, cut the loop for Forward Facing Image

Vehicle Compatibility:

• Toyota Hilux (2014)
• Toyota Hilux (2015 - 2020)
