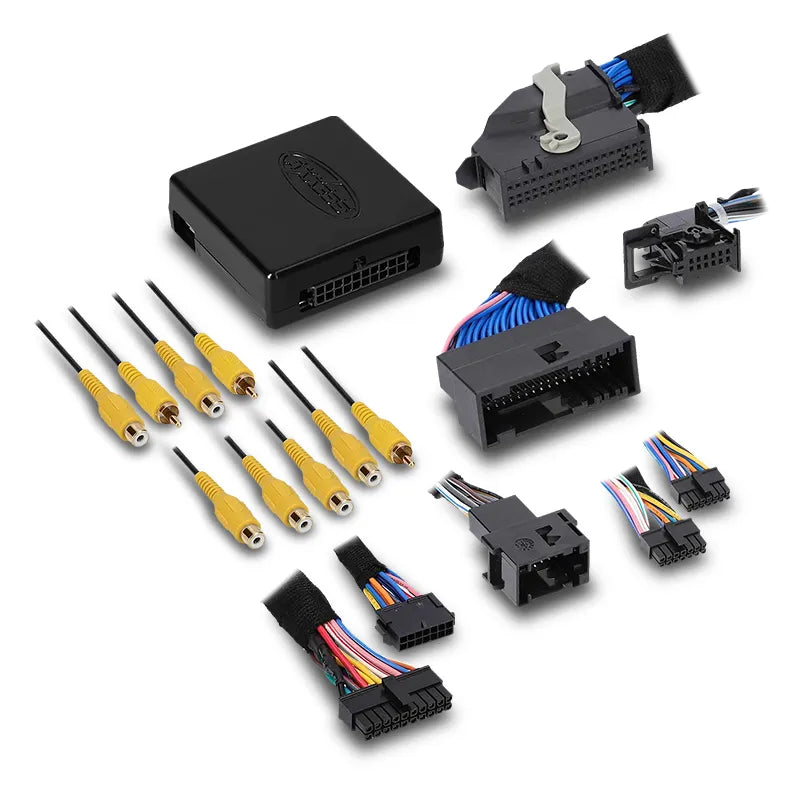

Aerpro APVFD03 Multiple Camera Add-On Interface Suit Ford Ranger PX3 2018

Provides Up to Three Additional Camera Inputs to The Factory Radio

Multiple Camera Add-On Interface
The Aerpro APVFD03 Camera Interface allows multiple cameras to be added to the OEM display of Ford Ranger PX3 (2018-on) models with 4.2-inch, 6.5-inch or 8-inch display screen. The interface provides up to three additional camera inputs to the factory radio, while still retaining the factory reverse camera.

With this interface a front camera, and/or side cameras, can be added to the factory radio. The cameras function automatically and also have a customisable trigger option (via the Axxess Updater Program) if manual switching is required. The interface can also be used if the vehicle does not come equipped with a reverse camera, adding up to four cameras in this scenario.

Important Information:

• Camera Interfaces can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• Models equipped with NAV can only use front and rear camera inputs.
• APVFD03A (Sold Separately) required for 2014-up models with a 4.2-inch display screen.
• Micro USB cable (Sold Separately) required to use the Axxess Updater Program.

Features:

• Add up to 3 additional cameras to the factory screen, while retaining the use of the factory reverse camera
• Will support up to 4 cameras for vehicles without factory reverse camera
• Programmable 12V/5A switched output (Configured through the Axxess Updater Program)
• Reverse & turn signal trigger generated via CAN bus communication of the vehicle
• 4 Programmable camera control wires (Configured through the Axxess Updater Program)
• Simple installation, vehicle specific harness included
• Micro-B USB updatable

Specifications:

• Interface Type: Camera Add-On
• Camera Inputs:
  • Input 1: Reverse Camera
  • Input 2: Left or Right Camera (User Assignable)
  • Input 3: Left or Right Camera (User Assignable)
  • Input 4: Front Camera (User Assignable)
• Optional Manual Control Wires:
• Control 1: Grey/Blue
• Control 2: Grey/Red
• Control 3: Orange
• Control 4: Orange/White

Vehicle Compatibility:

• Ford Ranger (2018 - PX MKIII)
