Aerpro APVCBB8 Bonnet Mount UHF Antenna Bracket Mazda BT-50 2020-On

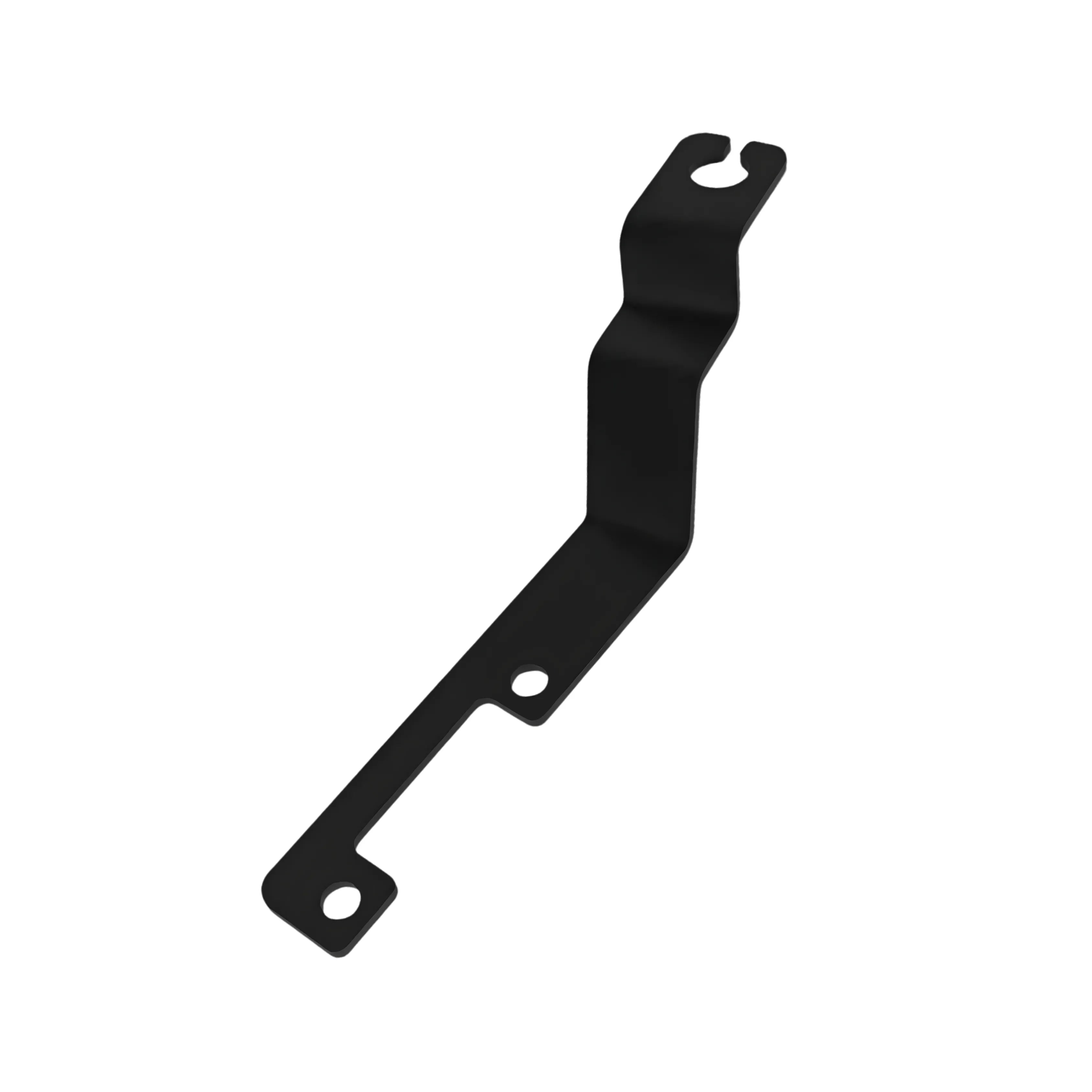

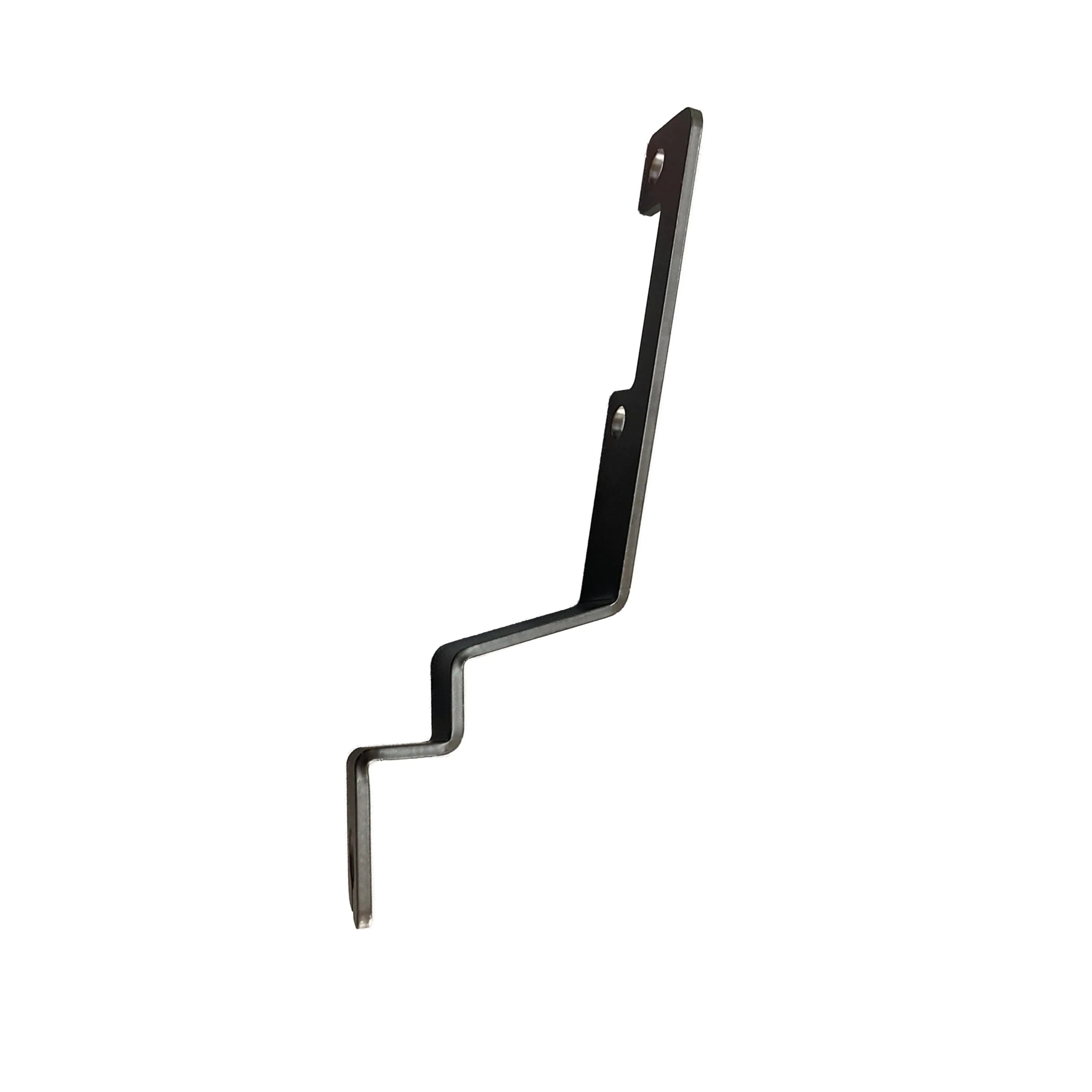

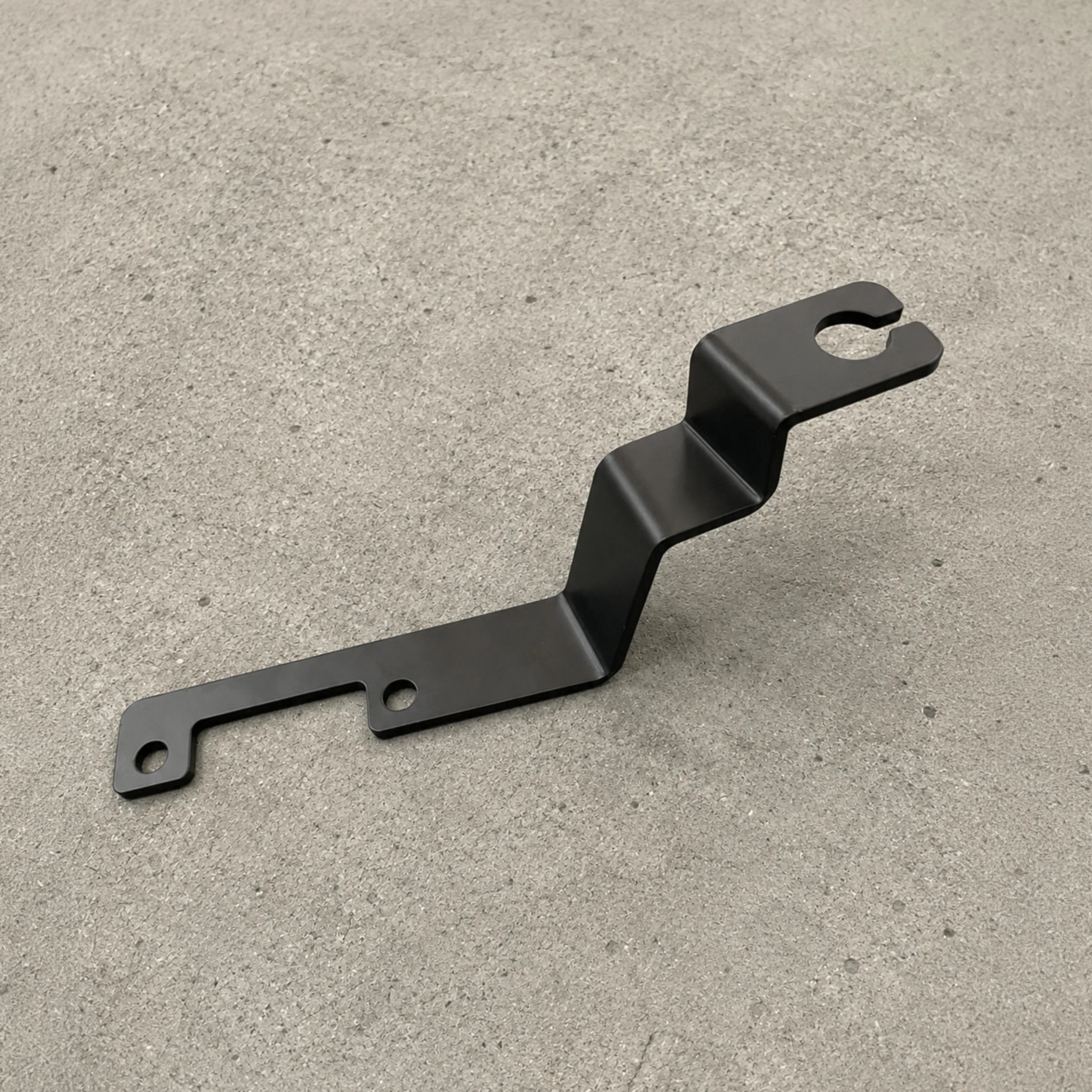

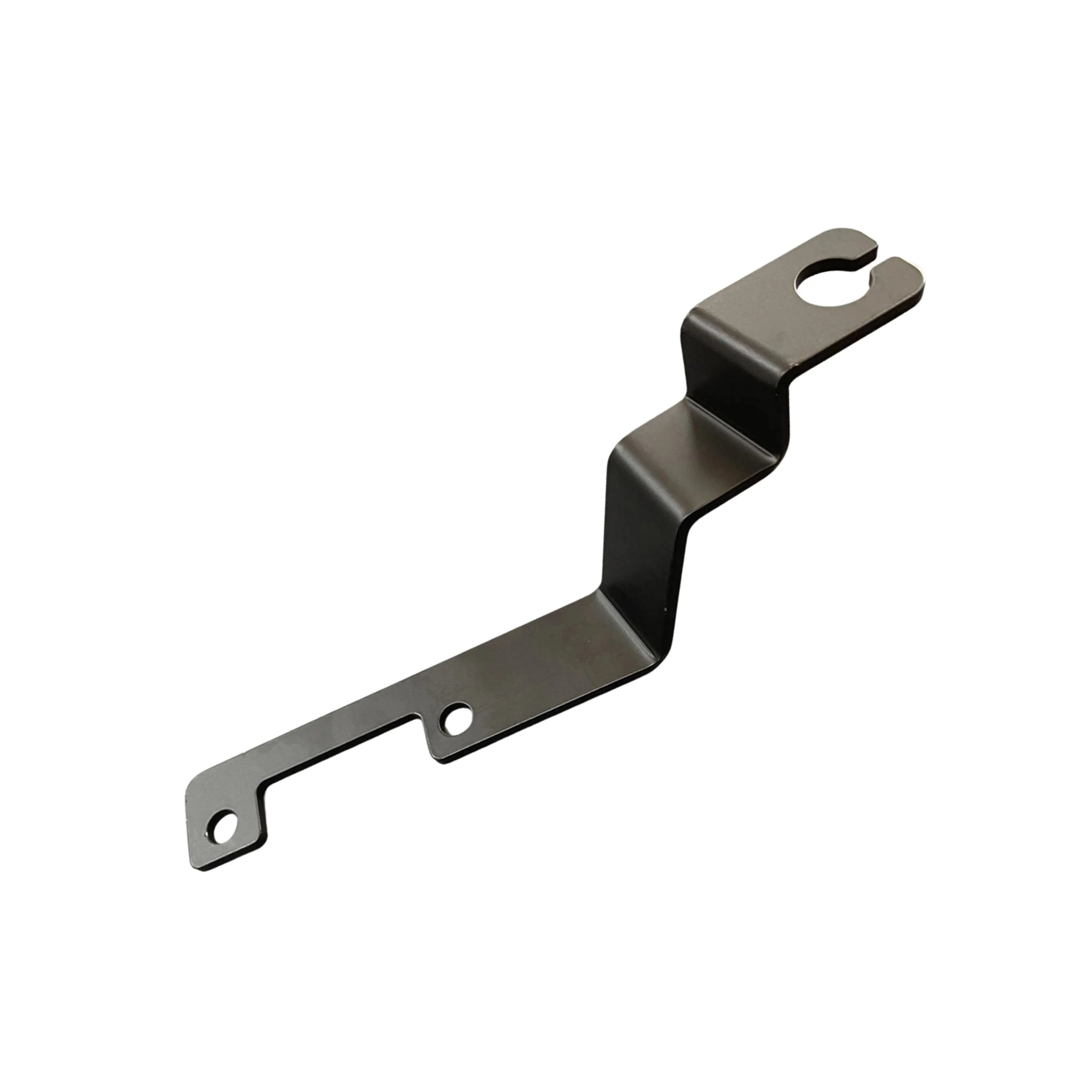

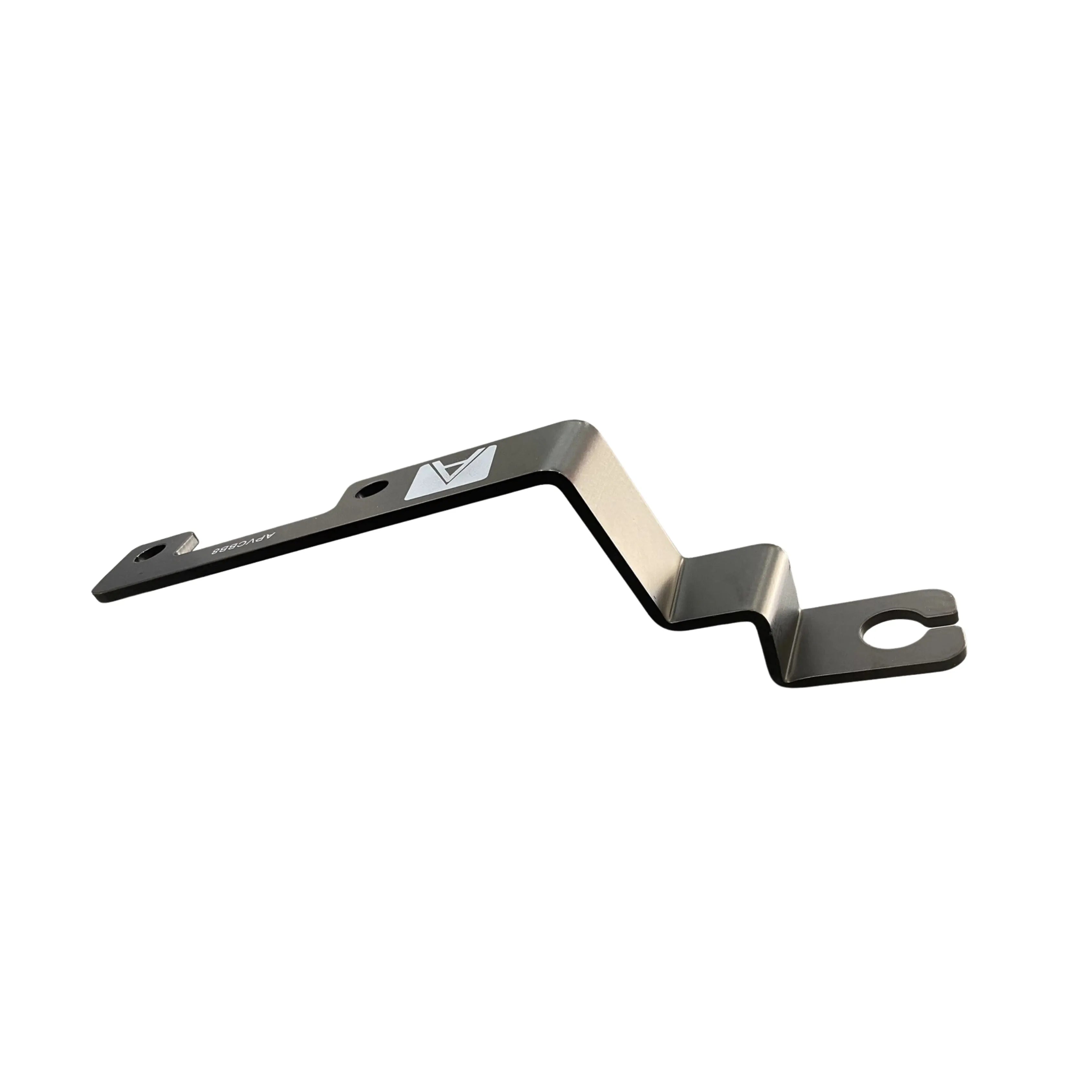

An Australian designed and engineered vehicle-specific bonnet hinge UHF antenna bracket for the Mazda BT-50 (2020-on), the APVCBB8 is constructed from a single piece of press-bent 4mm steel with a matte black powder-coated finish and mounts to the passenger side bonnet hinge using existing mounting points with no vehicle modification required.

Product Overview

The Aerpro APVCBB8 is a bonnet mount UHF antenna bracket designed specifically for the Mazda BT-50 from 2020 onwards. It mounts to the passenger side bonnet hinge using the vehicle's existing mounting points, eliminating the need for drilling or complex modifications. The bracket is constructed from a single piece of press-bent 4mm steel with a matte black powder-coated finish, providing durability suitable for both standard and heavy-duty applications. The 18mm antenna mounting hole accepts all brands of UHF CB antennas, and a 5mm cable slot allows the antenna to be installed or removed easily without fully dismantling the mounting setup. The bracket does not obstruct bonnet operation or interfere with window wipers.

Features & Benefits

Mazda BT-50 2020-On Specific Design: The APVCBB8 is engineered specifically for the Mazda BT-50 from 2020 onwards, ensuring a precise fit to the passenger side bonnet hinge without the fitment compromises of universal brackets. Owners of the earlier Mazda BT-50 (2011-2019) should refer to the APVCBB23.

Passenger Side Bonnet Hinge Mount - No Modification Required: The APVCBB8 mounts directly to the passenger side bonnet hinge using the vehicle's existing mounting points. No drilling, cutting, or complex modifications to the vehicle are required, making it a hassle-free DIY installation.

Does Not Obstruct Bonnet or Window Wipers: The bracket is designed to maintain the full operating range of the bonnet and does not interfere with window wiper function, preserving the vehicle's standard functionality after installation.

Single Piece Press-Bent 4mm Steel Construction: The bracket is formed from a single piece of 4mm steel using a press-bent process, providing a rigid, strong, and reliable mounting platform suited to both on-road and off-road heavy-duty applications.

Matte Black Powder-Coated Finish: The matte black powder-coated finish provides corrosion resistance and a discreet, low-profile appearance that suits the exterior styling of the Mazda BT-50 from 2020 onwards.

18mm Antenna Mounting Hole - Universal UHF CB Antenna Compatibility: The 18mm antenna mounting hole is compatible with all brands of UHF CB antennas using the standard 18mm mounting thread, providing flexibility in antenna selection.

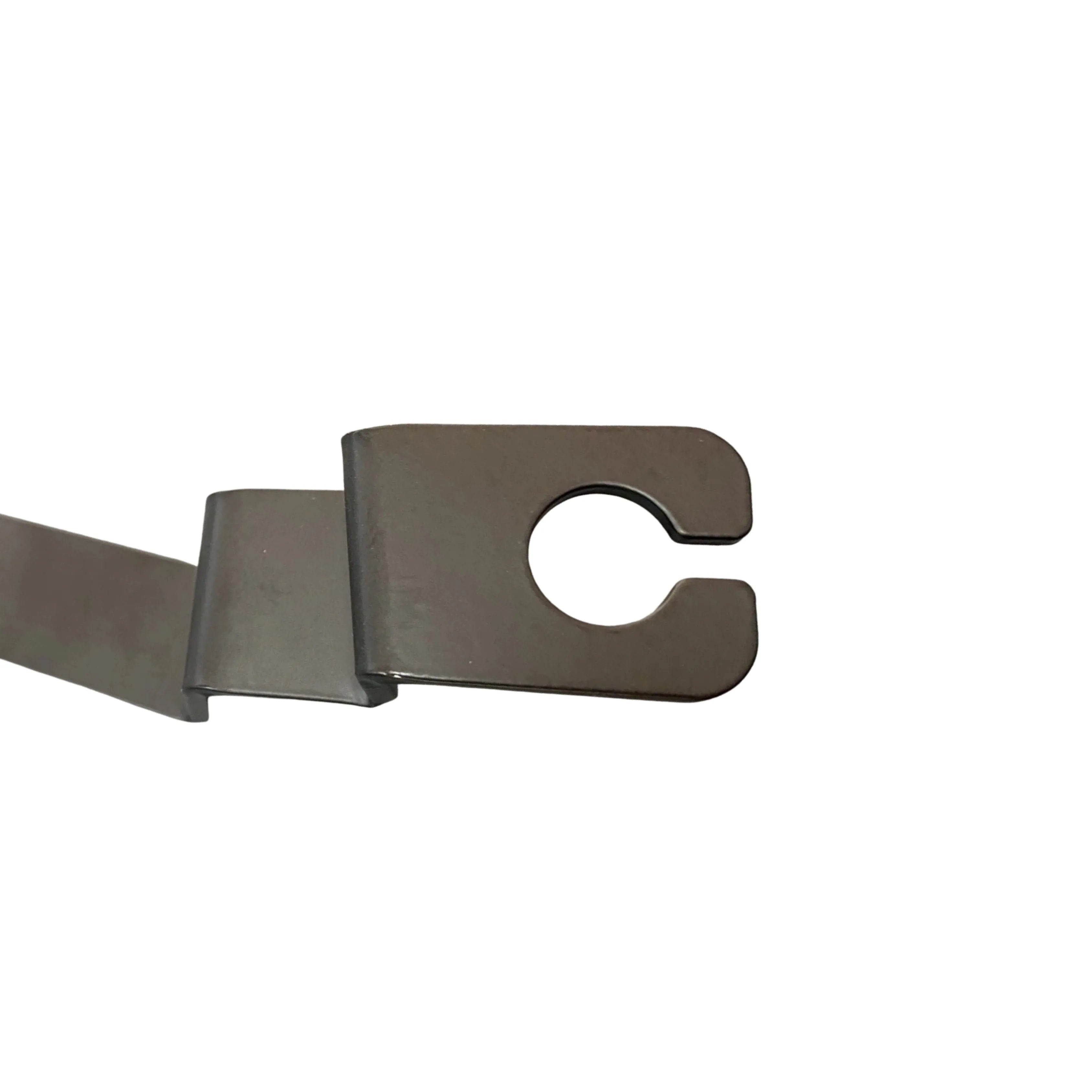

5mm Cable Slot for Easy Antenna Install and Removal: The 5mm cable slot allows the antenna coax cable to be fed through the bracket without requiring the cable connector to be removed, enabling easier antenna installation and removal when needed.

Australian Designed and Engineered: The APVCBB8 is Australian designed and engineered for the specific requirements of the Mazda BT-50 2020-on platform and Australian off-road and heavy-duty use conditions.

Technical Specs

Compatible With

The APVCBB8 is designed specifically for the Mazda BT-50 from 2020 onwards, mounting to the passenger side bonnet hinge using existing mounting points. The 18mm antenna mounting hole is compatible with all brands of UHF CB antennas using a standard 18mm thread. Owners of the Mazda BT-50 from 2011-2019 should refer to the APVCBB23. Confirm your specific BT-50 variant and build date against the Aerpro vehicle fitment guide before purchase.

Frequently Asked Questions

Does the APVCBB8 require drilling or vehicle modification?

No. The APVCBB8 mounts to the passenger side bonnet hinge using the Mazda BT-50's existing mounting points, with no drilling, cutting, or modification to the vehicle required.

Will the APVCBB8 affect bonnet operation or window wipers?

No. The APVCBB8 is designed specifically for the Mazda BT-50 2020-on bonnet hinge profile and does not obstruct bonnet operation or interfere with window wiper function.

What size antenna thread does the APVCBB8 accept?

The APVCBB8 has an 18mm antenna mounting hole, compatible with all standard UHF CB antennas using an 18mm thread, covering the majority of UHF CB antenna brands available in the Australian market.

What is the difference between the APVCBB8 and the APVCBB23?

Both are vehicle-specific bonnet mount UHF antenna brackets for the Mazda BT-50, sharing the same 4mm steel construction, matte black powder-coated finish, 18mm antenna hole, and 5mm cable slot. The APVCBB8 suits the Mazda BT-50 from 2020 onwards, while the APVCBB23 suits the Mazda BT-50 from 2011-2019. The two generations use different bonnet hinge profiles requiring separate brackets.

Is an antenna included with the APVCBB8?

No. The APVCBB8 includes the bracket only. A UHF CB antenna must be sourced separately.
