Product features

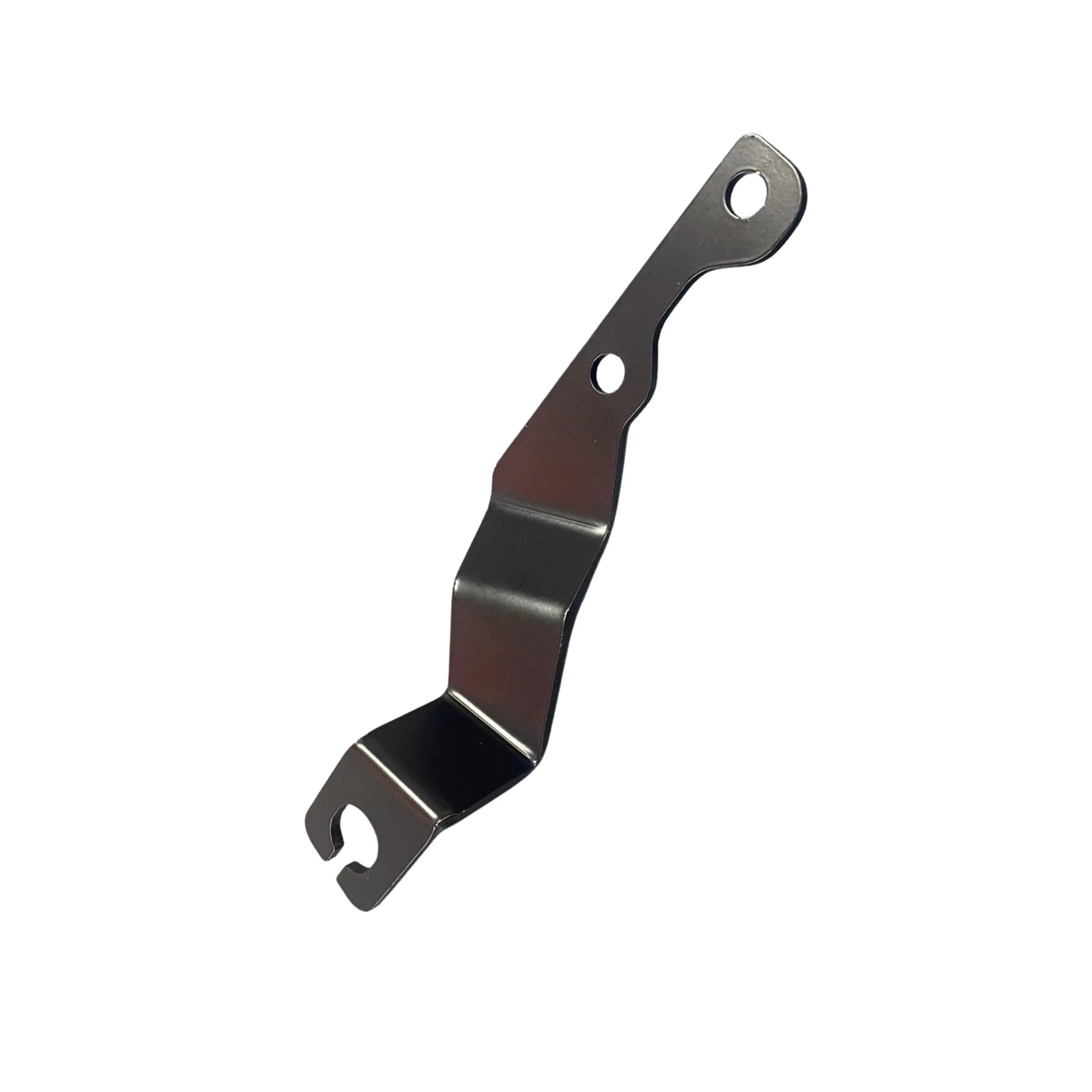

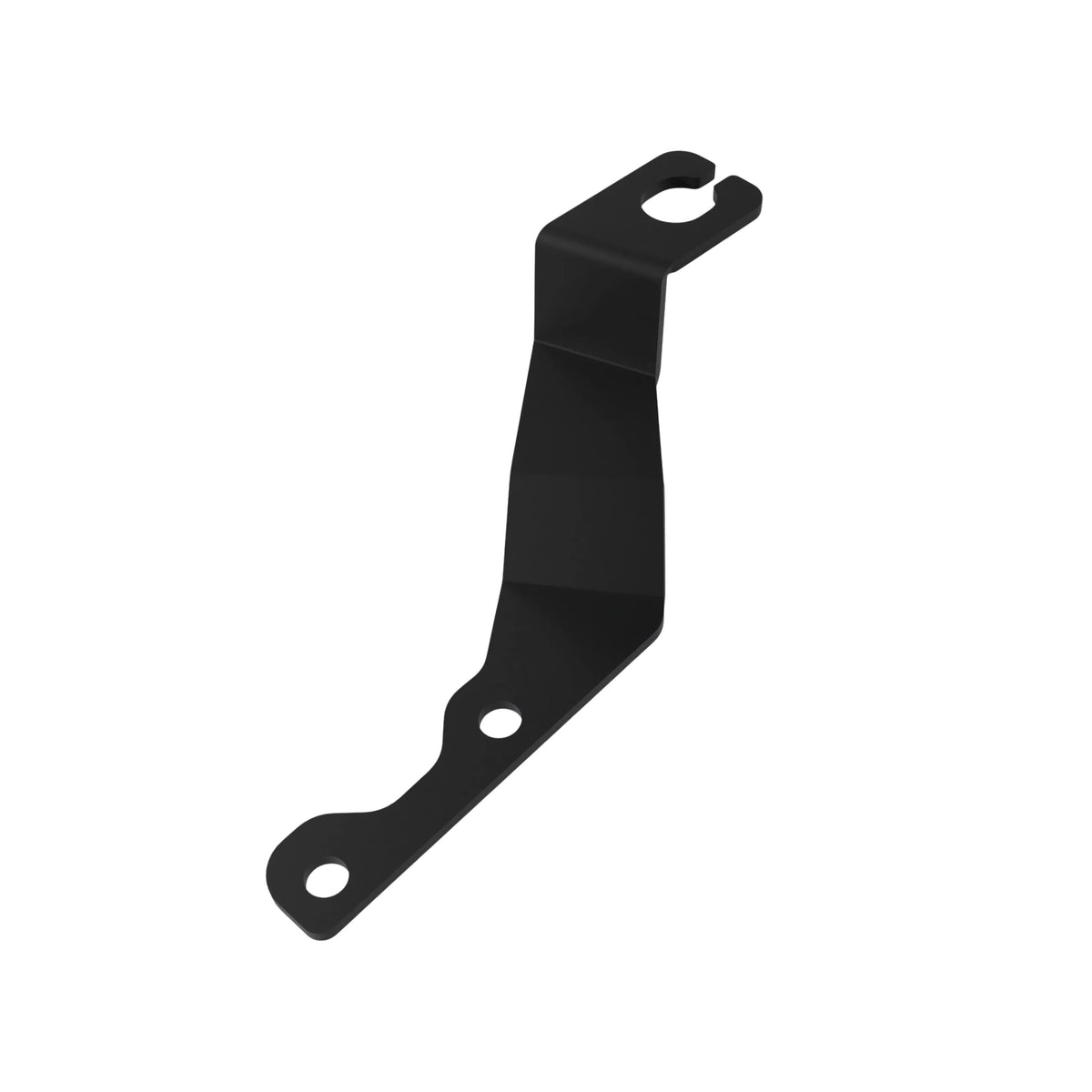

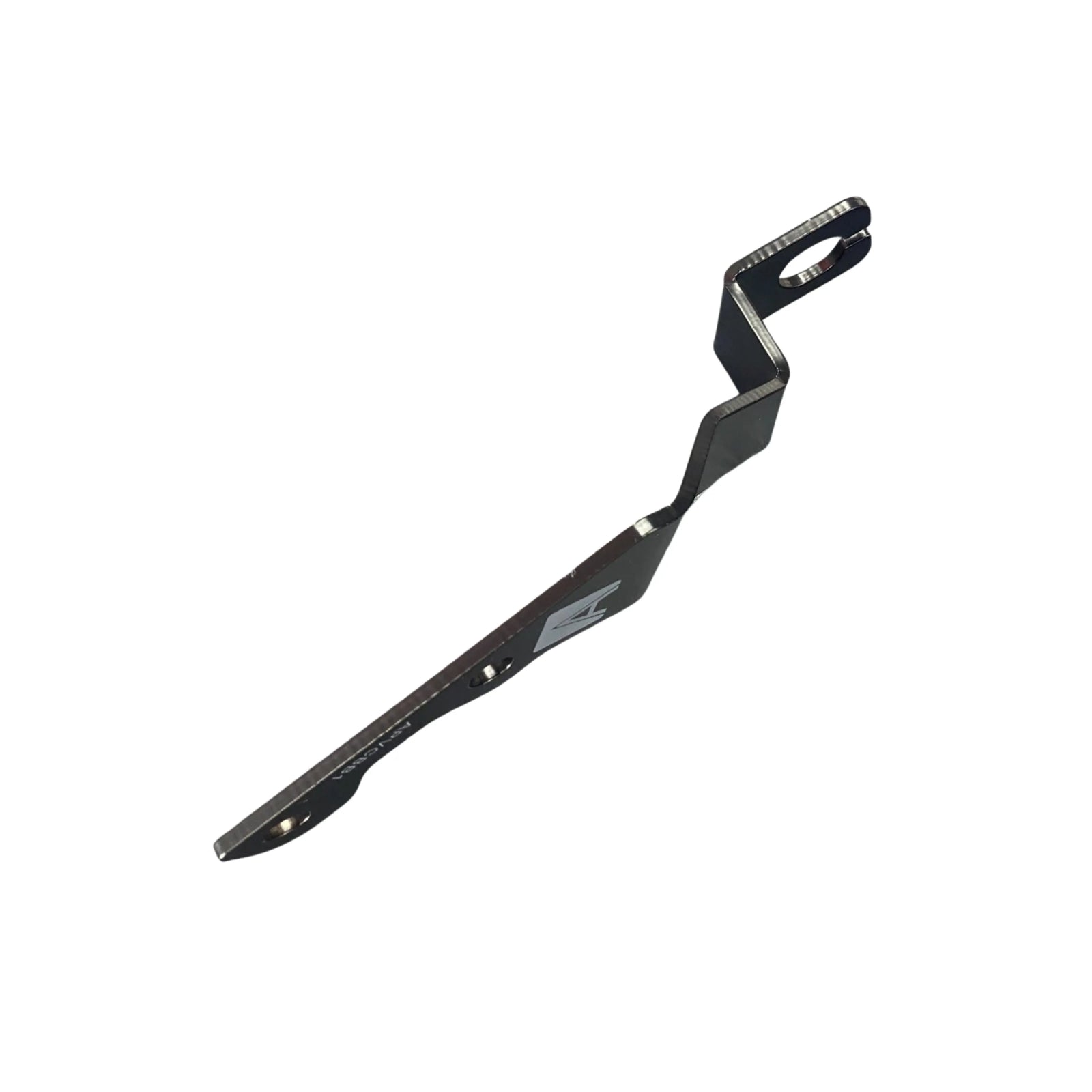

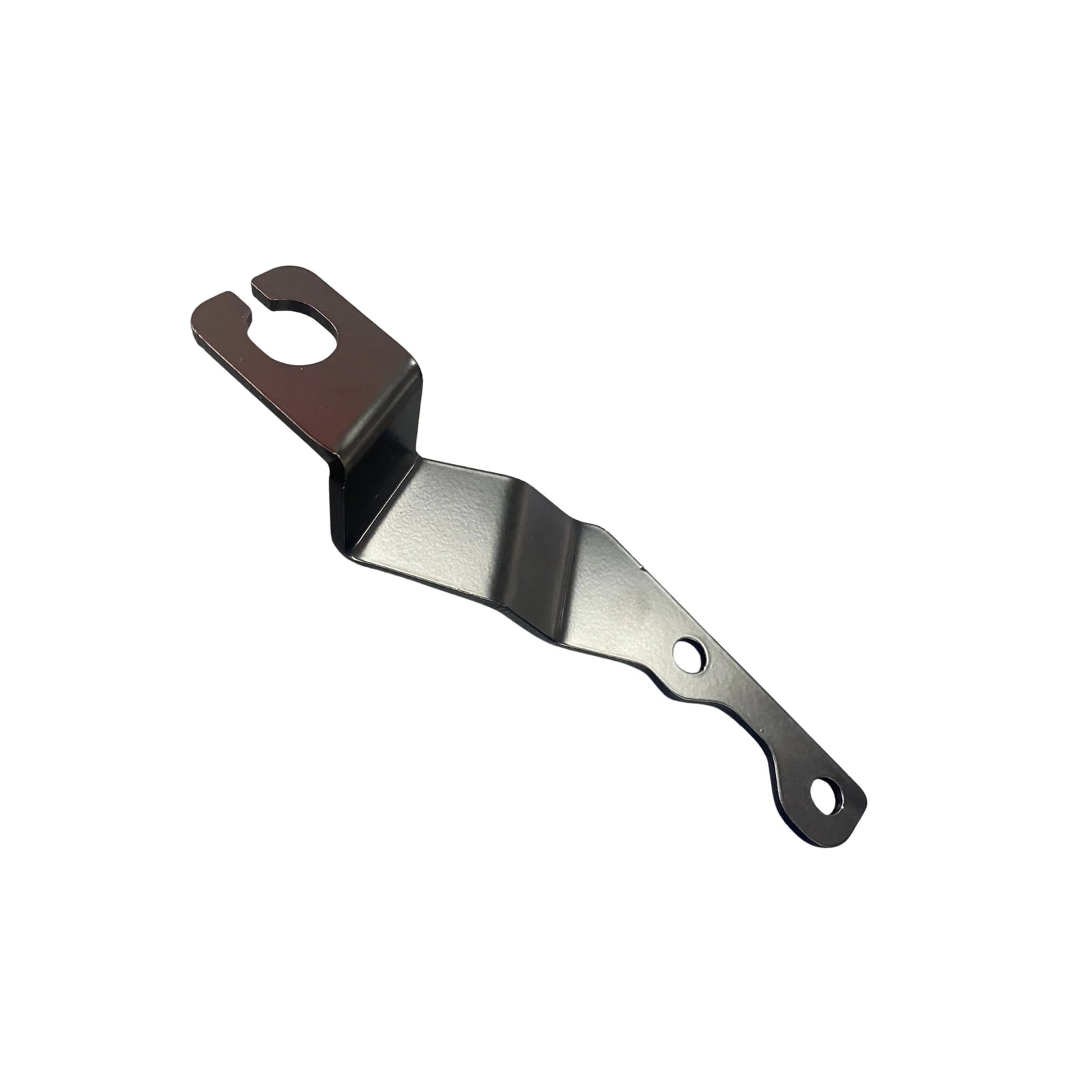

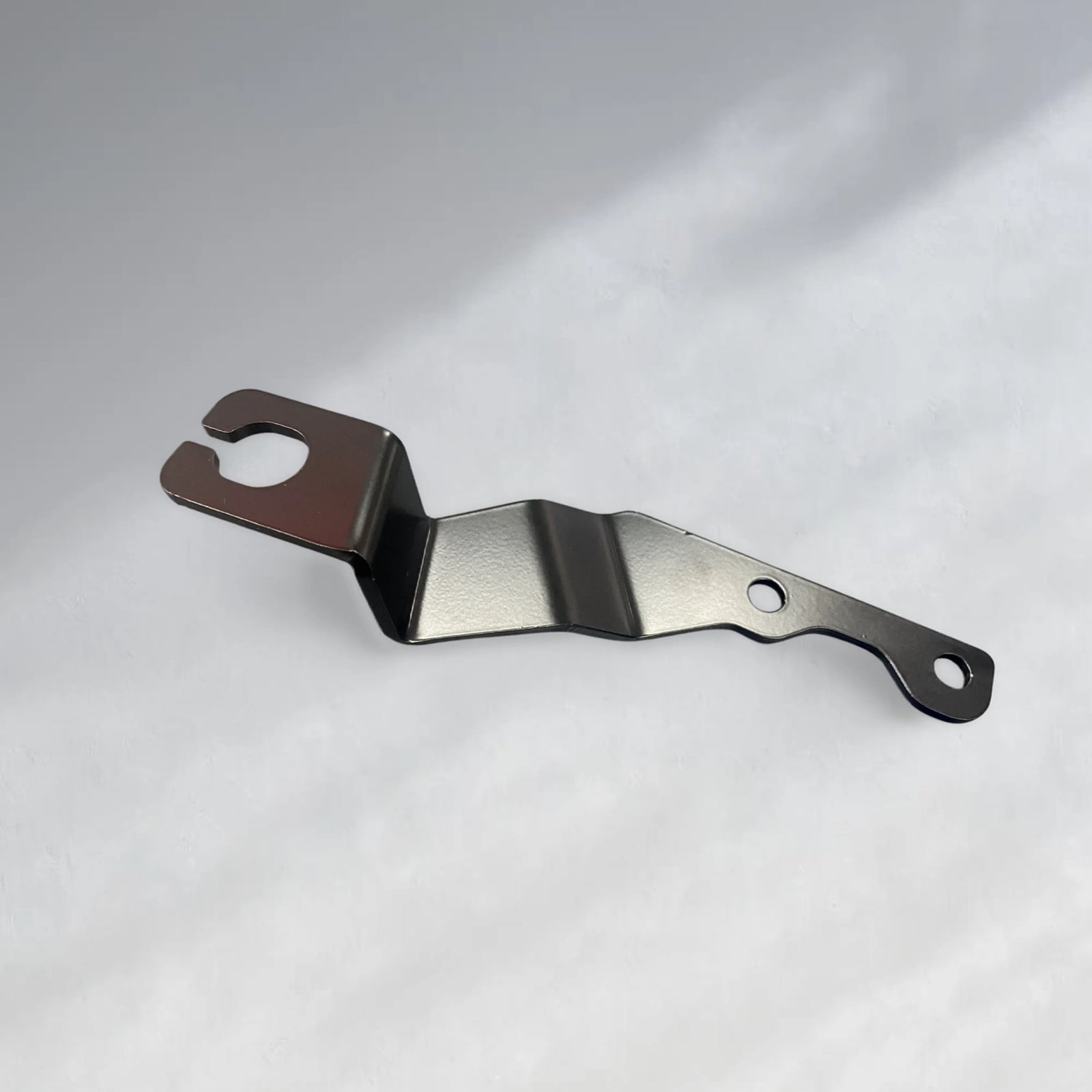

Aerpro APVCBB1 Bonnet Mount UHF Antenna Bracket Isuzu D-Max and MU-X

An Australian designed and engineered vehicle-specific bonnet hinge UHF antenna bracket for the Isuzu D-Max (2012-2020) and MU-X (2013-2021), the APVCBB1 is constructed from a single piece of press-bent 4mm steel with a matte black powder-coated finish and mounts to the passenger side bonnet hinge using existing mounting points with no vehicle modification required.

Product Overview

The Aerpro APVCBB1 is a bonnet mount UHF antenna bracket designed specifically for the Isuzu D-Max from 2012-2020 and the MU-X from 2013-2021. It mounts to the passenger side bonnet hinge using the vehicle's existing mounting points, eliminating the need for drilling or complex modifications. The bracket is constructed from a single piece of press-bent 4mm steel with a matte black powder-coated finish, providing durability suitable for both standard and heavy-duty applications. The 18mm antenna mounting hole accepts all brands of UHF CB antennas, and a 5mm cable slot allows the antenna to be installed or removed easily without fully dismantling the mounting setup. The bracket does not obstruct bonnet operation or interfere with window wipers.

Features & Benefits

Isuzu D-Max 2012-2020 and MU-X 2013-2021 Specific Design: The APVCBB1 is engineered specifically for the Isuzu D-Max from 2012-2020 and the MU-X from 2013-2021, ensuring a precise fit to the passenger side bonnet hinge without the fitment compromises of universal brackets.

Passenger Side Bonnet Hinge Mount - No Modification Required: The APVCBB1 mounts directly to the passenger side bonnet hinge using the vehicle's existing mounting points. No drilling, cutting, or complex modifications to the vehicle are required, making it a hassle-free DIY installation.

Does Not Obstruct Bonnet or Window Wipers: The bracket is designed to maintain the full operating range of the bonnet and does not interfere with window wiper function, preserving the vehicle's standard functionality after installation.

Single Piece Press-Bent 4mm Steel Construction: The bracket is formed from a single piece of 4mm steel using a press-bent process, providing a rigid, strong, and reliable mounting platform suited to both on-road and off-road heavy-duty applications.

Matte Black Powder-Coated Finish: The matte black powder-coated finish provides corrosion resistance and a discreet, low-profile appearance that suits the exterior styling of the Isuzu D-Max and MU-X.

18mm Antenna Mounting Hole - Universal UHF CB Antenna Compatibility: The 18mm antenna mounting hole is compatible with all brands of UHF CB antennas using the standard 18mm mounting thread, providing flexibility in antenna selection.

5mm Cable Slot for Easy Antenna Install and Removal: The 5mm cable slot allows the antenna coax cable to be fed through the bracket without requiring the cable connector to be removed, enabling easier antenna installation and removal when needed.

Australian Designed and Engineered: The APVCBB1 is Australian designed and engineered for the specific requirements of the Isuzu D-Max and MU-X platform and Australian off-road and heavy-duty use conditions.

Technical Specs

Specification Detail
SKU APVCBB1
Brand Aerpro
Compatible Vehicles Isuzu D-Max 2012-2020, Isuzu MU-X 2013-2021
Mounting Position Passenger Side Bonnet Hinge
Metal Type 4mm Steel
Finish Matte Black Powder-Coated
Antenna Mounting Hole 18mm
Cable Slot Size 5mm
Construction Single Piece Press-Bent
Application Standard and Heavy-Duty
Design Origin Australian Designed and Engineered
Inclusions Bracket

Compatible With

The APVCBB1 is designed specifically for the Isuzu D-Max from 2012-2020 and the MU-X from 2013-2021, mounting to the passenger side bonnet hinge using existing mounting points. The 18mm antenna mounting hole is compatible with all brands of UHF CB antennas using a standard 18mm thread. Confirm your specific D-Max or MU-X variant and build date against the Aerpro vehicle fitment guide before purchase.

Frequently Asked Questions

Does the APVCBB1 require drilling or vehicle modification?

No. The APVCBB1 mounts to the passenger side bonnet hinge using the Isuzu D-Max and MU-X existing mounting points, with no drilling, cutting, or modification to the vehicle required.

Will the APVCBB1 affect bonnet operation or window wipers?

No. The APVCBB1 is designed specifically for the Isuzu D-Max and MU-X bonnet hinge profile and does not obstruct bonnet operation or interfere with window wiper function.

What size antenna thread does the APVCBB1 accept?

The APVCBB1 has an 18mm antenna mounting hole, compatible with all standard UHF CB antennas using an 18mm thread, covering the majority of UHF CB antenna brands available in the Australian market.

Is the APVCBB1 compatible with both the D-Max and MU-X?

Yes. The APVCBB1 is confirmed compatible with both the Isuzu D-Max from 2012-2020 and the MU-X from 2013-2021.

Is an antenna included with the APVCBB1?

No. The APVCBB1 includes the bracket only. A UHF CB antenna must be sourced separately.
