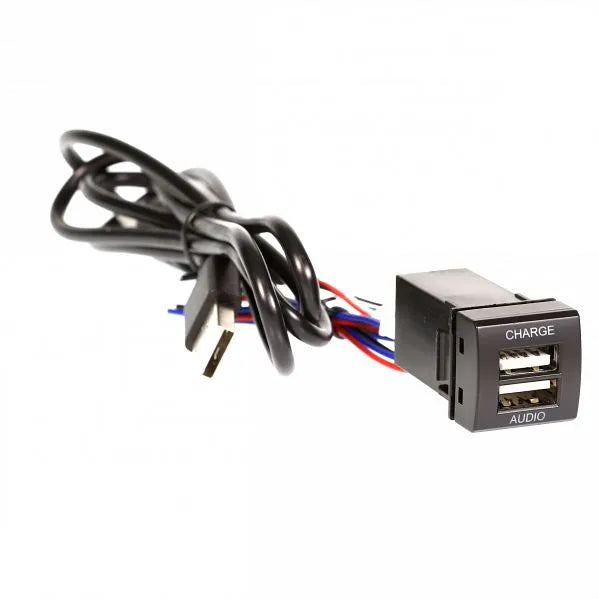

Aerpro APUSBTO5 Dual USB Charge & Sync Suit Toyota Various Models (23mm x 23mm)

Quick & Easy to Install, Providing A Professional & Discreet USB Upgrade Solution For the Vehicle!

Dual USB Charge & Sync
The Aerpro APUSBTO5 Dual USB Charge & Sync has been designed specifically to suit various Toyota vehicles. It replaces the spare factory switch blanking plates in the vehicle dashboard that measure 23mm wide x 23mm high, providing seamless USB integration for your vehicle. Featuring two USB ports, one is designed for smartphone and device fast charging at 3A max and the other provides USB pass-through sync for Audio, CarPlay & Android Auto when connected to the rear USB input on compatible aftermarket head units. The USB charge port illuminates blue making it easy to find day and night. The clip-in design combined with the simple 3-wire plus USB connection, makes it quick and easy to install, providing a professional and discreet USB upgrade solution for the vehicle.

Important Information:

• The AUDIO USB Port is passed through, it will only function when connected to the rear USB input of an aftermarket head unit.
• Not recommended for aftermarket head units with a USB lead from the rear of the unit. Recommended for aftermarket head units with USB ports on the rear of the unit.

Aerpro APUSBTO5 Features:

• Suitable for Toyota vehicles with 23mm wide x 23mm high switch blanking plates
• Replaces factory switch blanking plates in the dashboard
• Vehicle-specific OEM-style design for discreet seamless USB integration
• Dual USB ports, one fast charge, and one sync pass-through
• The charge port supports up to 3 amps max and illuminates blue
• Audio/sync port provides USB pass-through for Audio, CarPlay & Android Auto when connected to compatible head units
• Ferrite choke on USB cable to reduce signal interference
• Simple clip-in design makes it easy to install with no modifications required
• 3 wire installation; accessory power, illumination, earth/ground, plus USB connection

Aerpro APUSBTO5 Specifications:

• Vehicle Application: Various Toyota Vehicles
• Panel Dimensions:
  Body: 23mm (W) x 23mm (H)
  Face: 23mm (W) x 23mm (H)
• Connection Type: Dual USB
• USB 1: Fast Charge 3.0A Max
• USB 2: Pass-Through (Audio & Sync)
• Mounting Type: Clip-In
• Wiring Installation:
  12V+ Accessory Power: Red
  Earth: Black
  Illumination: Blue
  USB Connection: USB-A

Vehicle Compatibility:

• Toyota C-HR (2019)
• Toyota Camry (2017 )
• Toyota Corolla (2018 to 2022)
• Toyota Fortuner (2020)
• Toyota Granvia (2019)
• Toyota Hiace (2019)
• Toyota Kluger (2021)
• Toyota Rav4 (2019)
• Toyota Yaris (2019)

FAQ

What is the Aerpro APUSBTO5?

A clip in dual USB socket that replaces a spare Toyota switch blank (23mm wide x 23mm high). One port fast charges at up to 3A and the other passes audio, CarPlay and Android Auto through to the head unit.

Do I need a certain head unit?

Your aftermarket head unit needs a rear USB input for sync. Charging works either way.

How is it wired?

Power, earth and illumination, plus the USB lead to the back of the head unit.

Will it fit my car?

Switch blanks vary between models. Check the vehicle list above. Send the F.A.E. team your make, model and year and we will confirm before you order.
