Aerpro APUSBIZ1 Dual USB Charge & Sync Suit Select Holden & Isuzu Vehicles

Retain Vehicles USB Sockets or Replace Factory Switch Panel

Dual USB Charge & Sync

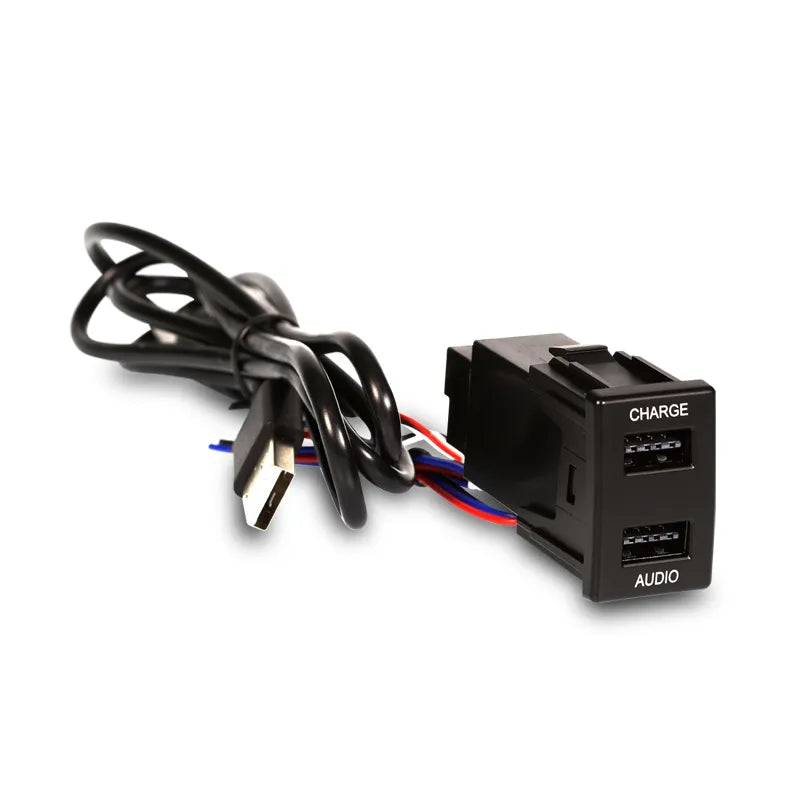

The Aerpro APUSBIZ1 has been designed specifically to suit various Holden & Isuzu vehicles. It replaces the spare factory switch blanking plates in the vehicle dashboard that measure 22.5mm wide x 33.5mm high, providing seamless USB integration for your vehicle.

Featuring two USB ports, one is designed for smartphone and device fast charging at 3A max and the other provides USB pass through sync for Audio, CarPlay & Android Auto when connected to the rear USB input on compatible aftermarket headunits.

The USB ports are bidirectional, allowing the cable to be connected either way and the charge port illuminates blue making it easy to find day and night. The clip-in design combined with the simple 3 wire plus USB connection, makes it quick and easy to install, providing a professional and discreet USB upgrade solution for the vehicle.

Important Information:

• The Audio USB Port is pass through, it will only function when connected to the rear USB input of an aftermarket head unit.
• Not recommended for aftermarket head units with a USB lead from rear of unit. Recommended for aftermarket head units with USB port on the rear of unit.

Aerpro APUSBIZ1 Features:

• Suitable for Holden & Isuzu vehicles with 22.5mm wide x 33.5mm high switch blanking plates
• Replaces factory switch blanking plates in the dashboard
• Vehicle specific OEM style design for discreet seamless USB integration
• Dual USB ports, one fast charge and one sync pass through
• Charge port supports up to 3 amps max and illuminates blue
• Audio/sync port provides USB pass through for Audio, CarPlay & Android Auto when connected to compatible headunits
• Bidirectional USB ports, allowing the cable to be connected either way
• Ferrite choke on USB cable to reduce signal interference
• Simple clip-in design makes it easy to install with no modifications required
• 3 wire installation; accessory power, illumination, earth/ground, plus USB connection

Aerpro APUSBIZ1 Specifications:

• Vehicle Application: Various Holden & Isuzu Vehicles
• Panel Dimensions:
  • Body: 22.5mm (W) X 33.5mm (H)
  • Face: 22.5mm (W) X 33.5mm (H)
• Connection Type:
  • USB 1: Fast Charge 3.0A Max
  • USB 2: Pass Through (AUDIO & Sync)
• Dual USB Mounting Type: Clip-In
• Wiring Installation:
  • 12V+ Accessory Power: Red
  • Earth: Black
  • Illumination: Blue
  • USB Connection: USB-A

Vehicle Compatibility:

• Holden Colorado (2012 to 2014 RG)
• Holden Colorado (2014 to 2016)
• Holden Colorado 7 (2012 to 2014)
• Holden Colorado 7 (2014 to 2016)
• Isuzu D-Max (2012 to 2020)
• Isuzu D-Max (2021)
• Isuzu MU-X (2013 to 2021)
• Isuzu MU-X (2021)
• Mazda BT-50 (2020)

FAQ

What is the Aerpro APUSBIZ1?

A clip in dual USB socket that replaces a spare Holden and Isuzu switch blank (22.5mm wide x 33.5mm high). One port fast charges at up to 3A and the other passes audio, CarPlay and Android Auto through to the head unit.

Do I need a certain head unit?

Your aftermarket head unit needs a rear USB input for sync. Charging works either way.

How is it wired?

Power, earth and illumination, plus the USB lead to the back of the head unit.

Will it fit my car?

Switch blanks vary between models. Check the vehicle list above. Send the F.A.E. team your make, model and year and we will confirm before you order.
