Aerpro APTYCBH3 Hideaway 5W UHF CB Kit Toyota Hilux 2005-2015

Aerpro APTYCBH3 Complete Hideaway 5W UHF CB Kit for Toyota Hilux 2005 to 2015 with AP477H Radio CBSTHD1 3dBi Antenna APVCBB14 Bonnet Bracket and ARJ45TO6 RJ45 Pass-Through Adapter

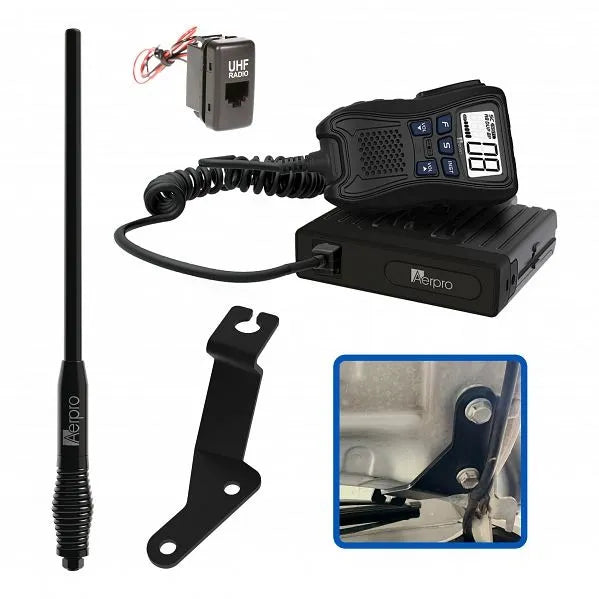

The Aerpro APTYCBH3 is a complete hideaway UHF CB radio kit designed specifically for the Toyota Hilux (2005 to 2015). Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB14 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45TO6 RJ45 pass-through adapter with blue illumination. Everything needed to install a concealed hideaway UHF radio in the Hilux (2005 to 2015) is in the box. 5-year warranty on the radio, 1-year warranty on accessories.

Product overview

The APTYCBH3 is a hideaway UHF CB kit purpose-matched to the Toyota Hilux (2005 to 2015). The AP477H radio body mounts out of sight under the dash or seat while all controls and functions are operated from a remote speaker microphone with 7-colour backlit LCD display.

The ARJ45TO6 adapter clips into a factory switch blanking plate opening in the Hilux's dashboard (21.5mm wide by 40mm high), providing a clean, OEM-style blue-illuminated RJ45 pass-through for the microphone cable. Illumination requires a 12V positive (red wire) and earth (black wire) connection.

The AP477H provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The 2-metre remote microphone extension cable is included. Compatible with 12V and 24V systems.

The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB14 mounts on the passenger side bonnet hinge of the Hilux (2005 to 2015) using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.

Features and benefits

Complete hideaway kit for Toyota Hilux 2005 to 2015: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.

AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls operated from the 7-colour backlit LCD remote microphone.

ARJ45TO6 OEM-style clip-in RJ45 pass-through adapter with blue illumination: Replaces a factory switch blanking plate (21.5mm W x 40mm H) in the Hilux dashboard. Requires 12V positive and earth wiring for illumination.

5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.

2-metre remote microphone extension cable included.

CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.

4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.

APVCBB14 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Hilux.

Does not obstruct bonnet or window wipers.

5-year warranty on the radio, 1-year warranty on accessories.

What's in the box

AP477H UHF CB Radio:

• 1x UHF CB Hideaway Radio
• 1x Remote Speaker Microphone
• 1x Microphone Mounting Clip
• 1x Radio Mounting Bracket
• 1x Microphone Extension Cable (2 metres)

CBSTHD1 UHF Antenna:

• 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
• 1x 4.5m RG58 Cable with Female FME Connector
• 1x FME to PL259 Adaptor
• 1x Mounting Nut
• 1x Weather Cap

APVCBB14 Bonnet Bracket:

• 1x Bonnet Mount Bracket

ARJ45TO6 RJ45 Pass-Through Adapter:

• 1x RJ45 Pass-Through Adapter

Technical specs

AP477H UHF CB Radio

CBSTHD1 UHF Antenna

APVCBB14 Bonnet Bracket

ARJ45TO6 RJ45 Pass-Through Adapter

Compatible with

Frequently asked questions

What is included in the APTYCBH3 kit? The kit includes the Aerpro AP477H hideaway UHF CB radio with remote speaker microphone, mounting bracket, microphone mounting clip, and 2-metre microphone extension cable; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; the Aerpro APVCBB14 bonnet bracket; and the Aerpro ARJ45TO6 RJ45 pass-through adapter.

What does the ARJ45TO6 adapter do and does it require wiring? The ARJ45TO6 clips into a factory switch blanking plate opening in the Hilux dashboard (21.5mm wide by 40mm high) to provide a clean OEM-style pass-through for the RJ45 microphone cable. It features blue illumination which requires a 12V positive (red wire) and earth (black wire) connection. If illumination is not required, the wiring connections can be omitted.

Is the APTYCBH3 the same as the APTYCBH1? No. The APTYCBH1 suits the Toyota Hilux (2015-on) and uses the APVCBB4 bracket and ARJ45TO7 adapter. The APTYCBH3 suits the older Hilux (2005 to 2015) and uses the APVCBB14 bracket and ARJ45TO6 adapter, which has a different blanking plate size (21.5mm wide by 40mm high). Confirm your Hilux model year before purchasing.

Does the APVCBB14 bracket require drilling into the Hilux? No. The APVCBB14 uses existing mounting points on the passenger side bonnet hinge of the Toyota Hilux (2005 to 2015) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.

What warranty does the APTYCBH3 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB14 bracket, and ARJ45TO6 adapter each carry a 1-year warranty.
