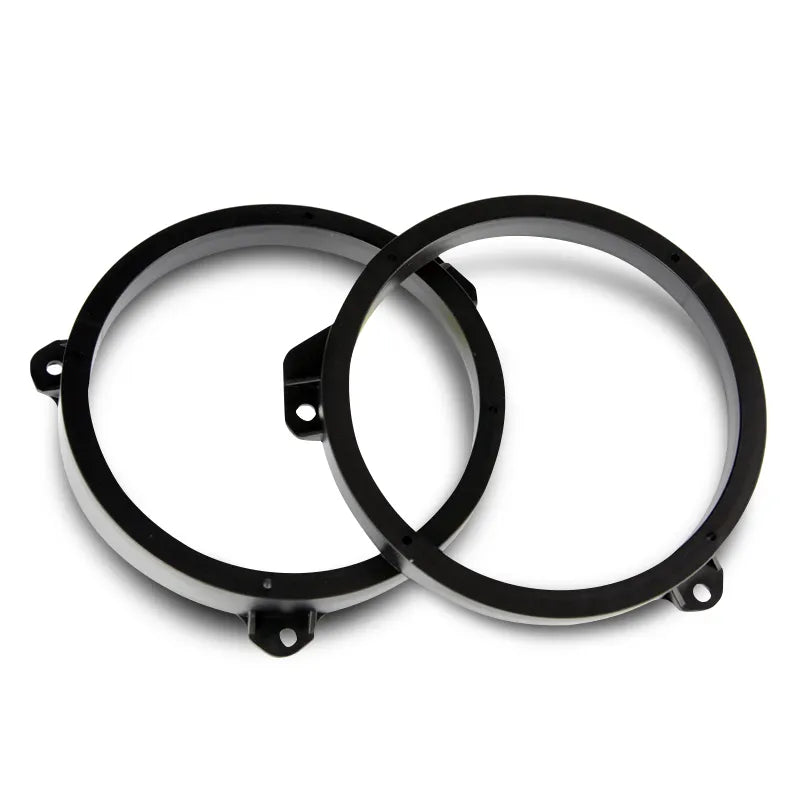

Two black spacer rings with mounting ears, shown overlapping at an angle
Two black spacer rings with mounting ears, shown overlapping at an angle
One black ring face on with three mounting ears, and an angled spacer lying below it
One black ring face on with three mounting ears, and an angled spacer lying below it
Click to open expanded view
AERPRO logo

Aerpro APS323 6.5" 165mm Front Speaker Spacer Suit Subaru Various Models

SKU: APS323
Price
$24.99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Two black spacer rings with mounting ears, shown overlapping at an angle

Aerpro APS323 6.5" 165mm Front Speaker Spacer Suit Subaru Various Models

$24.99

Product features

APS323 spacers let a 6.5 inch (165mm) aftermarket speaker bolt into the front doors of many Subarus, and the rear doors of the Forester from 2013. They are angled, deeper at the top than the bottom, to lift the speaker clear of the window track and line it up with the factory mounting.

Why Subaru doors need a spacer

Subaru factory speakers sit on a moulded bracket. Take the bracket away and an aftermarket speaker either has nothing to screw into or its magnet hits the glass when the window winds down. This spacer moves the speaker out from the door skin and gives it a flat face to seal against.

Dimensions

Speaker size 6.5 inch, 165mm
Inside diameter 146mm
Outside diameter 170mm
Depth 34mm high side, 18mm low side
Position Front doors, rear doors on Forester from 2013
Weight 0.05kg

Subaru models listed by Aerpro

  • Forester SG 2002 to 2007, SH 2008 to 2012, SJ 2013 to 2014 and 2015 to 2018
  • Impreza GP and GJ 2015 to 2016
  • Levorg VM 2016 to 2020
  • Liberty (Legacy) BM and BR 2009 to 2014
  • Outback 2009 to 2014

Before you buy

Check the cutout depth of your new speakers against the window. With the glass all the way down, measure from the mounting face to the glass and compare it with the speaker's mounting depth. A strip of foam tape around the spacer face stops buzzes once the trim goes back on.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ

Do I get two?

Speaker spacers are normally sold in pairs, but the Aerpro listing does not state a quantity. Ask us to confirm before you order.

Will 6x9 speakers fit?

No. These suit round 6.5 inch speakers only.

Will they fit the rear doors of my Outback?

Aerpro lists the front position for all models and the rear doors only on the Forester from 2013.

How do they go in?

Remove the door trim and factory speaker bracket, screw the spacer to the door through the original mounting holes, then screw the new speaker to the spacer. Seal the face with foam tape before the trim goes back.

What does the pack hold?

Aerpro does not list the pack contents or count for APS323, so we will confirm how many spacers come in the pack when you ask.
