Aerpro APP0261 Amplifier Retention Harness Suit Lexus/Toyota Various Models

Simply Plugs Into the Factory 15 Pin Lexus/Toyota Plug!

Amplifier Retention Harness

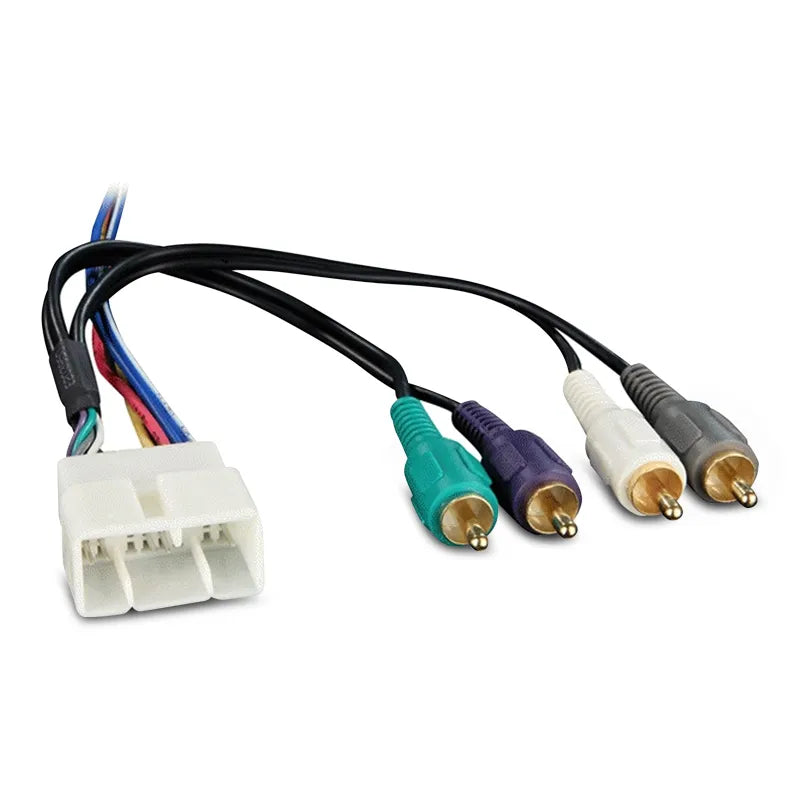

The Aerprio APP0261 allows you to retain the factory 4-channel amplified system in your Toyota or Lexus when upgrading to an aftermarket headunit. The harness simply plugs into the factory 15 Pin Lexus/Toyota plug behind the original headunit and converts it to 4 RCA plugs which connect into the rear of the aftermarket headunit that has 4 RCA amplifier inputs (Front & Rear).

The harness also provides several bare wires which need to be soldered to the aftermarket radios wiring loom including Constant Power, Accessory Power, Amp Turn On Trigger, etc. (Wire details can be found in the specifications section). When using this harness the Aerpro ISO Plug and Play System will not be compatible.

Please Note:

• The aftermarket headunit must have Front and Rear Inputs for the amplifier.
• When using this harness the Aerpro ISO Plug and Play System will not be compatible.

Features:

• Allows aftermarket headunits to integrate with the factory amplifier in your Lexus or Toyota.
• 15-Pin Lexus/Toyota-specific plug converts to 4 standard RCA plugs.
• Bare wire outputs including Constant Power, Accessory Power, Amp Trigger, Illumination, etc. need to be soldered to the aftermarket head unit's wiring loom.
• Aftermarket headunit must have Front and Rear RCA AMP inputs.
• Simply install it into the vehicle behind the headunit.
• The wiring configuration can be found in the specifications section.

Specifications:

• Harness Type: Amplifier Retention
• Plug Type: Vehicle Specific (15 PIN)
• Connection Type: Bare Wire & 4x RCA Plugs
• Wiring Configuration (Pin - Colour - Function):
  1 - Blue / White - AMP Turn On
  2 - Orange - Illumination
  3 - Red Accessory
  4 - Yellow Constant 12V
  5 - Brown / White Mute
  6 - White Lt Front AMP Input (+)
  7 - Grey Rt Front AMP Input (+)
  8 - Blue Power Antenna
  9 - Not Used N/A
  10 - Brown - Telephone Mute
  11 - Black - Ground
  12 - Black / White - Signal Ground
  13 - Brown / Yellow - Beep
  14 - Green - Left Rear AMP Input (+)
  15 - Purple - Right Rear AMP Input (+)

Vehicle Compatibility:

• Lexus ES300 (1992 - 1996)
• Lexus ES300 (1997 - 2000)
• SC300, SC400 (1991 - 2000)
• Toyota Chaser (1996 - 2001)
• Toyota Soarer (1991 - 2000)
