Aerpro APNICBH2 Hideaway 5W UHF CB Kit Nissan Patrol Y62 2019-On
Click to open expanded view
AERPRO logo

Aerpro APNICBH2 Hideaway 5W UHF CB Kit Nissan Patrol Y62 2019-On

SKU: APNICBH2
Price
$599.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

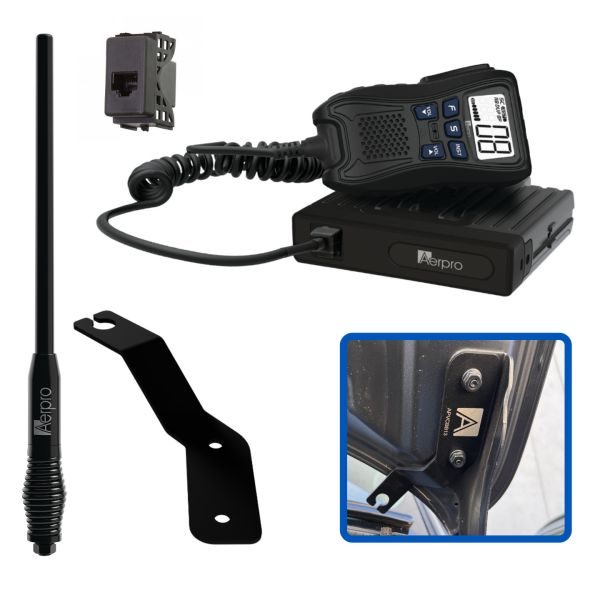

Aerpro APNICBH2 Complete Hideaway 5W UHF CB Kit for Nissan Patrol Y62 2019-On with AP477H Radio CBSTHD1 3dBi Antenna APVCBB13 Bonnet Bracket and ARJ45NS2 RJ45 Pass-Through Adapter

The Aerpro APNICBH2 is a complete hideaway UHF CB radio kit designed specifically for the Nissan Patrol Y62 (2019-on). Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB13 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45NS2 RJ45 pass-through adapter. Everything needed to install a concealed hideaway UHF radio in the Y62 Patrol is in the box. 5-year warranty on the radio, 1-year warranty on accessories.

Product overview

The APNICBH2 is the hideaway version of the APNICBE2 compact kit. Where the APNICBE2 uses the AP477E standard radio (all controls on the radio body), the APNICBH2 uses the AP477H hideaway radio the radio body mounts out of sight under the dash or seat, while a remote speaker microphone with a 7-colour backlit LCD display handles all controls from a convenient dash-mounted position.

The ARJ45NS2 RJ45 pass-through adapter replaces a factory switch blanking plate in the Y62's dashboard (21mm wide by 36mm face, 22mm wide by 41mm base) to provide a clean, OEM-style pass-through point for the RJ45 microphone cable, eliminating loose cables across the cabin.

The AP477H provides 5W output across all 80 UHF CB channels, with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The remote microphone extension cable (2 metres) is included. The radio is compatible with 12V and 24V systems.

The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB13 mounts on the passenger side bonnet hinge using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.

Features and benefits

Complete hideaway kit for Nissan Patrol Y62 2019-on: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.

AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls and functions operated from the 7-colour backlit LCD remote microphone.

7-colour backlit LCD display on the remote microphone: Personalised display colour to suit the vehicle interior and personal preference.

5W, 80 channels, 12V/24V compatible: Full-featured UHF CB with CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.

ARJ45NS2 RJ45 pass-through adapter: Replaces factory switch blanking plate (21mm W x 36mm face) for a clean, OEM-style cable pass-through in the dashboard.

2-metre remote microphone extension cable included.

CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting without a vehicle body ground plane.

4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.

APVCBB13 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Patrol.

Does not obstruct bonnet or window wipers.

5-year warranty on the radio, 1-year warranty on accessories.

What's in the box

AP477H UHF CB Radio:

  • 1x UHF CB Hideaway Radio
  • 1x Remote Speaker Microphone
  • 1x Microphone Mounting Clip
  • 1x Radio Mounting Bracket
  • 1x Microphone Extension Cable (2 metres)

CBSTHD1 UHF Antenna:

  • 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
  • 1x 4.5m RG58 Cable with Female FME Connector
  • 1x FME to PL259 Adaptor
  • 1x Mounting Nut
  • 1x Weather Cap

APVCBB13 Bonnet Bracket:

  • 1x Bonnet Mount Bracket

ARJ45NS2 RJ45 Pass-Through Adapter:

  • 1x RJ45 Pass-Through Adapter

Technical specs

AP477H UHF CB Radio

Specification Detail
Transmission Power 5W
Frequency 476.425MHz to 477.4125MHz
Channels 80
CTCSS/DCS Codes Yes
Duplex Mode Yes
Channel Scan Yes
Squelch Control Yes
Busy Channel Lockout Yes
Call Tone Alter Yes
Roger Beep Yes
Button Beep Yes
Volume Control Yes
Backlit Display 7 multicolour (on remote microphone)
Radio Type Hideaway ultra-compact chassis
Microphone Remote speaker microphone
Voltage 12V and 24V DC
External Speaker Port Yes
Mute Out Yes
Antenna Connection PL259
Radio Warranty 5 years

CBSTHD1 UHF Antenna

Specification Detail
Frequency 477MHz
Gain 3.0dBi
Ground Independent Yes
Elevated Feed Yes
Total Length 700mm
Mast Length 570mm
Mast Width 40mm
Mast Type Fibreglass radome
Spring Type Stainless steel
Antenna Mounting Thread 16mm
Mast Mounting Thread 30mm
Cable Type RG58 with female FME
Cable Length 4.5m
Colour Black
Antenna Warranty 1 year

APVCBB13 Bonnet Bracket

Specification Detail
Mounting Position Passenger side bonnet hinge
Metal Type 4mm press-bent steel
Finish Matte black powder coat
Antenna Mounting Hole 18mm
Cable Slot Size 5mm
Vehicle Compatibility Nissan Patrol Y62 2019-on
Bracket Warranty 1 year

ARJ45NS2 RJ45 Pass-Through Adapter

Specification Detail
Connection Type RJ45 pass-through
Mounting Type Clip-in
Face Dimensions 21mm (W) x 36mm (H)
Body Dimensions 22mm (W) x 41mm (H)
Replaces Factory switch blanking plate
Adapter Warranty 1 year

Compatible with

Nissan Patrol Y62 2019-on.

Frequently asked questions

What is the difference between the APNICBH2 and the APNICBE2? The APNICBE2 uses the AP477E standard radio where all controls are on the radio body itself. The APNICBH2 uses the AP477H hideaway radio the radio body mounts out of sight under the dash or seat, and all functions are controlled from a remote speaker microphone with a 7-colour backlit LCD display. The APNICBH2 also includes the ARJ45NS2 RJ45 pass-through adapter.

What does the ARJ45NS2 adapter do? The ARJ45NS2 clips into a factory switch blanking plate opening in the Y62's dashboard, providing a clean OEM-style pass-through point for the RJ45 microphone cable from the hideaway radio to the remote microphone. This eliminates loose cables across the cabin for a tidy installation.

Where does the AP477H hideaway radio mount? The AP477H radio body is designed to be mounted out of sight under the dashboard or seat. All radio controls and the display are on the remote speaker microphone, which mounts in a convenient position within reach of the driver.

Does the APVCBB13 bracket require drilling? No. The APVCBB13 uses existing mounting points on the passenger side bonnet hinge of the Y62 Patrol with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.

What warranty does the APNICBH2 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB13 bracket, and ARJ45NS2 adapter each carry a 1-year warranty.
