Aerpro APNICBE1 Compact 5W UHF CB Kit Suit Nissan Navara 2015 - 2020
Click to open expanded view
AERPRO logo

Aerpro APNICBE1 Compact 5W UHF CB Kit Suit Nissan Navara 2015 - 2020

SKU: APNICBE1
Price
$499
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

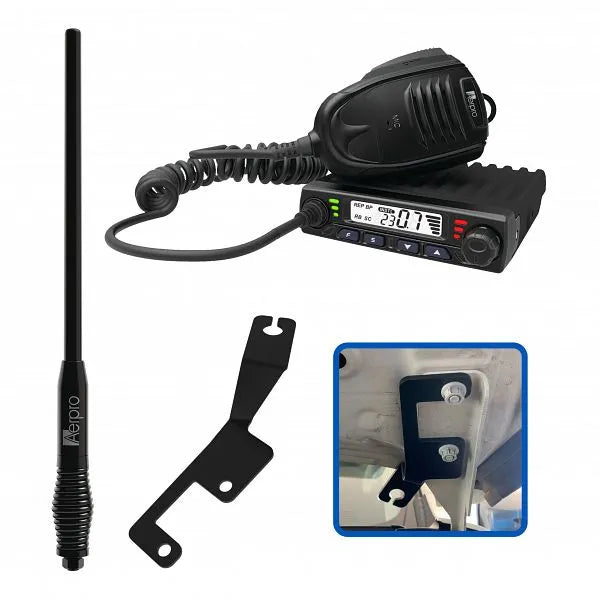

Aerpro APNICBE1 Complete 5W UHF CB Kit for Nissan Navara NP300 D23 2015-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB12 Bonnet Mount Bracket

The Aerpro APNICBE1 is a complete UHF CB radio kit designed specifically for the Nissan Navara NP300 (D23, 2015-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB12 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the Navara NP300 is in the box. 5-year warranty on the radio, 1-year warranty on accessories.

Product overview

The APNICBE1 is the compact (non-hideaway) counterpart to the APNICBH1 hideaway kit for the Nissan Navara NP300 D23 (2015-on). Where the APNICBH1 uses the AP477H hideaway radio with a remote speaker microphone mounted out of sight, the APNICBE1 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin.

The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. Compatible with 12V and 24V systems.

The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB12 mounts on the passenger side bonnet hinge of the Navara NP300 using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.

Features and benefits

Complete compact UHF CB kit for Nissan Navara NP300 D23 2015-on: Radio, antenna, and bonnet bracket all included.

AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.

5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.

CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.

4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.

APVCBB12 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Navara NP300.

Does not obstruct bonnet or window wipers.

5-year warranty on the radio, 1-year warranty on accessories.

What's in the box

AP477E UHF CB Radio:

  • 1x UHF CB Radio
  • 1x Microphone (attached to radio)
  • 1x Microphone Mounting Clip
  • 1x Radio Mounting Bracket

CBSTHD1 UHF Antenna:

  • 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
  • 1x 4.5m RG58 Cable with Female FME Connector
  • 1x FME to PL259 Adaptor
  • 1x Mounting Nut
  • 1x Weather Cap

APVCBB12 Bonnet Bracket:

  • 1x Bonnet Mount Bracket

Technical specs

AP477E UHF CB Radio

Specification Detail
Transmission Power 5W
Frequency 476.425MHz to 477.4125MHz
Channels 80
CTCSS/DCS Codes Yes
Duplex Mode Yes
Channel Scan Yes
Squelch Control Yes
Busy Channel Lockout Yes
Call Tone Alter Yes
Roger Beep Yes
Button Beep Yes
Volume Control Yes
Backlit Display White
Radio Type Ultra-compact chassis
Microphone Fixed cord
Voltage 12V and 24V DC
External Speaker Port Yes
Mute Out Yes
Antenna Connection PL259
Radio Warranty 5 years

CBSTHD1 UHF Antenna

Specification Detail
Frequency 477MHz
Gain 3.0dBi
Ground Independent Yes
Elevated Feed Yes
Total Length 700mm
Mast Length 570mm
Mast Width 40mm
Mast Type Fibreglass radome
Spring Type Stainless steel
Antenna Mounting Thread 16mm
Mast Mounting Thread 30mm
Cable Type RG58 with female FME
Cable Length 4.5m
Colour Black
Antenna Warranty 1 year

APVCBB12 Bonnet Bracket

Specification Detail
Mounting Position Passenger side bonnet hinge
Metal Type 4mm press-bent steel
Finish Matte black powder coat
Antenna Mounting Hole 18mm
Cable Slot Size 5mm
Bracket Warranty 1 year

Compatible with

Make Model Variant Years
Nissan Navara NP300 D23 2015 to 2020
Nissan Navara NP300 D23 2019 to 2025

Frequently asked questions

What is the difference between the APNICBE1 and the APNICBH1? The APNICBH1 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APNICBE1 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB12 bonnet bracket for the Nissan Navara NP300 D23 2015-on.

What is included in the APNICBE1 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB12 bonnet bracket.

Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems.

Does the APVCBB12 bracket require drilling into the Navara? No. The APVCBB12 uses existing mounting points on the passenger side bonnet hinge of the Nissan Navara NP300 (2015-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.

What warranty does the APNICBE1 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB12 bracket each carry a 1-year warranty.
