Product features

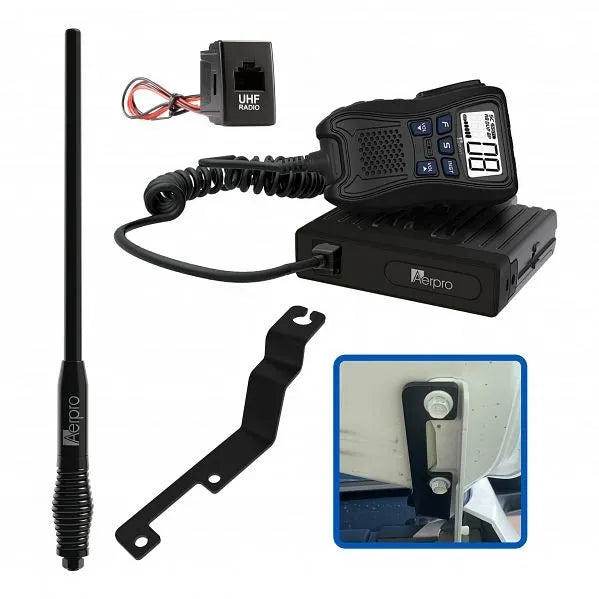

Aerpro APMZCBH1 Complete Hideaway 5W UHF CB Kit for Mazda BT-50 2020-On with AP477H Radio CBSTHD1 3dBi Antenna APVCBB8 Bonnet Bracket and ARJ45IZ1 RJ45 Pass-Through Adapter

The Aerpro APMZCBH1 is a complete hideaway UHF CB radio kit designed specifically for the Mazda BT-50 (2020-on). Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB8 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45IZ1 RJ45 pass-through adapter with blue illumination. Everything needed to install a concealed hideaway UHF radio in the Mazda BT-50 (2020-on) is in the box. 5-year warranty on the radio, 1-year warranty on accessories.

Product overview

The APMZCBH1 is a hideaway UHF CB kit purpose-matched to the Mazda BT-50 (2020-on). The AP477H radio body mounts out of sight under the dash or seat while all controls and functions are operated from a remote speaker microphone with 7-colour backlit LCD display.

The ARJ45IZ1 adapter clips into a factory switch blanking plate opening in the BT-50's dashboard (22.5mm wide by 33.5mm high), providing a clean, OEM-style blue-illuminated RJ45 pass-through for the microphone cable. Illumination requires a 12V positive (red wire) and earth (black wire) connection.

The AP477H provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The 2-metre remote microphone extension cable is included. Compatible with 12V and 24V systems.

The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB8 mounts on the passenger side bonnet hinge of the BT-50 using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.

Features and benefits

Complete hideaway kit for Mazda BT-50 2020-on: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.

AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls operated from the 7-colour backlit LCD remote microphone.

ARJ45IZ1 OEM-style clip-in RJ45 pass-through adapter with blue illumination: Replaces a factory switch blanking plate (22.5mm W x 33.5mm H) in the BT-50 dashboard. Requires 12V positive and earth wiring for illumination.

5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.

2-metre remote microphone extension cable included.

CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.

4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.

APVCBB8 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the BT-50.

Does not obstruct bonnet or window wipers.

5-year warranty on the radio, 1-year warranty on accessories.

What's in the box

AP477H UHF CB Radio:

  • 1x UHF CB Hideaway Radio
  • 1x Remote Speaker Microphone
  • 1x Microphone Mounting Clip
  • 1x Radio Mounting Bracket
  • 1x Microphone Extension Cable (2 metres)

CBSTHD1 UHF Antenna:

  • 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
  • 1x 4.5m RG58 Cable with Female FME Connector
  • 1x FME to PL259 Adaptor
  • 1x Mounting Nut
  • 1x Weather Cap

APVCBB8 Bonnet Bracket:

  • 1x Bonnet Mount Bracket

ARJ45IZ1 RJ45 Pass-Through Adapter:

  • 1x RJ45 Pass-Through Adapter

Technical specs

AP477H UHF CB Radio

Specification Detail
Transmission Power 5W
Frequency 476.425MHz to 477.4125MHz
Channels 80
CTCSS/DCS Codes Yes
Duplex Mode Yes
Channel Scan Yes
Squelch Control Yes
Busy Channel Lockout Yes
Call Tone Alter Yes
Roger Beep Yes
Button Beep Yes
Volume Control Yes
Backlit Display 7 multicolour (on remote microphone)
Radio Type Hideaway ultra-compact chassis
Microphone Remote speaker microphone
Voltage 12V and 24V DC
External Speaker Port Yes
Mute Out Yes
Antenna Connection PL259
Radio Warranty 5 years

CBSTHD1 UHF Antenna

Specification Detail
Frequency 477MHz
Gain 3.0dBi
Ground Independent Yes
Elevated Feed Yes
Total Length 700mm
Mast Length 570mm
Mast Width 40mm
Mast Type Fibreglass radome
Spring Type Stainless steel
Antenna Mounting Thread 16mm
Mast Mounting Thread 30mm
Cable Type RG58 with female FME
Cable Length 4.5m
Colour Black
Antenna Warranty 1 year

APVCBB8 Bonnet Bracket

Specification Detail
Mounting Position Passenger side bonnet hinge
Metal Type 4mm press-bent steel
Finish Matte black powder coat
Antenna Mounting Hole 18mm
Cable Slot Size 5mm
Bracket Warranty 1 year

ARJ45IZ1 RJ45 Pass-Through Adapter

Specification Detail
Connection Type RJ45 pass-through
Mounting Type Clip-in
Face/Body Dimensions 22.5mm (W) x 33.5mm (H)
Illumination Colour Blue
Wiring 12V positive (red), earth (black)
Replaces Factory switch blanking plate
Adapter Warranty 1 year

Compatible with

Make Model Years
Mazda BT-50 2020-on

Frequently asked questions

What is included in the APMZCBH1 kit? The kit includes the Aerpro AP477H hideaway UHF CB radio with remote speaker microphone, mounting bracket, microphone mounting clip, and 2-metre microphone extension cable; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; the Aerpro APVCBB8 bonnet bracket; and the Aerpro ARJ45IZ1 RJ45 pass-through adapter.

What does the ARJ45IZ1 adapter do and does it require wiring? The ARJ45IZ1 clips into a factory switch blanking plate opening in the BT-50 dashboard (22.5mm wide by 33.5mm high) to provide a clean OEM-style pass-through for the RJ45 microphone cable. It features blue illumination which requires a 12V positive (red wire) and earth (black wire) connection. If illumination is not required, the wiring connections can be omitted.

Where does the AP477H hideaway radio mount? The AP477H radio body mounts out of sight under the dashboard or seat. All controls are on the remote speaker microphone which mounts within reach of the driver.

Does the APVCBB8 bracket require drilling into the BT-50? No. The APVCBB8 uses existing mounting points on the passenger side bonnet hinge of the Mazda BT-50 (2020-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.

What warranty does the APMZCBH1 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB8 bracket, and ARJ45IZ1 adapter each carry a 1-year warranty.
