Aerpro APJPCBH1 Hideaway 5W UHF CB Kit Jeep Grand Cherokee WK
Click to open expanded view
AERPRO logo

Aerpro APJPCBH1 Hideaway 5W UHF CB Kit Jeep Grand Cherokee WK

SKU: APJPCBH1
Price
$599.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

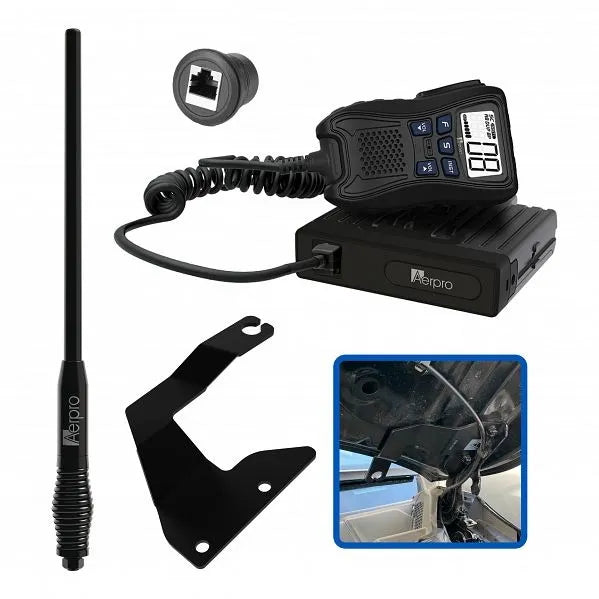

Aerpro APJPCBH1 Complete Hideaway 5W UHF CB Kit for Jeep Grand Cherokee WK 2011 to 2021 with AP477H Radio CBSTHD1 3dBi Antenna APVCBB2 Bonnet Bracket and ARJ45UNI RJ45 Pass-Through Adapter

The Aerpro APJPCBH1 is a complete hideaway UHF CB radio kit designed specifically for the Jeep Grand Cherokee WK (2011 to 2021). Includes the Aerpro AP477H 5W ultra-compact hideaway UHF CB radio with remote speaker microphone, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, the Aerpro APVCBB2 vehicle-specific bonnet mount bracket, and the Aerpro ARJ45UNI RJ45 pass-through adapter. Everything needed to install a concealed hideaway UHF radio in the Grand Cherokee WK is in the box. 5-year warranty on the radio, 1-year warranty on accessories.

Product overview

The APJPCBH1 is a hideaway UHF CB kit purpose-matched to the Jeep Grand Cherokee WK (2011 to 2021). The AP477H radio body mounts out of sight under the dash or seat while all controls and functions are operated from a remote speaker microphone with 7-colour backlit LCD display. The ARJ45UNI adapter screws into the vehicle's factory 12V cigarette lighter socket opening, replacing it with a clean RJ45 pass-through socket for the microphone cable.

The AP477H provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, stereo mute output, and external speaker port. The 2-metre remote microphone extension cable is included. Compatible with 12V and 24V systems.

The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB2 mounts on the passenger side bonnet hinge of the Grand Cherokee WK using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.

Features and benefits

Complete hideaway kit for Jeep Grand Cherokee WK 2011 to 2021: Radio, remote microphone, antenna, bonnet bracket, and RJ45 pass-through adapter all included.

AP477H hideaway radio with remote speaker microphone: Radio body mounts out of sight; all controls operated from the 7-colour backlit LCD remote microphone.

ARJ45UNI universal cigarette lighter replacement RJ45 adapter: Screw-in unit replaces the factory 12V cigarette lighter socket with an RJ45 pass-through for the microphone cable.

5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.

2-metre remote microphone extension cable included.

CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.

4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.

APVCBB2 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the Grand Cherokee WK.

Does not obstruct bonnet or window wipers.

5-year warranty on the radio, 1-year warranty on accessories.

What's in the box

AP477H UHF CB Radio:

  • 1x UHF CB Hideaway Radio
  • 1x Remote Speaker Microphone
  • 1x Microphone Mounting Clip
  • 1x Radio Mounting Bracket
  • 1x Microphone Extension Cable (2 metres)

CBSTHD1 UHF Antenna:

  • 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
  • 1x 4.5m RG58 Cable with Female FME Connector
  • 1x FME to PL259 Adaptor
  • 1x Mounting Nut
  • 1x Weather Cap

APVCBB2 Bonnet Bracket:

  • 1x Bonnet Mount Bracket

ARJ45UNI RJ45 Pass-Through Adapter:

  • 1x RJ45 Pass-Through Adapter

Technical specs

AP477H UHF CB Radio

Specification Detail
Transmission Power 5W
Frequency 476.425MHz to 477.4125MHz
Channels 80
CTCSS/DCS Codes Yes
Duplex Mode Yes
Channel Scan Yes
Squelch Control Yes
Busy Channel Lockout Yes
Call Tone Alter Yes
Roger Beep Yes
Button Beep Yes
Volume Control Yes
Backlit Display 7 multicolour (on remote microphone)
Radio Type Hideaway ultra-compact chassis
Microphone Remote speaker microphone
Voltage 12V and 24V DC
External Speaker Port Yes
Mute Out Yes
Antenna Connection PL259
Radio Warranty 5 years

CBSTHD1 UHF Antenna

Specification Detail
Frequency 477MHz
Gain 3.0dBi
Ground Independent Yes
Elevated Feed Yes
Total Length 700mm
Mast Length 570mm
Mast Width 40mm
Mast Type Fibreglass radome
Spring Type Stainless steel
Antenna Mounting Thread 16mm
Mast Mounting Thread 30mm
Cable Type RG58 with female FME
Cable Length 4.5m
Colour Black
Antenna Warranty 1 year

APVCBB2 Bonnet Bracket

Specification Detail
Mounting Position Passenger side bonnet hinge
Metal Type 4mm press-bent steel
Finish Matte black powder coat
Antenna Mounting Hole 18mm
Cable Slot Size 5mm
Bracket Warranty 1 year

ARJ45UNI RJ45 Pass-Through Adapter

Specification Detail
Connection Type RJ45 pass-through
Mounting Type Screw-in
Face Diameter 30mm
Body Diameter 24.75mm
Depth 27.8mm
Replaces Factory 12V cigarette lighter socket
Adapter Warranty 1 year

Compatible with

Make Model Variant Years
Jeep Grand Cherokee WK 2011 to 2013
Jeep Grand Cherokee WK 2014 to 2021

Frequently asked questions

What is included in the APJPCBH1 kit? The kit includes the Aerpro AP477H hideaway UHF CB radio with remote speaker microphone, mounting bracket, microphone mounting clip, and 2-metre microphone extension cable; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; the Aerpro APVCBB2 bonnet bracket; and the Aerpro ARJ45UNI RJ45 pass-through adapter.

How does the ARJ45UNI adapter work in the Grand Cherokee WK? The ARJ45UNI screws into the factory 12V cigarette lighter socket opening in the Grand Cherokee WK, replacing the lighter socket with an RJ45 pass-through for the hideaway radio's microphone cable. This removes the cigarette lighter from that position. If the lighter socket is regularly used for other accessories, consider an alternative microphone cable routing location.

Where does the AP477H hideaway radio mount? The AP477H radio body mounts out of sight under the dashboard or seat. All controls are on the remote speaker microphone which mounts within reach of the driver.

Does the APVCBB2 bracket require drilling into the Grand Cherokee WK? No. The APVCBB2 uses existing mounting points on the passenger side bonnet hinge of the Jeep Grand Cherokee WK (2011 to 2021) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.

What warranty does the APJPCBH1 kit carry? The AP477H radio carries a 5-year warranty. The CBSTHD1 antenna, APVCBB2 bracket, and ARJ45UNI adapter each carry a 1-year warranty.
