Product features

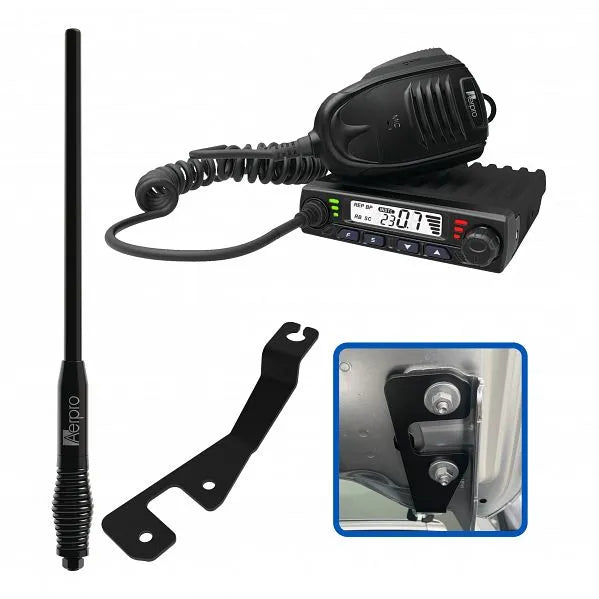

Aerpro APFOCBE2 Complete 5W UHF CB Kit for Ford Ranger RA 2022-On with AP477E Compact Radio CBSTHD1 3dBi Antenna and APVCBB10 Bonnet Mount Bracket

The Aerpro APFOCBE2 is a complete UHF CB radio kit designed specifically for the Ford Ranger RA (2022-on). Includes the Aerpro AP477E 5W ultra-compact UHF CB radio, the Aerpro CBSTHD1 3dBi heavy duty fibreglass radome antenna, and the Aerpro APVCBB10 vehicle-specific bonnet mount bracket. Everything needed to install a UHF radio and antenna in the RA Ranger is in the box. 5-year warranty on the radio, 1-year warranty on accessories.

Product overview

The APFOCBE2 is the compact (non-hideaway) counterpart to the APFOCBH2 hideaway kit for the Ford Ranger RA. Where the APFOCBH2 uses the AP477H hideaway radio with a remote speaker microphone, the APFOCBE2 uses the AP477E standard radio where all controls are on the radio body itself. The AP477E mounts in a visible, accessible position within the cabin rather than hidden under the dash or seat.

The AP477E provides 5W output across all 80 UHF CB channels with CTCSS/DCS codes, duplex mode, channel scan, auto squelch, busy channel lockout, a white backlit display, stereo mute output, and external speaker port. The fixed-cord microphone is attached directly to the radio body. Compatible with 12V and 24V systems.

The CBSTHD1 is a 700mm ground-independent elevated feed fibreglass radome antenna with stainless steel spring base, 4.5m RG58 cable, and FME to PL259 adaptor for solder-free installation. The APVCBB10 mounts on the passenger side bonnet hinge of the RA Ranger using existing mounting points with no drilling required, and does not obstruct bonnet operation or window wipers.

Features and benefits

Complete compact UHF CB kit for Ford Ranger RA 2022-on: Radio, antenna, and bonnet bracket all included.

AP477E ultra-compact radio with fixed-cord microphone: All controls on the radio body. White backlit display for low-light operation.

5W, 80 channels, 12V/24V compatible: CTCSS/DCS, duplex, channel scan, squelch, busy channel lockout, and stereo mute output.

CBSTHD1 3dBi ground-independent elevated feed antenna: 700mm fibreglass radome with stainless steel spring base, suited to bonnet bracket mounting.

4.5m RG58 cable with FME to PL259 adaptor: Solder-free antenna connection.

APVCBB10 uses existing bonnet hinge mounting points: No drilling or permanent modifications to the RA Ranger.

Does not obstruct bonnet or window wipers.

5-year warranty on the radio, 1-year warranty on accessories.

What's in the box

AP477E UHF CB Radio:

  • 1x UHF CB Radio
  • 1x Microphone (attached to radio)
  • 1x Microphone Mounting Clip
  • 1x Radio Mounting Bracket

CBSTHD1 UHF Antenna:

  • 1x 700mm Fibreglass Radome Antenna with Stainless Steel Spring Base
  • 1x 4.5m RG58 Cable with Female FME Connector
  • 1x FME to PL259 Adaptor
  • 1x Mounting Nut
  • 1x Weather Cap

APVCBB10 Bonnet Bracket:

  • 1x Bonnet Mount Bracket

Technical specs

AP477E UHF CB Radio

Specification Detail
Transmission Power 5W
Frequency 476.425MHz to 477.4125MHz
Channels 80
CTCSS/DCS Codes Yes
Duplex Mode Yes
Channel Scan Yes
Squelch Control Yes
Busy Channel Lockout Yes
Call Tone Alter Yes
Roger Beep Yes
Button Beep Yes
Volume Control Yes
Backlit Display White
Radio Type Ultra-compact chassis
Microphone Fixed cord
Voltage 12V and 24V DC
External Speaker Port Yes
Mute Out Yes
Antenna Connection PL259
Radio Warranty 5 years

CBSTHD1 UHF Antenna

Specification Detail
Frequency 477MHz
Gain 3.0dBi
Ground Independent Yes
Elevated Feed Yes
Total Length 700mm
Mast Length 570mm
Mast Width 40mm
Mast Type Fibreglass radome
Spring Type Stainless steel
Antenna Mounting Thread 16mm
Mast Mounting Thread 30mm
Cable Type RG58 with female FME
Cable Length 4.5m
Colour Black
Antenna Warranty 1 year

APVCBB10 Bonnet Bracket

Specification Detail
Mounting Position Passenger side bonnet hinge
Metal Type 4mm press-bent steel
Finish Matte black powder coat
Antenna Mounting Hole 18mm
Cable Slot Size 5mm
Bracket Warranty 1 year

Compatible with

Make Model Variant Years
Ford Ranger RA 2022-on
Ford Everest UB 2022-on

Frequently asked questions

What is the difference between the APFOCBE2 and the APFOCBH2? The APFOCBH2 uses the AP477H hideaway radio, where the radio body mounts out of sight and all controls are on a separate remote speaker microphone. The APFOCBE2 uses the AP477E standard compact radio with a fixed-cord microphone, mounted in a visible, accessible position in the cabin. Both kits use the same CBSTHD1 antenna and APVCBB10 bonnet bracket for the Ford Ranger RA 2022-on.

What is included in the APFOCBE2 kit? The kit includes the Aerpro AP477E compact UHF CB radio with fixed-cord microphone, mounting clip, and radio mounting bracket; the Aerpro CBSTHD1 antenna with 4.5m RG58 cable, FME to PL259 adaptor, and mounting nut; and the Aerpro APVCBB10 bonnet bracket.

Does the AP477E radio work with 24V vehicles? Yes. The AP477E operates on both 12V and 24V DC systems, making it suited to passenger vehicles, 4WDs, utes, trucks, and vans.

Does the APVCBB10 bracket require drilling into the RA Ranger? No. The APVCBB10 uses existing mounting points on the passenger side bonnet hinge of the Ford Ranger RA (2022-on) with no drilling or permanent modifications required. It does not obstruct bonnet operation or window wipers.

What warranty does the APFOCBE2 kit carry? The AP477E radio carries a 5-year warranty. The CBSTHD1 antenna and APVCBB10 bracket each carry a 1-year warranty.
