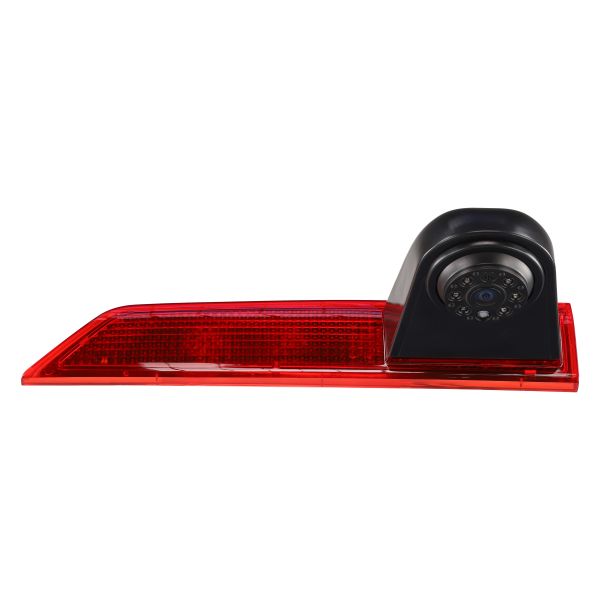

A clean, OEM-style reverse camera solution for the Ford Transit Custom, the APC163 replaces the factory brake light housing to deliver a 100 to 110° rear view with AHD 720P output and IP68 waterproofing without drilling a single hole.

Product Overview

The APC163 is Aerpro's vehicle-specific brake light reverse camera, engineered exclusively for Ford Transit Custom models from 2013 to 2017. It replaces the factory brake light housing directly, providing a seamless OEM-style installation that requires no additional holes to be drilled into the vehicle. The 100 to 110° diagonal viewing angle reduces rear blind spots during reversing and parking manoeuvres, while selectable parking guidelines (switchable via loop wire) provide visual reference in tight spaces and can be enabled or disabled to suit the driver's preference.

Video output is selectable between AHD 720P and CVBS via the loop wire, providing broad compatibility with aftermarket head units including those with AHD camera inputs such as the Aerpro AM705, as well as Aerpro Advanced Safety Vision monitors and standard RCA composite displays. The 4-pin heavy duty camera cable runs 0.5 metres from the camera to the connector, with a 10-metre extension cable included alongside a 4-pin to RCA adapter for integration with most aftermarket displays. Built from ABS housing with an IP68 waterproof rating and an operating temperature range of -30°C to +80°C, the APC163 performs reliably in all weather and climate conditions. Please note that the APC163 is not compatible with factory head units and cannot be adapted to connect to the original factory radio.

Features & Benefits

Ford Transit Custom Specific Fitment: Engineered exclusively for the Ford Transit Custom (2013 to 2017), the APC163 is a direct OEM replacement for the factory brake light housing, providing a factory-finish installation that integrates seamlessly with the vehicle's original exterior styling.

Brake Light Housing Replacement, No Drilling Required: The camera installs within the factory brake light position without the need to drill additional holes into the vehicle body, preserving the vehicle's structural integrity and maintaining a clean appearance.

100 to 110° Wide Diagonal Viewing Angle: The wide viewing angle reduces the blind spot directly behind the vehicle during reversing and parking, improving situational awareness and driver confidence when manoeuvring in confined spaces.

Selectable Parking Guidelines: Visual parking guidelines are switchable via loop wire during installation. The white loop wire controls guideline display and defaults to on. Guidelines can be disabled if the connected head unit provides its own overlay or if the driver prefers an unobstructed view.

AHD 720P or CVBS Video Output: Output format is selectable via the green loop wire, defaulting to AHD 720P for compatibility with AHD-capable head units and monitors. Switching to CVBS provides compatibility with standard composite RCA inputs on a wider range of aftermarket displays.

IP68 Waterproof Rating: The IP68 rating confirms full protection against dust ingress and continuous water immersion, providing reliable performance in rain, wash-down, and demanding commercial vehicle environments.

Wide Operating Temperature Range: Rated from -30°C to +80°C, the APC163 operates dependably in both extreme cold and high-heat environments, making it suitable for use across all Australian climates and seasons.

Robust ABS Housing: The camera housing is constructed from ABS plastic, providing a lightweight yet durable enclosure that resists the impacts and vibration of daily commercial vehicle use.

Includes 10-Metre Heavy Duty Cable and 4-Pin to RCA Adapter: The 10-metre extension cable provides ample reach from the rear of the vehicle to the head unit location in most van and commercial vehicle configurations, and the included 4-pin to RCA adapter allows connection to standard RCA camera inputs without additional accessories.

Technical Specs

What's in the Box

• 1x APC163 Brake Light Reverse Camera
• 10-metre Video Cable (4-pin heavy duty)
• 4-pin to RCA Adapter Cable

Goes Well With

The APC163 connects directly to any aftermarket head unit with an AHD 720P or standard RCA composite reverse camera input. It is compatible with the Aerpro AM705 head unit, which features a dedicated 720P AHD reverse camera input, providing a matched Aerpro system for the Ford Transit Custom. Note that the APC163 is not compatible with the factory Ford Transit Custom head unit and cannot be adapted to connect to the original factory radio. An aftermarket head unit is required for this camera to function. A trigger wire is not included and reverse trigger activation is managed through the head unit or installation harness.

Frequently Asked Questions

Is the APC163 compatible with Ford Transit Custom models outside the 2013 to 2017 range?

No. The APC163 is specifically engineered for the Ford Transit Custom from 2013 to 2017. Transit Custom models outside this year range use a different brake light housing profile and are not compatible with this camera. Confirm your vehicle's model year before purchase.

Is the APC163 compatible with the factory Ford Transit Custom head unit?

No. The APC163 is not compatible with factory head units and cannot be adapted to connect to the original factory radio in the Ford Transit Custom. An aftermarket head unit with a reverse camera input (AHD 720P or RCA composite) is required for this camera to operate.

How do I select between AHD 720P and CVBS output?

Video output format is selected via the green loop wire during installation. The default configuration with the loop wire connected is AHD 720P. Cutting or leaving the green loop wire open switches the output to CVBS composite for compatibility with standard RCA camera inputs. Select the output format that matches the camera input type on the connected head unit or monitor before completing the installation.

Can the parking guidelines be turned off?

Yes. The white loop wire controls the parking guidelines. The default configuration with the white loop wire connected displays fixed guidelines on screen. Cutting or leaving the white loop wire open disables the guidelines. If the connected head unit generates its own dynamic parking guideline overlay, disabling the camera's fixed guidelines prevents a double overlay from appearing on screen.

Is a trigger wire included, and is one needed?

A trigger wire is not included with the APC163. Reverse camera activation is typically managed through the head unit's reverse trigger input, which is connected to the vehicle's reverse light circuit via the installation harness. Confirm the reverse trigger wiring arrangement with the head unit's installation instructions for the specific vehicle.

FAQ

What is the Aerpro APC163?

A brake light reverse camera for the Ford Transit Custom 2013 to 2017. It replaces the factory brake light housing, so there are no extra holes to drill.

What screen do I need?

An aftermarket head unit or monitor with an AHD 720P or standard RCA composite camera input. The green loop wire switches the output between AHD and CVBS, and it comes set to AHD. It cannot be connected to the factory screen.

Can I turn the parking guidelines off?

Yes. They are switched with the white loop wire at install and come on by default.

What cables come with it?

It comes with a 10 metre heavy duty 4 pin extension cable and a 4 pin to RCA adaptor.

Will it fit my car?

It is made for the Ford Transit Custom 2013 to 2017. Send the F.A.E. team your model and year if you are unsure.
