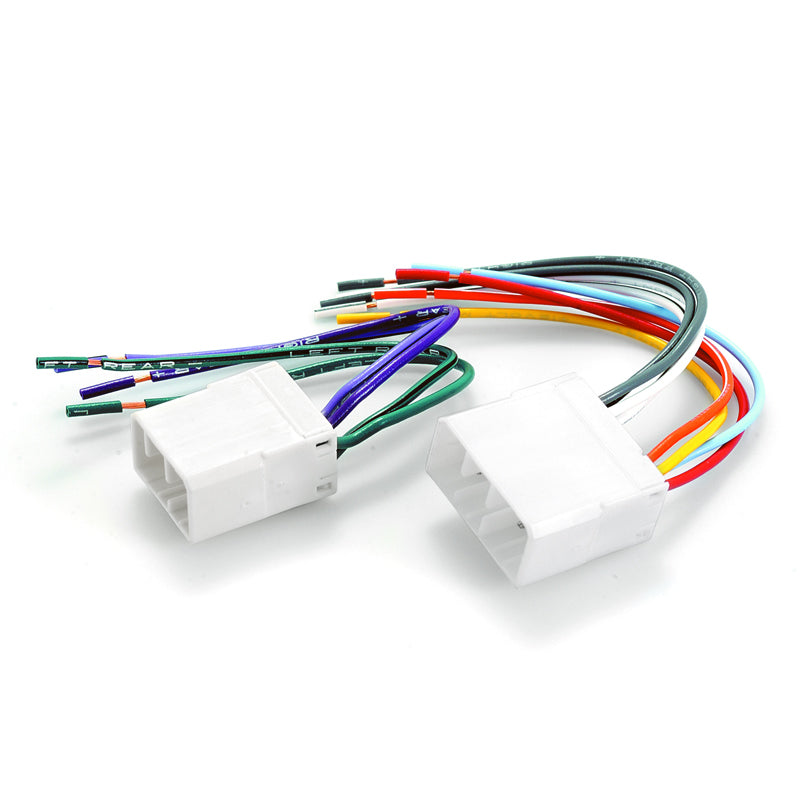

Aerpro AP7901F Primary Harness to Suit Ford/Mazda Vehicles

Designed to Plug into Your Vehicle's Factory Wiring and Give You Bare Ended Wires at the Other End

Bare wires allow you to "hard wire" your head unit directly in using the bare ended wiring harness that comes with your aftermarket stereo. The wires are colour coded for easy cable identification.

Features:

• Connects to vehicle's factory wiring, providing bare end wires
• No need to remove the factory stereo plug from the vehicle
• Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
• Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

• Plug Type:
  • 1 X 8 Pin
  • 1 X 4 Pin
• Installation Type: Bare Wire, Requires Soldering

Vehicles Known to Work with This Product:

• Ford Courier 1999 to 2006 PE, PG, PH
• Ford Falcon 1994 to 1998 EF, EL
• Ford Festiva 1994 to 2000 WB, WD, WF
• Mazda 121 (Autozam) 1990 to 1996
• Mazda 323 (Familia) 1989 to 1997
• Mazda 626 (Capella) 1992 to 1997
• Mazda 929 (Sentia) 1992 to 1997
• Mazda MPV 1996 to 1998
• Mazda MPV 1999 to 2006
• Mazda MX6 1992 to 1997
• Mazda RX7 1986 to 1992
• Mazda 121 (Demio) 1996 to 2000
• Mazda 323 (Familia) 1998 to 2001 BJ
• Mazda B Series 1999 to 2006 UN
• Ford Laser 1990 to 1999 KF, KH, KJ, KL, KM, KN

FAQ

What is the Aerpro AP7901F?

A plug to bare wire harness for Ford and Mazda models with a 8 pin and 4 pin factory head unit plug. It lets you fit an aftermarket head unit without cutting the factory plug.

How is it wired?

Match the wire colours to your new head unit loom, then solder and insulate each join. Solder and heat shrink are not included.

Will it fit my car?

The listing names the vehicles it is known to suit. If yours is not on the list, send the F.A.E. team your make, model and year and we will confirm before you order.
