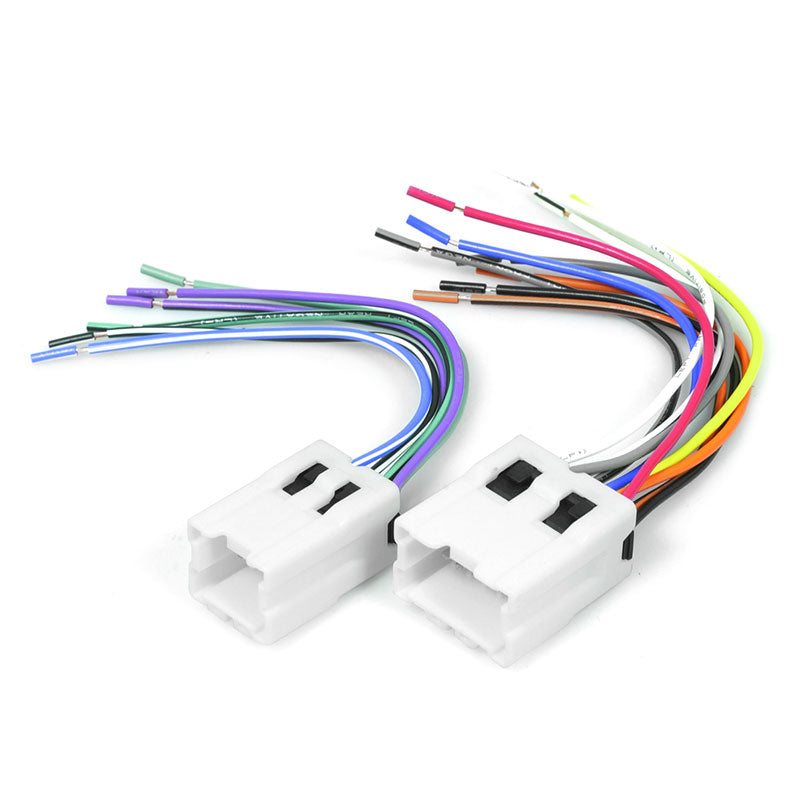

Aerpro AP7550 Primary Harness to Suit Nissan Late Model Vehicles

Designed to Plug into Your Vehicle's Factory Wiring and Give You Bare Ended Wires at the Other End

Bare wires allow you to "hard wire" your head unit directly in using the bare ended wiring harness that comes with your aftermarket stereo. The wires are colour coded for easy cable identification.

Features:

• Connects to vehicle's factory wiring, providing bare end wires
• No need to remove the factory stereo plug from the vehicle
• Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
• Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

• Plug Type:
  • 1 x 10 PIN
  • 1 x 6 PIN
• Installation Type: Bare Wire, Requires Soldering

Vehicles Known to Work with this Product:

• Nissan 350Z 2003 to 2008 (Z33)
• Nissan Maxima 1999 to 2003 (A33) (Cefiro)
• Nissan Murano 2005 to 2008 (Z50)
• Nissan Navara 1992 to 1997 D21
• Nissan Pathfinder (Terrano) 1996 to 2004 WX, WXII
• Nissan Patrol 1988 to 1999 GQ
• Nissan Patrol 1997 to 2009 GU
• Nissan Pulsar 1995 to 2000 N15
• Nissan Pulsar 2000 to 2005 N16
• Nissan Skyline 2005 to 2006 V35 350GT
• Nissan Maxima 2004 to 2008 (J31)
• Nissan Navara 1997 to 2006 D22
• Nissan Navara 2006 to 2015 D22
• Nissan Pathfinder 2005 to 2006 R51
• Nissan Patrol 2010 on GU7, Y61
• Nissan Skyline 2001 to 2004 V35 350GT

FAQ

What is the Aerpro AP7550?

A plug to bare wire harness for later Nissan models with a 10 pin and 6 pin factory head unit plug. It lets you fit an aftermarket head unit without cutting the factory plug.

How is it wired?

Match the wire colours to your new head unit loom, then solder and insulate each join. Solder and heat shrink are not included.

Will it fit my car?

The listing names the vehicles it is known to suit. If yours is not on the list, send the F.A.E. team your make, model and year and we will confirm before you order.
