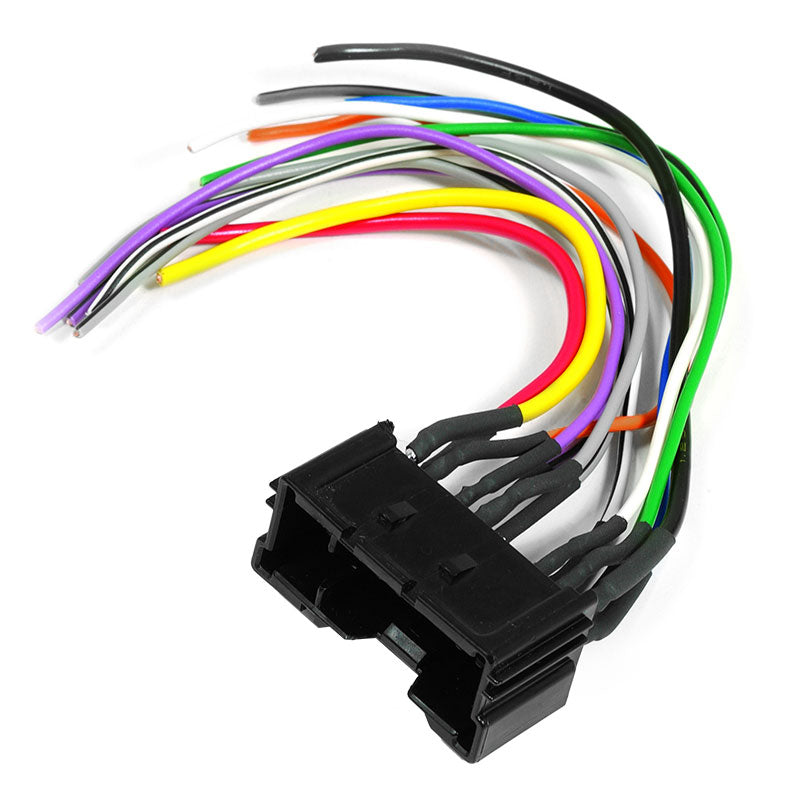

Aerpro AP7350 Primary Harness to Suit Hyundai/Kia Vehicles

Designed to Plug into Your Vehicle's Factory Wiring and Give You Bare Ended Wires at the Other End

Bare wires allow you to "hard wire" your head unit directly in using the bare ended wiring harness that comes with your aftermarket stereo. The wires are colour coded for easy cable identification.

Notes: Alternatively, Aerpro APP085 can be used which converts the vehicle plug to ISO connector system.

Features:

• Connects to vehicle's factory wiring, providing bare end wires
• No need to remove the factory stereo plug from the vehicle
• Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
• Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

• Plug Type:
  • 1 X 14 Pin
• Installation Type: Bare Wire, Requires Soldering

Vehicles Known to Work with this Product:

• Hyundai Elantra 2000 to 2005 XD
• Hyundai Getz 2002 to 2011
• Hyundai Santa Fe 2000 to 2005 SM
• Hyundai Sonata 1998 to 2005 EF
• Hyundai Tiburon 2002 to 2009
• Kia Carnival 2000 to 2005
• Kia Optima 2001 to 2005
• Kia Rio 2002 to 2005
• Kia Cerato 2004 to 2006 LD Sedan
• Kia Cerato 2005 to 2006 LD Hatchback

FAQ

What is the Aerpro AP7350?

A plug to bare wire harness for Hyundai and Kia models with a 14 pin factory head unit plug. It lets you fit an aftermarket head unit without cutting the factory plug.

How is it wired?

Match the wire colours to your new head unit loom, then solder and insulate each join. Solder and heat shrink are not included. The Aerpro APP085 is a plug in ISO option.

Will it fit my car?

The listing names the vehicles it is known to suit. If yours is not on the list, send the F.A.E. team your make, model and year and we will confirm before you order.
