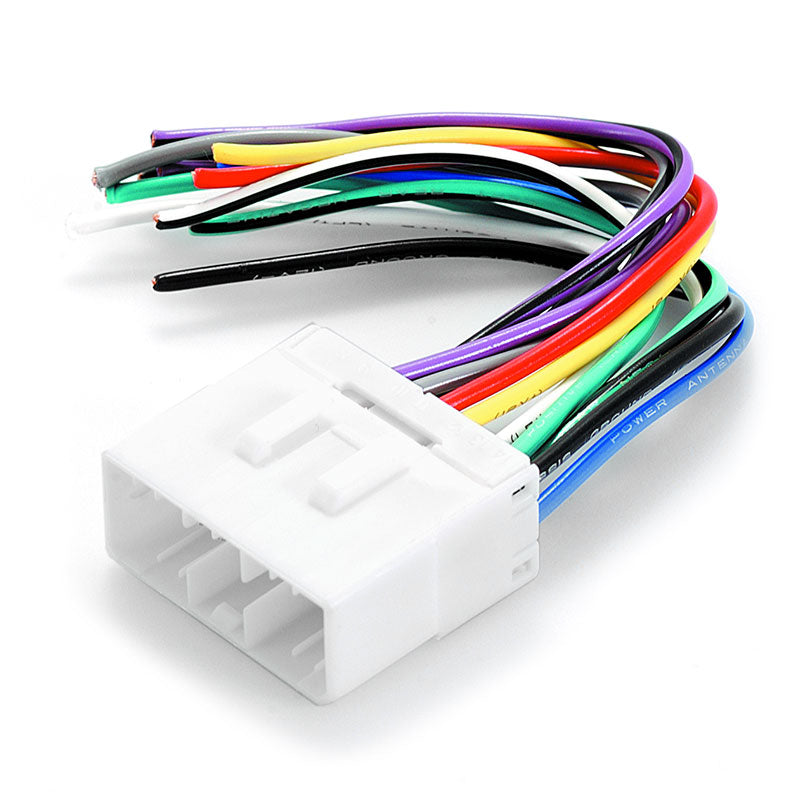

Aerpro AP7300 Primary Harness to Suit Hyundai Vehicles

Designed to Plug into your Vehicle's Factory Wiring and Give you Bare Ended Wires at the Other End

Bare wires allow you to "hard wire" your head unit directly in using the bare ended wiring harness that comes with your aftermarket stereo. The wires are colour coded for easy cable identification.

Features:

• Connects to vehicle's factory wiring, providing bare end wires
• No need to remove the factory stereo plug from the vehicle
• Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
• Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

• Plug Type:
  • 1 x 14 PIN
• Installation Type: Bare Wire, Requires Soldering

Vehicles Known to Work with this Product:

Hyundai Excel 1990 to 1994 X2

Hyundai Excel 1994 to 2000 X3

Hyundai Lantra 1992 to 1999

Hyundai Sonata 1989 to 1998

FAQ

What is the Aerpro AP7300?

A plug to bare wire harness for Hyundai models with a 14 pin factory head unit plug. It lets you fit an aftermarket head unit without cutting the factory plug.

How is it wired?

Match the wire colours to your new head unit loom, then solder and insulate each join. Solder and heat shrink are not included.

Will it fit my car?

The listing names the vehicles it is known to suit. If yours is not on the list, send the F.A.E. team your make, model and year and we will confirm before you order.
