Aerpro AP7011 Vehicle-Specific Plug to Bare-Wire Harness Suit Mitsubishi Various Models

Provides Colour-Coded Bare-End Wires to Match Standard Aftermarket Radio Wiring Looms!

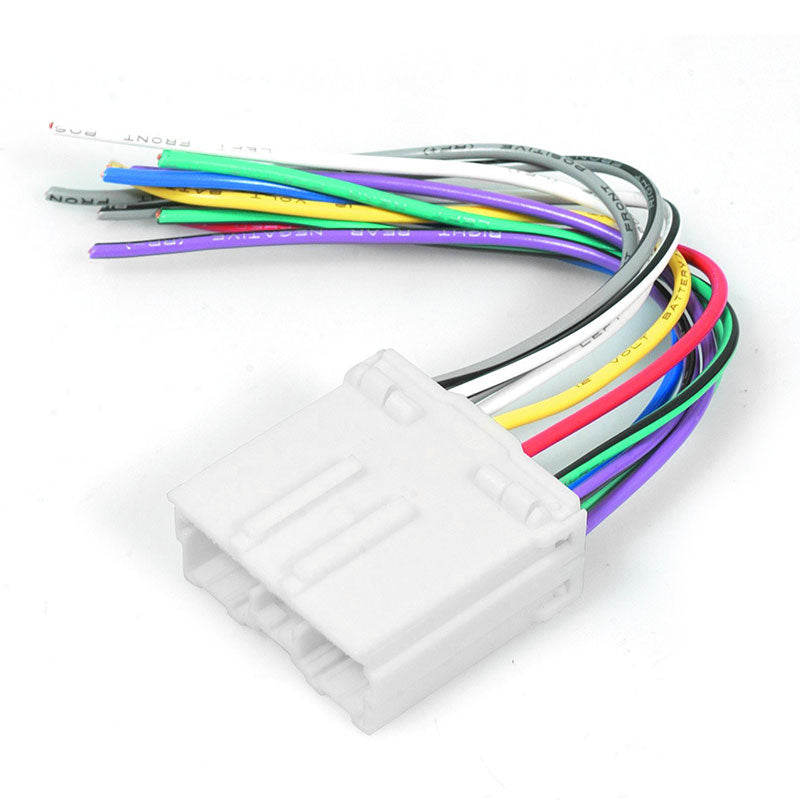

Vehicle-Specific Plug to Bare Wire Harness
This Aerpro Harness plugs into your Mitsubishi Colt, Magna, Mirage, Nimbus, Outlander, Pajero, Verada, 380, Lancer, and Express models with a single plug connector factory headunit wiring system. Allowing for the installation of an aftermarket headunit without the need to remove the factory plug from the vehicle, AP7011 provides colour-coded bare-end wires to match standard aftermarket radio wiring looms.

Simply match the wire colours between the AP7011 and your aftermarket headunit wiring loom (Supplied with the aftermarket headunit) and hard-wire them together. To hard-wire we recommend using a soldering iron and solder (Sold Separately) and ensuring they are insulated correctly once connected.

Please Note:

• Harnesses vary between vehicles, please use the Aerpro Vehicle Selector to identify the correct harness for your application.
• Alternatively, Aerpro APP0111 can be used which converts the vehicle plug to ISO connector system.

Features:

• Connects to vehicle's factory wiring, providing bare-end wires.
• No need to remove the factory stereo plug from the vehicle.
• Colour-coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation.
• Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (Solder) them together.
• Solder (Or Crimps) and heat shrink (Or Insulation Tape) required for installation, not included.

Specifications:

• Plug Type: 1 x 11 PIN
• Installation Type: Bare-Wire (Requires Soldering)
• Weight: 0.07kg

Vehicle Compatibility:

• Mitsubishi 380 (2004 to 2010)
• Mitsubishi Colt (2004, ON)
• Mitsubishi Express (1999 to 2013)
• Mitsubishi Lancer CE, CE2, CG (1996 to 2003)
• Mitsubishi Lancer CH, CY, CZ (2003 to 2007)
• Mitsubishi Magna TE-TW (1996 to 2005)
• Mitsubishi Mirage CE (1996 to 2003)
• Mitsubishi Nimbus UF, UG (1992 to 2003)
• Mitsubishi Outlander ZE, ZF (2003 to 2006)
• Mitsubishi Pajero NM, NP (2000 to 2006)
• Mitsubishi Verada (2000 to 2005)

FAQ

What is the Aerpro AP7011?

A plug to bare wire harness for Mitsubishi models with a single 11 pin factory head unit plug. It lets you fit an aftermarket head unit without cutting the factory plug.

How is it wired?

Match the wire colours to your new head unit loom, then solder and insulate each join. Solder and heat shrink are not included. The Aerpro APP0111 is a plug in ISO option.

Will it fit my car?

The listing names the vehicles it is known to suit. If yours is not on the list, send the F.A.E. team your make, model and year and we will confirm before you order.
