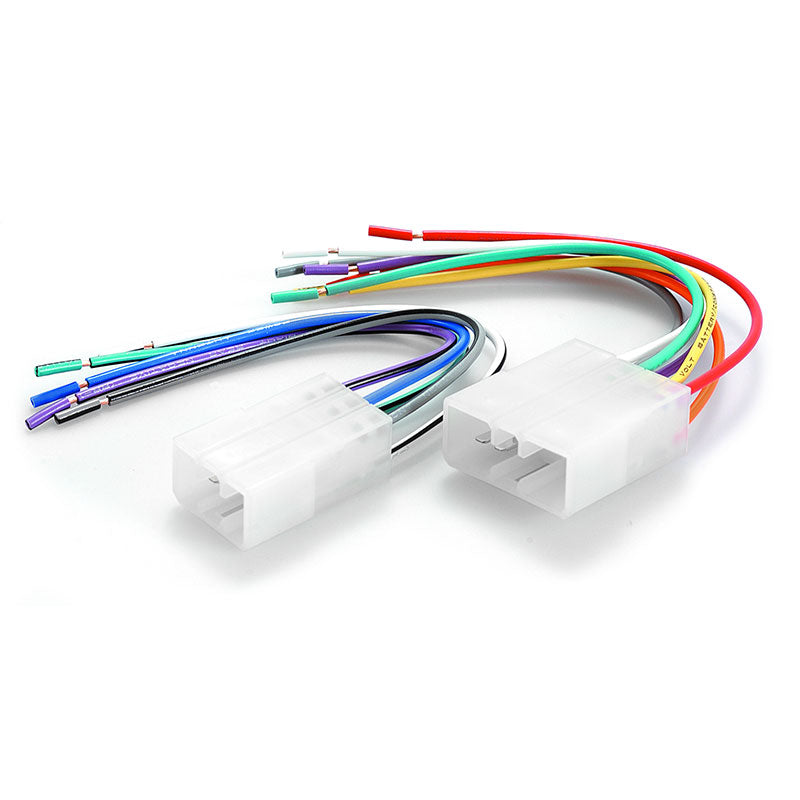

Aerpro AP7010 Primary Harness to Suit Mitsubishi Various Models

SKU: AP7010
Price
$24.99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Aerpro AP7010 wiring harness

Aerpro AP7010 Primary Harness to Suit Mitsubishi Various Models

$24.99

Product features

Allowing for the Installation of an Aftermarket Headunit Without the Need to Remove the Factory Plug from the Vehicle

This Aerpro Harness plugs into your Mitsubishi L300 Express, Lancer, Magna and Pajero early models with 2-plug connector factory headunit wiring system. AP7010 provides colour-coded bare end wires to match standard aftermarket radio wiring looms. Simply match the wire colours between the AP7010 and your aftermarket headunit wiring loom (supplied with the aftermarket headunit) and hard-wire them together. To hard-wire we recommend using a soldering iron and solder (sold separately) and ensure they are insulated correctly once connected.

Notes: Alternatively, Aerpro APP0110 can be used which converts the vehicle plug to ISO connector system.

Features:

  • Connects to vehicle's factory wiring, providing bare end wires
  • No need to remove the factory stereo plug from the vehicle
  • Colour coded wires to match standard aftermarket headunit wiring loom for simple identification and easy installation
  • Simply match the colours from this harness to the aftermarket headunit harness and hard-wire (solder) them together
  • Solder (or crimps) and heat shrink (or insulation tape) required for installation, not included

Specifications:

  • Plug Type:1 X 8 Pin and 1 X 4 Pin
  • Installation Type: Bare Wire, Requires Soldering

Vehicles known to work with this product:

Mitsubishi L300 Express 1980 to 1986 SA-SE Mitsubishi Lancer 1989 to 1996 CA, CB, CC Mitsubishi Magna 1985 to 1991 TM, TN, TP Mitsubishi Pajero 1983 to 2000 NA-NL Mitsubishi Magna 1991 to 1996 TR, TS

FAQ

What is the Aerpro AP7010?

A plug to bare wire harness for early Mitsubishi models with a 2 plug factory head unit loom, one 8 pin and one 4 pin. It lets you fit an aftermarket head unit without cutting the factory plug.

How is it wired?

Match the wire colours to your new head unit loom, then solder and insulate each join. Solder and heat shrink are not included. The Aerpro APP0110 is a plug in ISO option.

Will it fit my car?

The listing names the vehicles it is known to suit. If yours is not on the list, send the F.A.E. team your make, model and year and we will confirm before you order.
